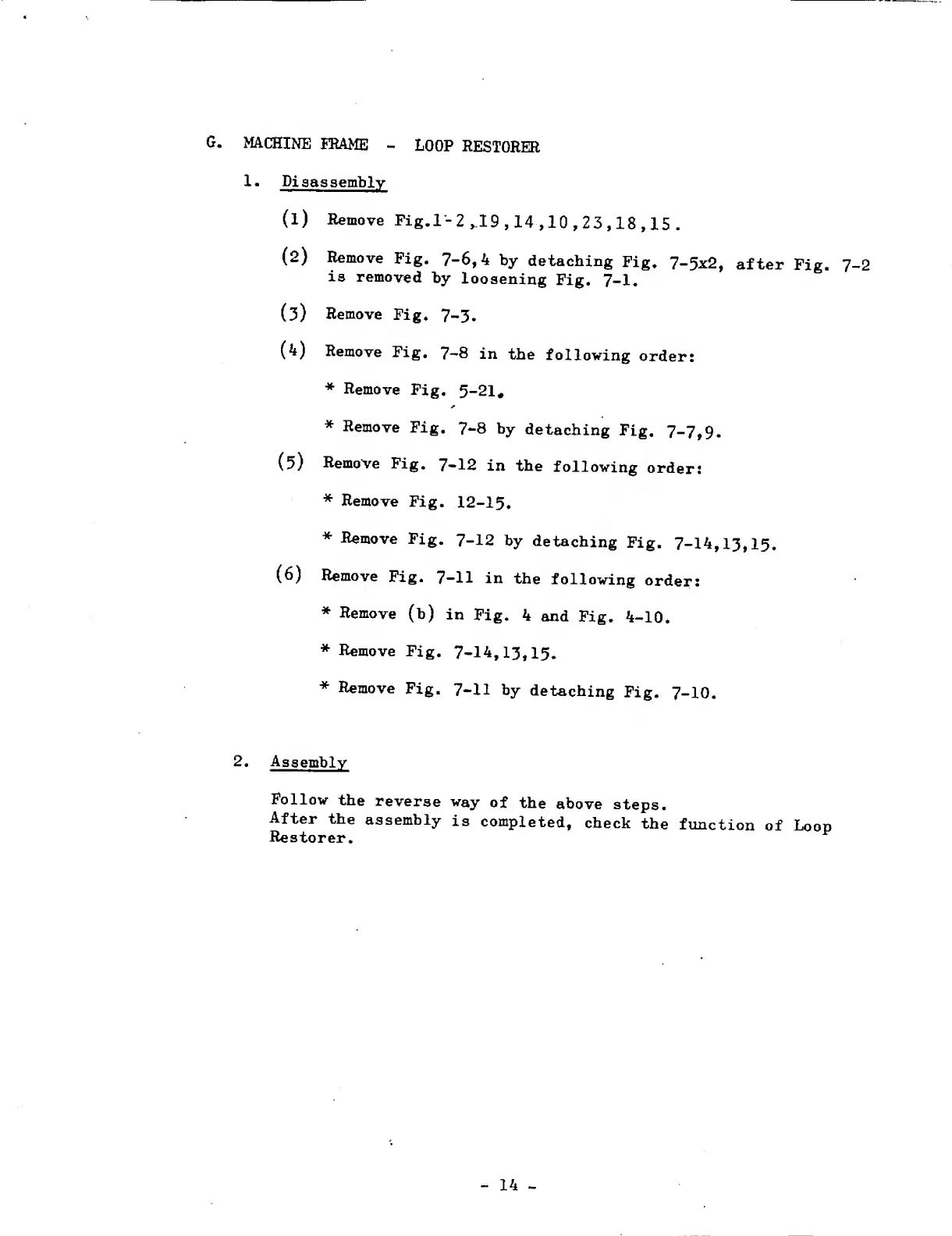

G. MACHINE FRAME - LOOP RESTORER
1 . Pisassembly
(1) Remove Fig.l- 2,19,14,10,2 3,18,15 .
(2) Remove Fig. 7-6,4 by detaching Fig. 7-5x2, after Fig. 7-2
is removed by loosening Fig. 7-1.
(3) Remove Fig. 7-3.
(4) Remove Fig. 7-8 in the following order:
* Remove Fig. 5-21.
* Remove Fig. 7-8 by detaching Fig. 7-7,9.
(5) Remove Fig. 7-12 in the following order:
* Remove Fig. 12-15.
* Remove Fig. 7-12 by detaching Fig. 7-14,13,15.
(6) Remove Fig. 7-11 in the following order:
* Remove (b) in Fig. 4 and Fig. 4-10.
* Remove Fig. 7-14,13,15.
* Remove Fig. 7-11 by detaching Fig. 7-10.
2 . Assembly
Follow the reverse way of the above steps.
After the assembly is completed, check the function of Loop
Restorer.
