Elmo 16-CL - Page 17

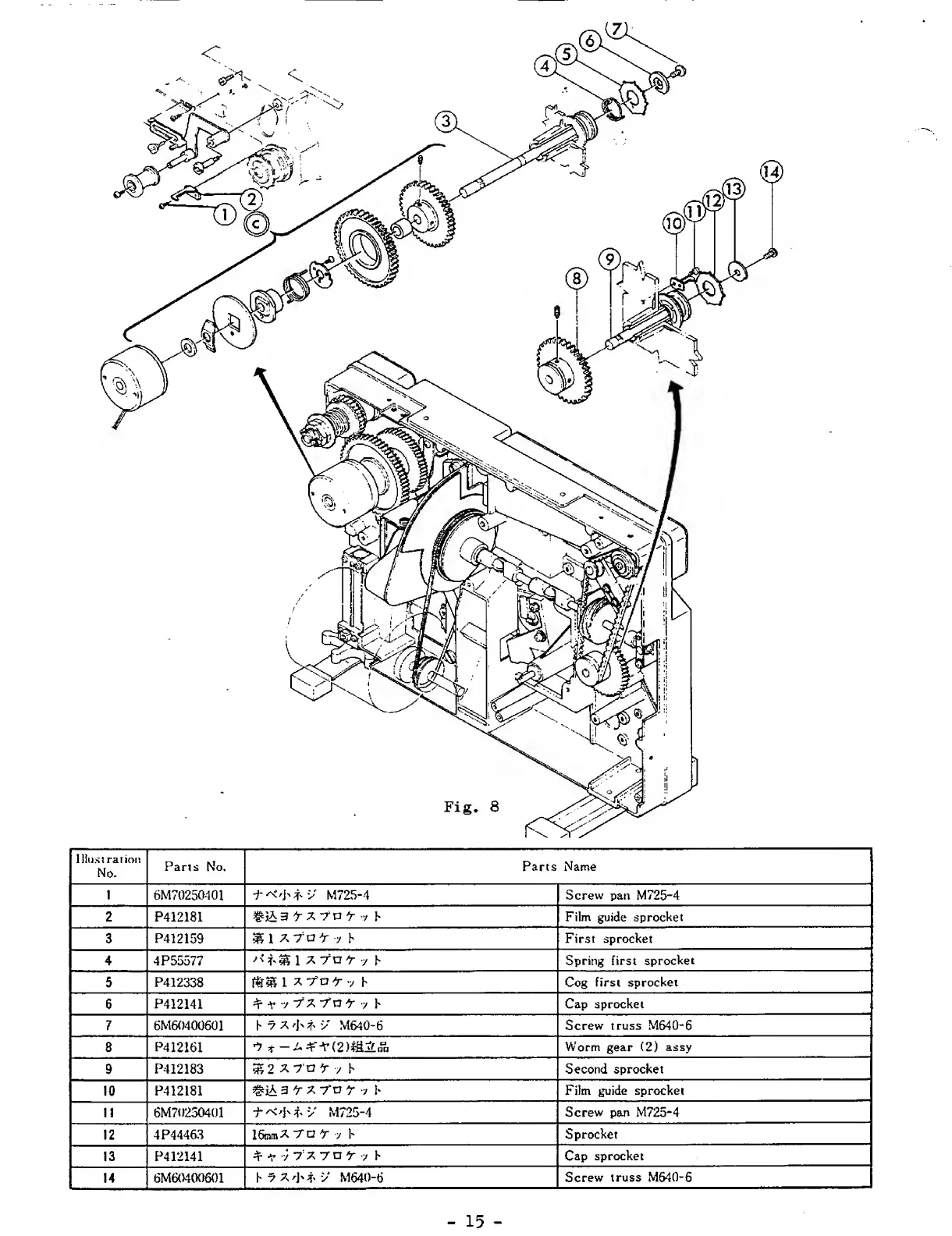

1 Must ration
No.
Parts No. Parts Name
1
6M70250401 M725-4
Screw pan M725-4
2 P412181
; b
Film guide sprocket
3 P412159
11X7 : a * r y b
First sprocket
4 4 P55577
^T'iU7n ' r y b
Spring first sprocket
5 P412338
i * -fa'r v h
Cog first sprocket
6
P412141
^ -v ~f 7, -f a *r 7 b
Cap sprocket
7
6M60400601
b 7X']' 7' y M640-6 Screw truss M64G-6
8 P412161 7? t -2*+' J r(2)M* D a p
Worm gear (2) assy
9
P412183 552X7077 b Second sprocket
10
P412181
#jA 37X7077 b
Film guide sprocket
11
6M7O2504O1
7-^'j'^v M725-4
Screw pan M725-4
12
4P44463
16mmZ7nr y b
Sprocket
13 P412141
^7 7 : X 7 n *r y b
Cap sprocket
14
6M60400601
b 7 Xd'* v M640-6
Screw truss M640-6
