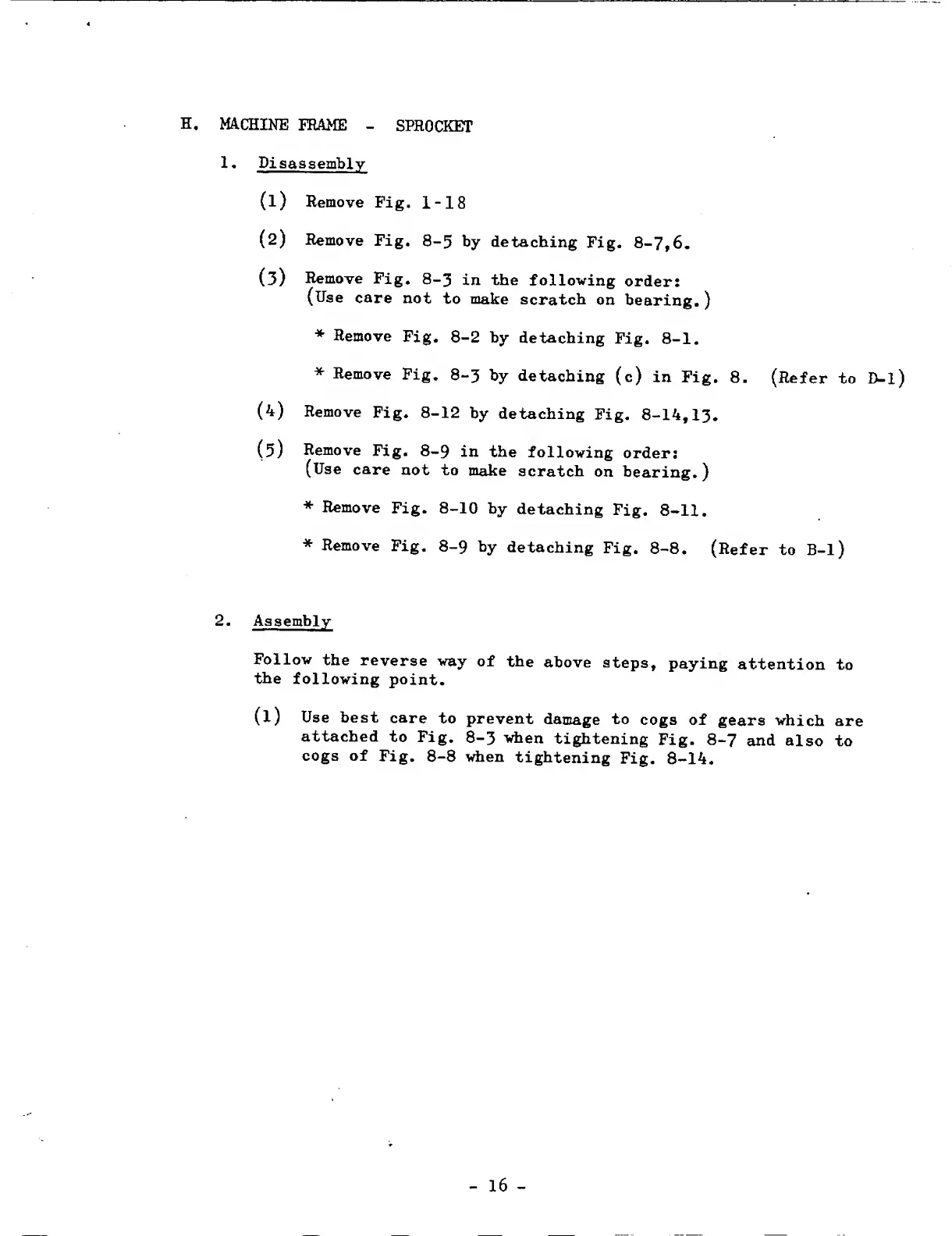

H. MACHINE FRAME
SPROCKET
1. Disassembly
(1) Remove Fig. 1-18
(2) Remove Fig. 8-5 by detaching Fig. 8-7,6.
(3) Remove Fig. 8-3 in the following order:
(Use care not to make scratch on bearing.)
* Remove Fig. 8-2 by detaching Fig. 8-1.
* Remove Fig. 8-3 by detaching (c) in Fig. 8 . (Refer to D-l)
(4) Remove Fig. 8-12 by detaching Fig. 8-14,13.
( 5 ) Remove Fig. 8-9 in the following order:
(Use care not to make scratch on bearing.)
* Remove Fig. 8-10 by detaching Fig. 8-11,
* Remove Fig. 8-9 by detaching Fig. 8-8. (Refer to B-l)
2. Assembly
Follow the reverse way of the above steps, paying attention to
the following point.
(l) Use best care to prevent damage to cogs of gears which are
attached to Fig. 8-3 when tightening Fig. 8-7 and also to
cogs of Fig. 8-8 when tightening Fig. 8-14.
- 16 -
