t
n. AMi’iiii' 1 ] kh

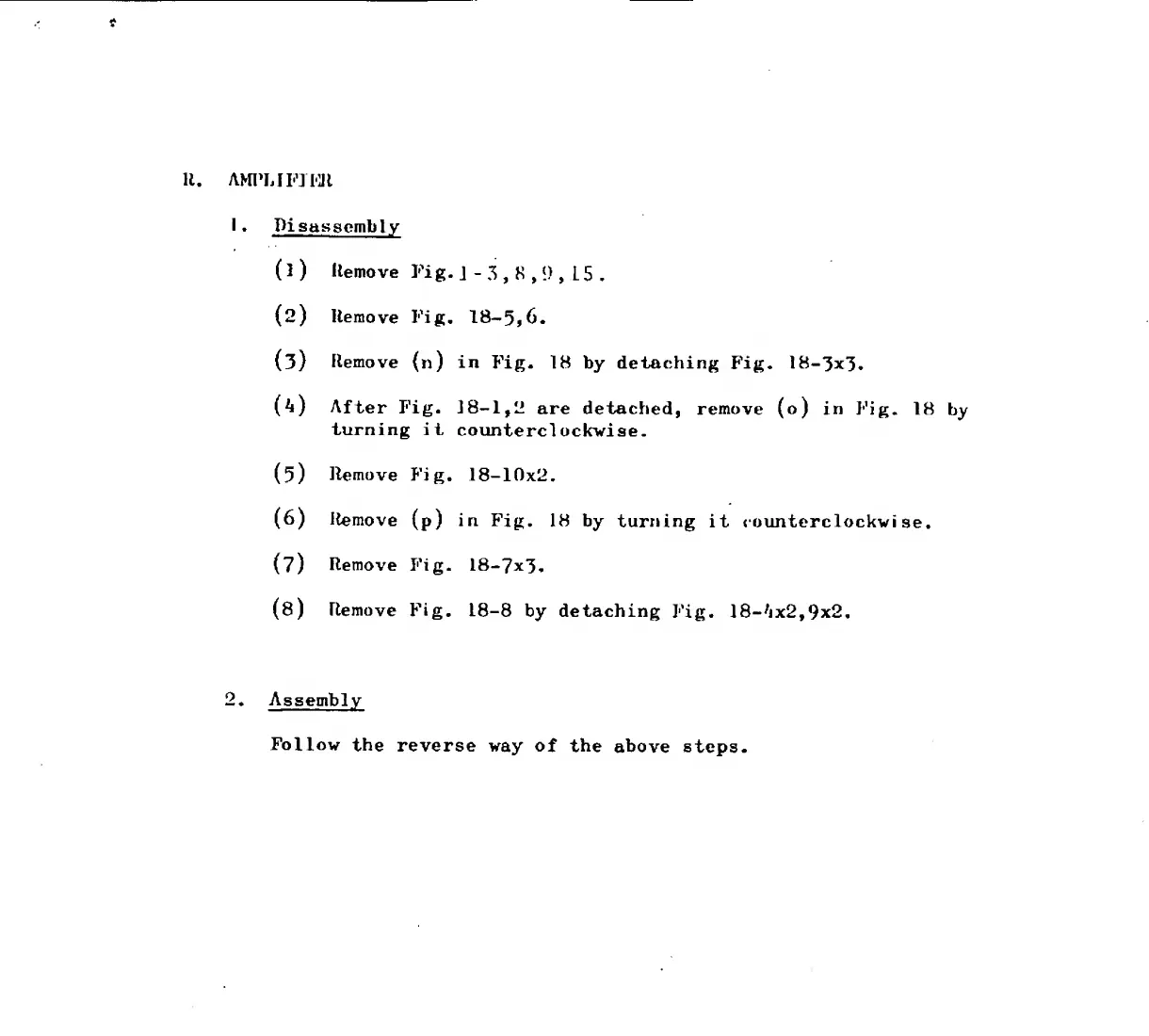

I)i sassembly
0 )
Hemove Fig.
1-3,8,9,15.
(2)
Remove Fig.
18-5,6.
(3)
Remo ve {n)
in Fig. 18 by detaching Fig. 18-3x3.
(M
After Fig.
turning it
18-1,2 are detached, remove (o) in Fig. 18 by
counterclockwise.
(5)
Remove Fig.
18-10x2.
(6)
Remove (p)
in Fig. 18 by turning it counterclockwise.
(7)
Remove Fig.
18-7x3.
(8)
Remove Fig.
18-8 by detaching Fig. 18- ; ix2,9x2.
2. Assembly
Follow the reverse way of the above steps.
