ADJUSTMENT
S. TAKE-UP REEL ARM
Take-up Reel Arm of 16-CL has following two functions, which can be
adjusted at a time with the below-mentioned adjustment.
* Function to take up film.
* Function to give a sufficient back-tension to rewind film safely
and smoothly.

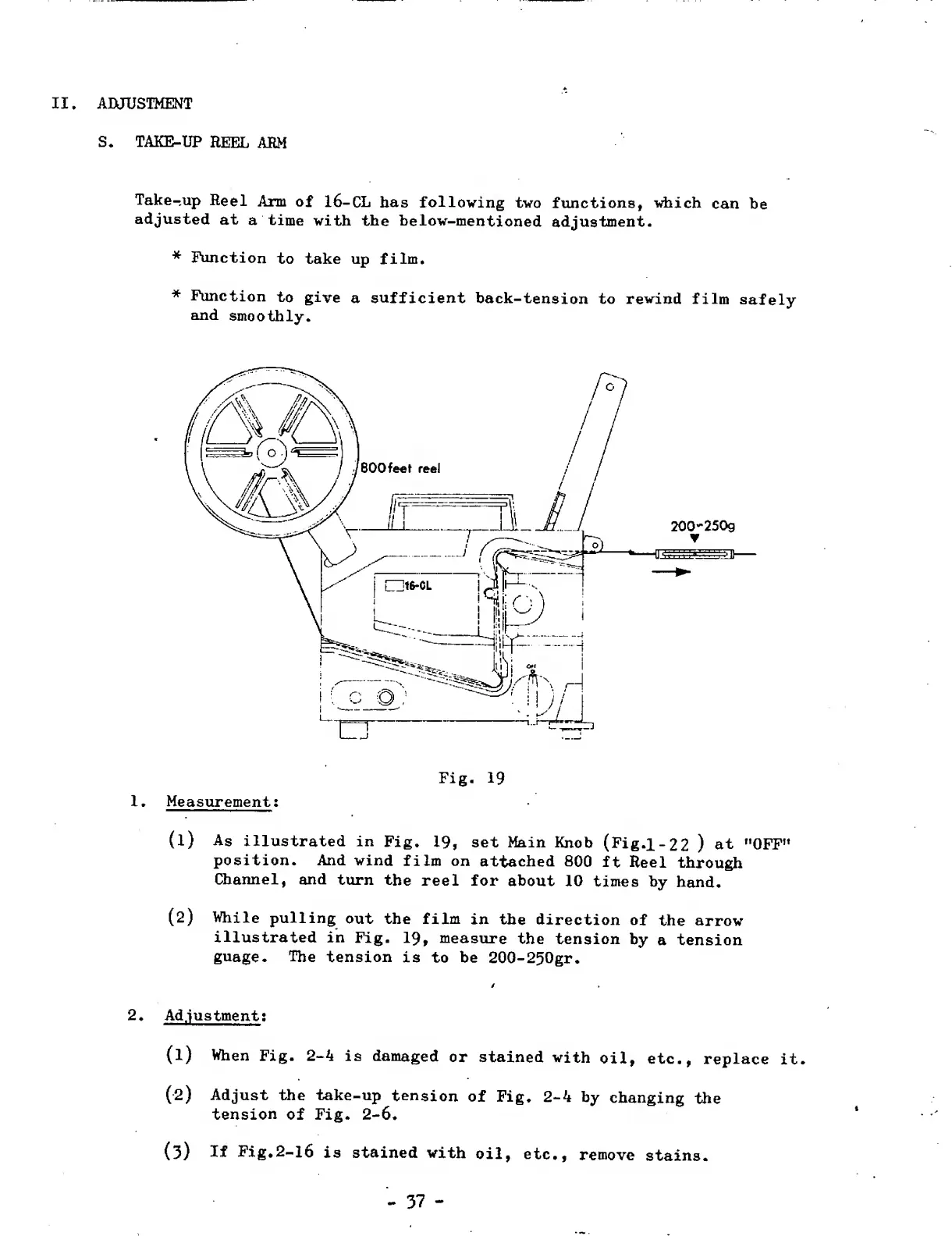

(1) As illustrated in Fig. 19, set Main Knob (Fig.1-22 ) at "OFF”
position. And wind film on attached 800 ft Reel through
Channel, and turn the reel for about 10 times by hand.
( 2 ) While pulling out the film in the direction of the arrow
illustrated in Fig. 19, measure the tension by a tension
guage. The tension is to be 200-250gr.
2. Adjustment :
(1) When Fig. 2-4 is damaged or stained with oil, etc., replace it.
( 2 ) Adjust the take-up tension of Fig. 2-4 by changing the
tension of Fig. 2-6.
( 3 ) If Fig.2-l6 is stained with oil, etc., remove stains.
