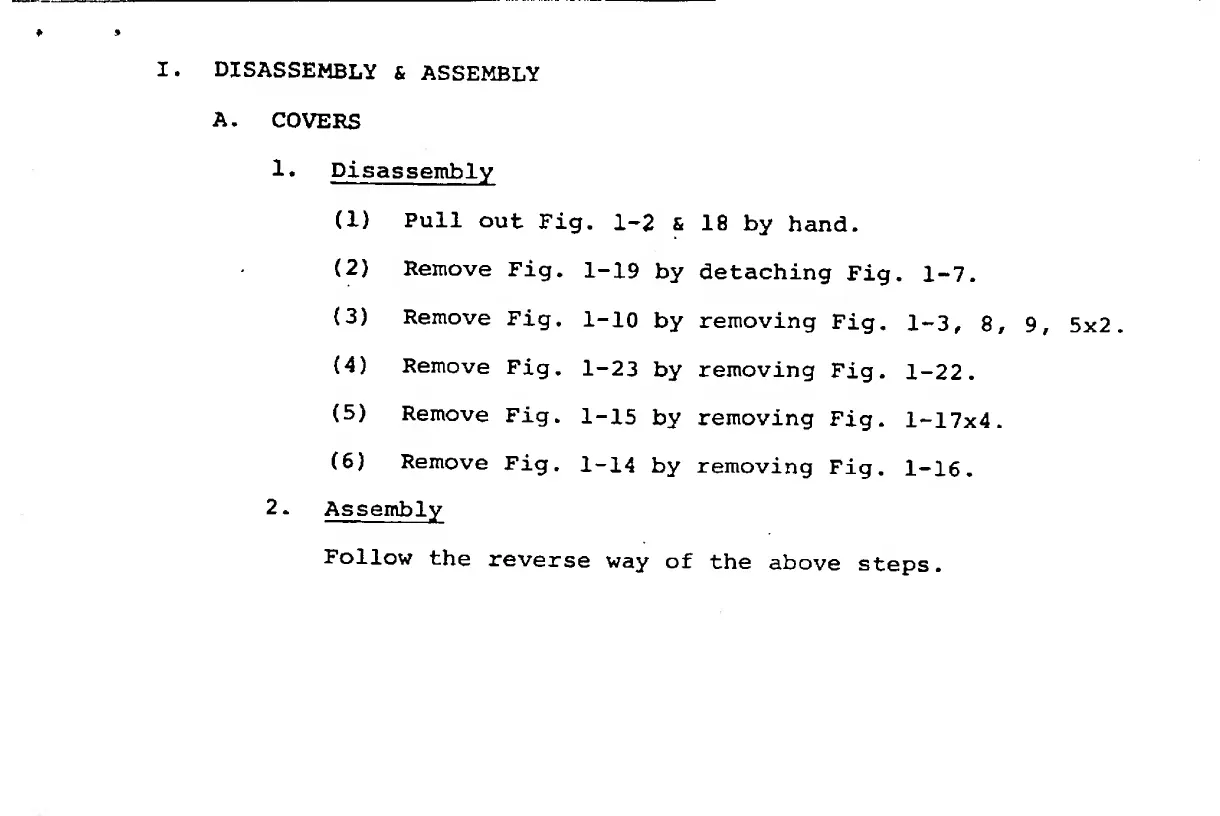

I* DISASSEMBLY & ASSEMBLY
* *
A. COVERS
1. Disassembly
(1) Pull out Fig. 1-2 & 18 by hand.
(2) Remove Fig. 1-19 by detaching Fig. 1-7.
(3) Remove Fig. 1-10 by removing Fig. 1-3, 8, 9, 5x2.
(4) Remove Fig. 1-23 by removing Fig. 1-22.
(5) Remove Fig. 1-15 by removing Fig. 1-17x4.
(6) Remove Fig. 1-14 by removing Fig. 1-16.
2. Assembly
Follow the reverse way of the above steps.
