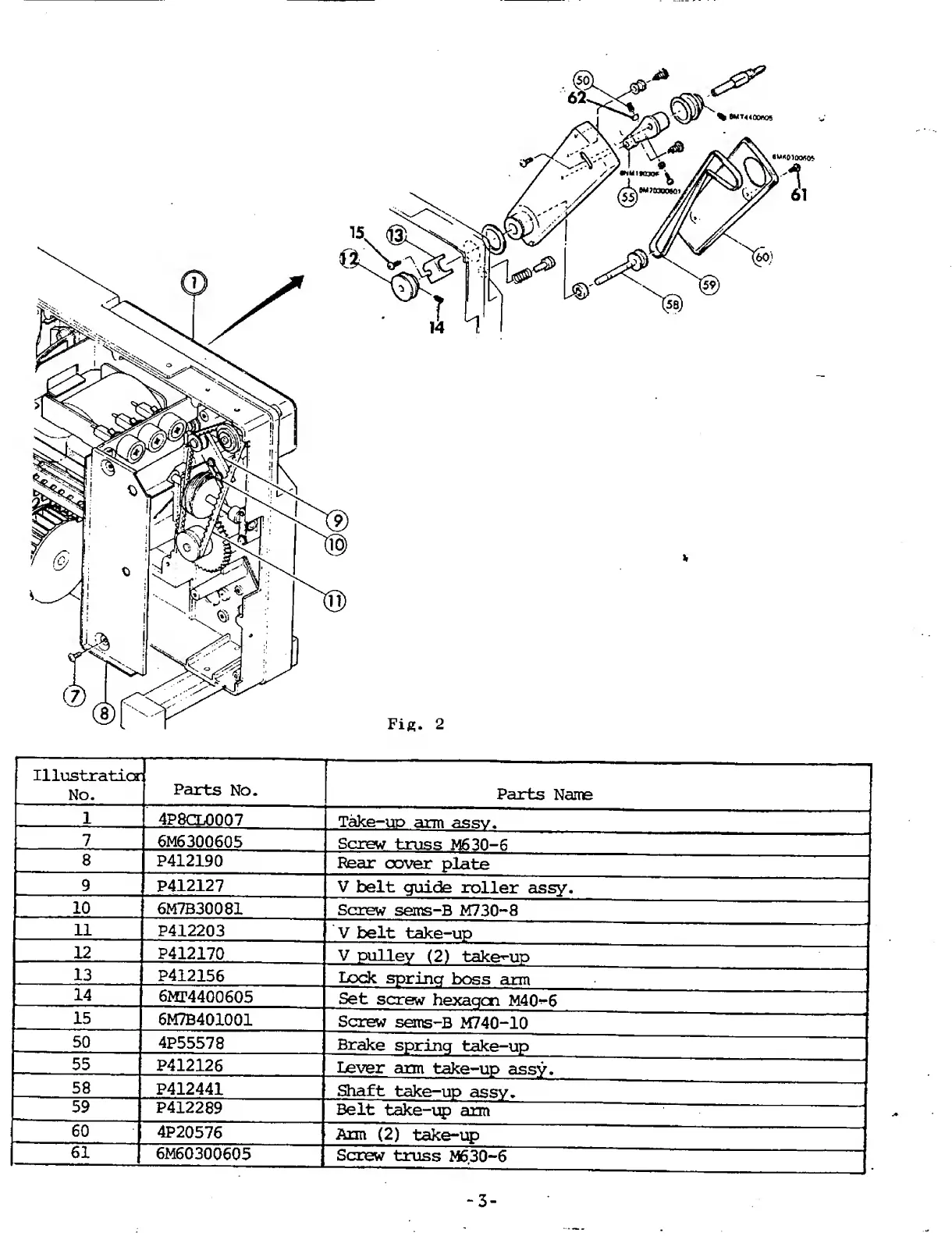

Elmo 16-CL - Page 5

Parts No.
4P8CL0007
6M6300605
P412190
P412127
6M7B30081
P412170
P412156
6MT4400605
6M7B401001
4P55578
P412126
P412441
P412289
4P20576
6M60300605
Parts Name
Take-up arm assv.
Screw truss M630-6
Rear cover plate
V belt guide roller assy.
Screw sems-B M730-8
V belt take-u
V pulley (2) take-u
Lock sprinq boss arm
Set screw hexaqcn M40-6
Screw sems-B M740-10
Brake sprinq take-u
Lever arm take-up assy.
Shaft take-up ass
Belt take-up arm
Ann (2) take-up
Screw truss M630-6
- 3 -
