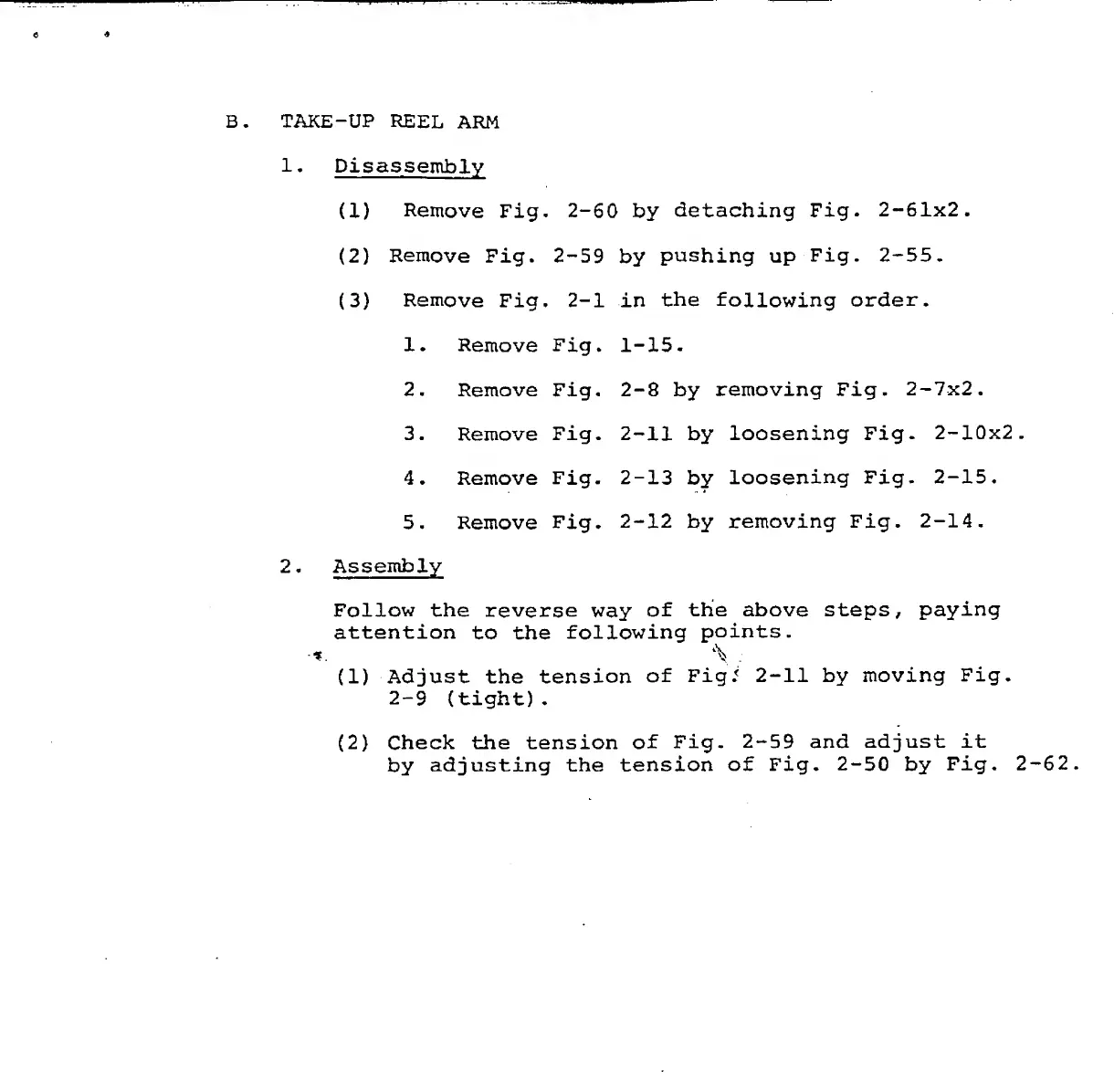

B. TAKE-UP REEL ARM
1. Disassembly
(1) Remove Fig. 2-60 by detaching Fig. 2-61x2.
(2) Remove Fig. 2-59 by pushing up Fig. 2-55.
(3) Remove Fig. 2-1 in the following order.
1. Remove Fig. 1-15.
2. Remove Fig. 2-8 by removing Fig. 2-7x2.
3. Remove Fig. 2-11 by loosening Fig. 2-10x2.
4. Remove Fig. 2-13 by loosening Fig. 2-15.
5. Remove Fig. 2-12 by removing Fig. 2-14.
2. Assembly
Follow the reverse way of the above steps, paying
attention to the following points.
• f. \ .
(1) Adjust the tension of Fig.< 2-11 by moving Fig.
2-9 (tight).
(2) Check the tension of Fig. 2-59 and adjust it
by adjusting the tension of Fig. 2-50 by Fig. 2-62.
