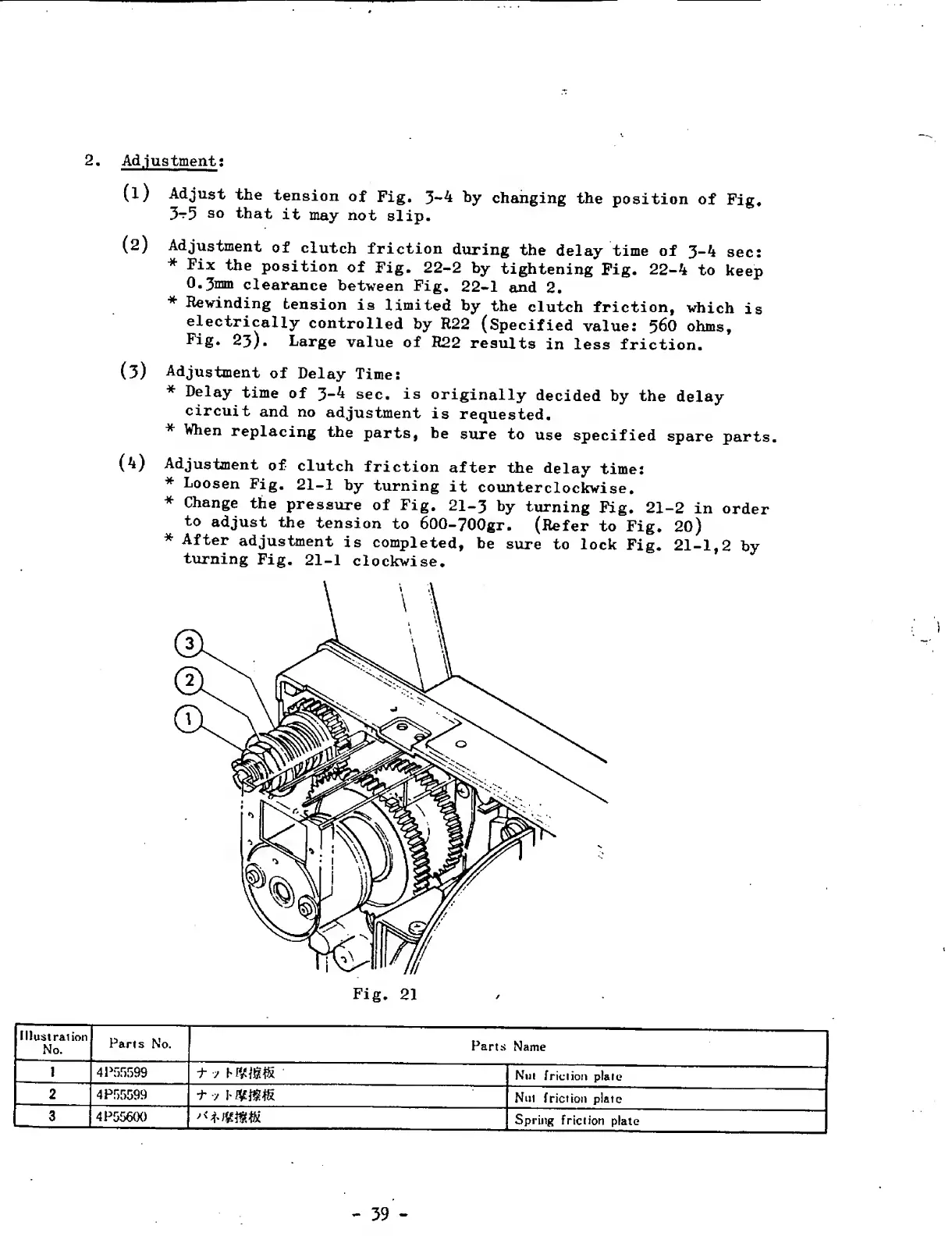

2.
Adjustment;
(1)
Adjust
the
tension
of
Fig.
3-4
by
changing
the
position
of
Fig.
3-5
so
that
it
may
not
slip.
(2)
Adjustment
of
clutch
friction
during
the
delay
time
of
3-4
sec;
*
Fix
the
position
of
Fig.
22-2
by
tightening
Fig.
22-4
to
keep
0.3mm
clearance
between
Fig.
22-1
and
2.
*
Rewinding
tension
is
limited
by
the
clutch
friction,
which
is
electrically
controlled
by
R22
(Specified
value;
560
ohms.
Fig.
23).
Large
value
of
R22
results
in
less
friction.
(3)
Adjustment
of
Delay
Time:
*
Delay
time
of
3-4
sec.
is
originally
decided
by
the
delay
circuit
and
no
adjustment
is
requested,
*
When
replacing
the
parts,
be
sure
to
use
specified
spare
parts.
(4)
Adjustment
of
clutch
friction
after
the
delay
time:
*
Loosen
Fig.
21-1
by
turning
it
counterclockwise.
*
Change
the
pressure
of
Fig.
21-3
by
turning
Fig.
21-2
in
order
to
adjust
the
tension
to
600-700gr.
(Refer
to
Fig.
20}
*
After
adjustment
is
completed,
be
sure
to
lock
Fig.
21-1,2
by
turning
Fig.
21-1
clockwise.
Fig.
21
