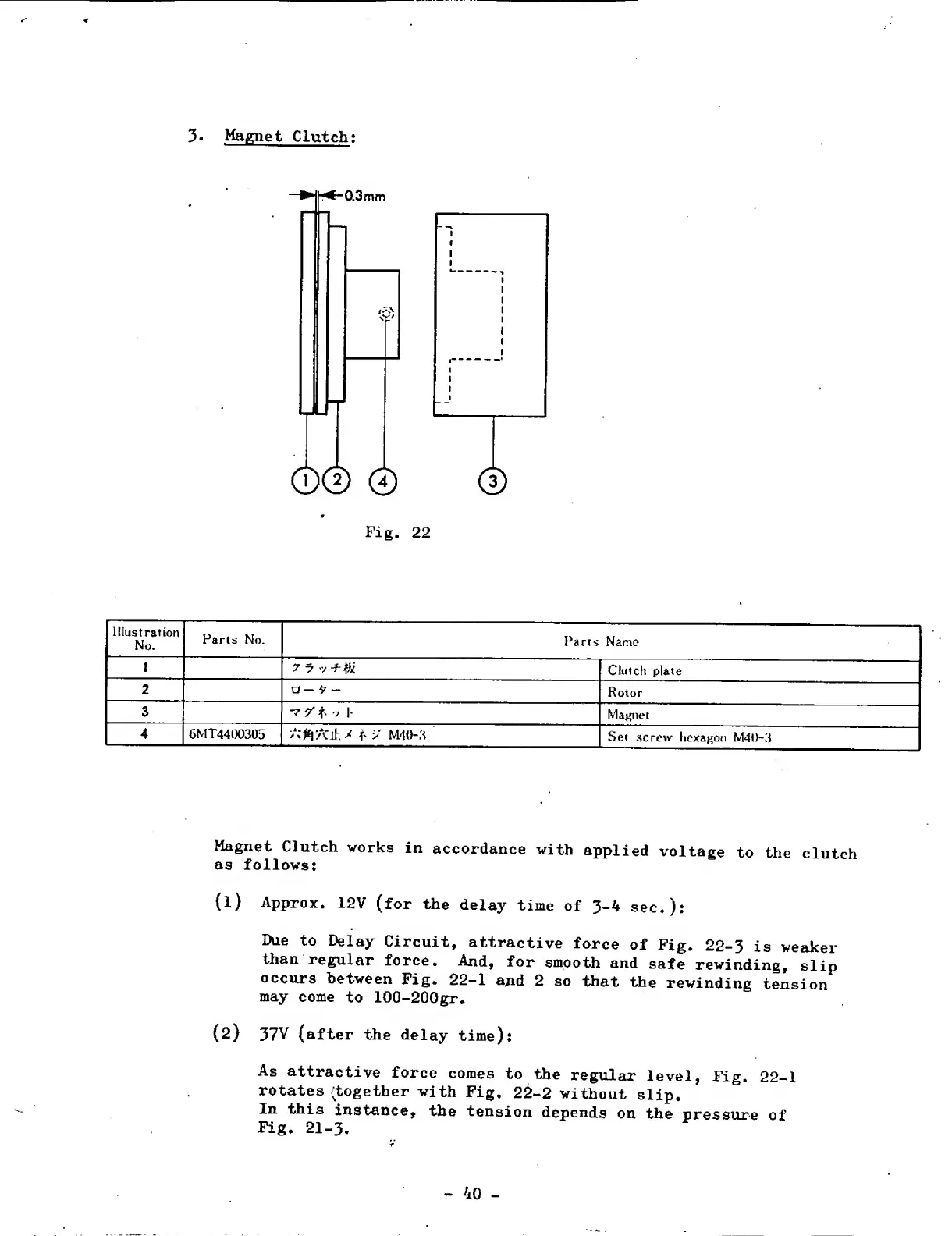

3« Magnet Clutch :
Fig. 22
Illustration
No.
Paris No.
Paris Name
1
7 7 -f~$L
Clutch plate
2
D - 9 -
Rotor
3
v 7't -J 1-
Magnet
4
6MT4400305
A'ft'A'lh 7 f > M40-3
Set screw hexagon M40-3
Magnet Clutch works in accordance with applied voltage to the clutch
as follows:
(1) Approx. 12V (for the delay time of 3-4 sec.).*
Due to Delay Circuit, attractive force of Fig. 22-3 is weaker
than regular force. And, for smooth and safe rewinding, slip
occurs between Fig. 22-1 and 2 so that the rewinding tension
may come to 100-200gr.
(2) 37V (after the delay time):
As attractive force comes to the regular level, Fig. 22-1
rotates (together with Fig. 22-2 without slip.
In this instance, the tension depends on the pressure of
Fig. 21-3.
- 40 -
