Gold Solo Double Twitter Installation Guide
MAN-G-SOLTWIB_160 (Ver. 1.005)
|J11 I/O and Communication Connector|www.elmomc.com
56
8.4.2. Digital Outputs
8.4.2.1. Source PLC Voltage Level Digital Output
Feature Details
Type of output Optically isolated PLC source
Supply output (VDD) 12 V to 30 V (typically 24 V)
Max. output current
I
out
(max) (V
out
= High)
I
out
(max) ≤ 30 mA
Collector Emitter saturation voltage 1 V
T
on
(Time from low to high)
If V
dd
= 24V
< 15 µsec
T
off
(Time from high to Low)
< 250 µsec
R
L
The external R
L
must be selected to limit output
current to no more than 30 mA.
Executable time
0 < T < 250 µsec

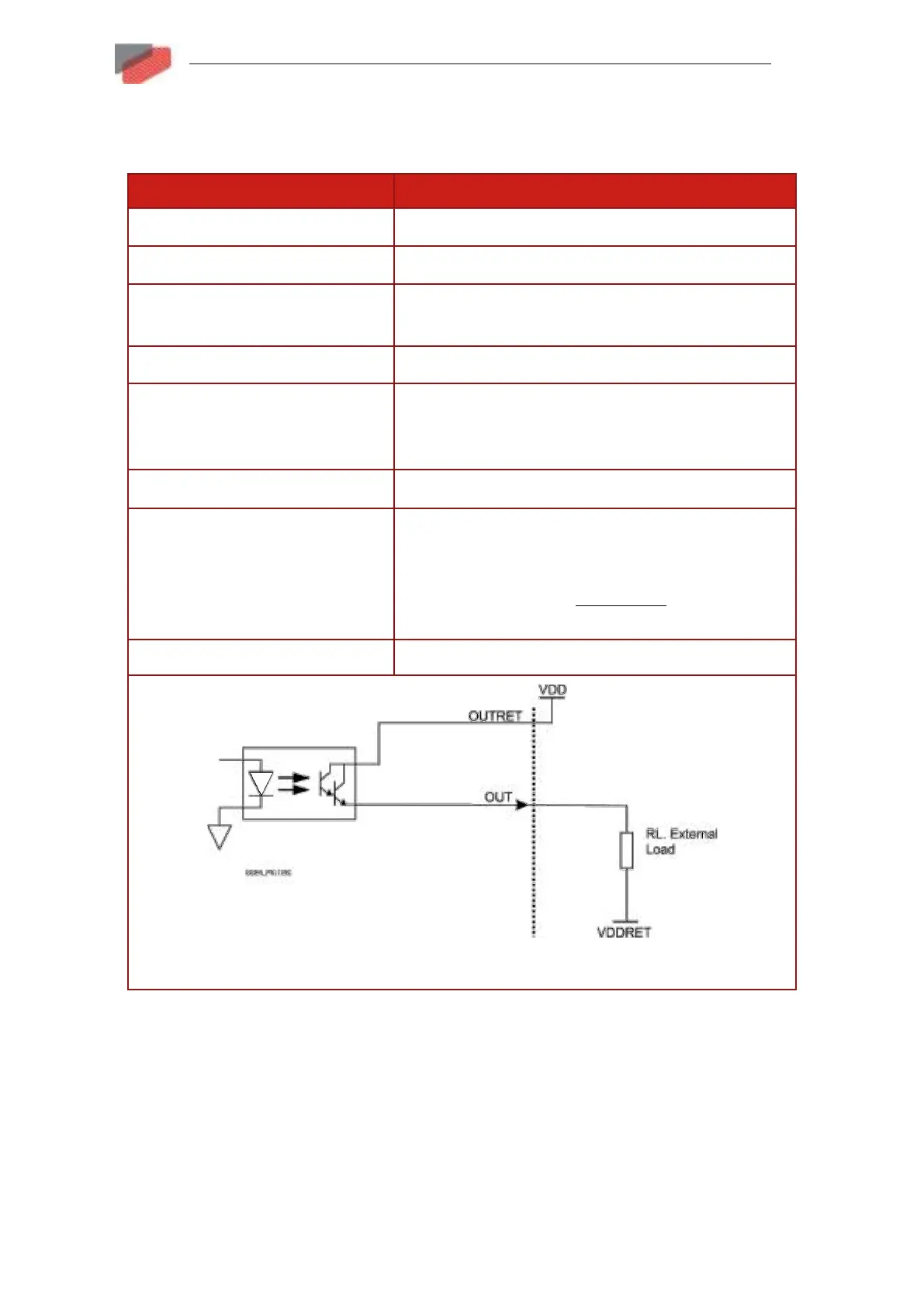

Figure 33: Digital Photodarlington Output Schematic – Source Mode PLC Level
