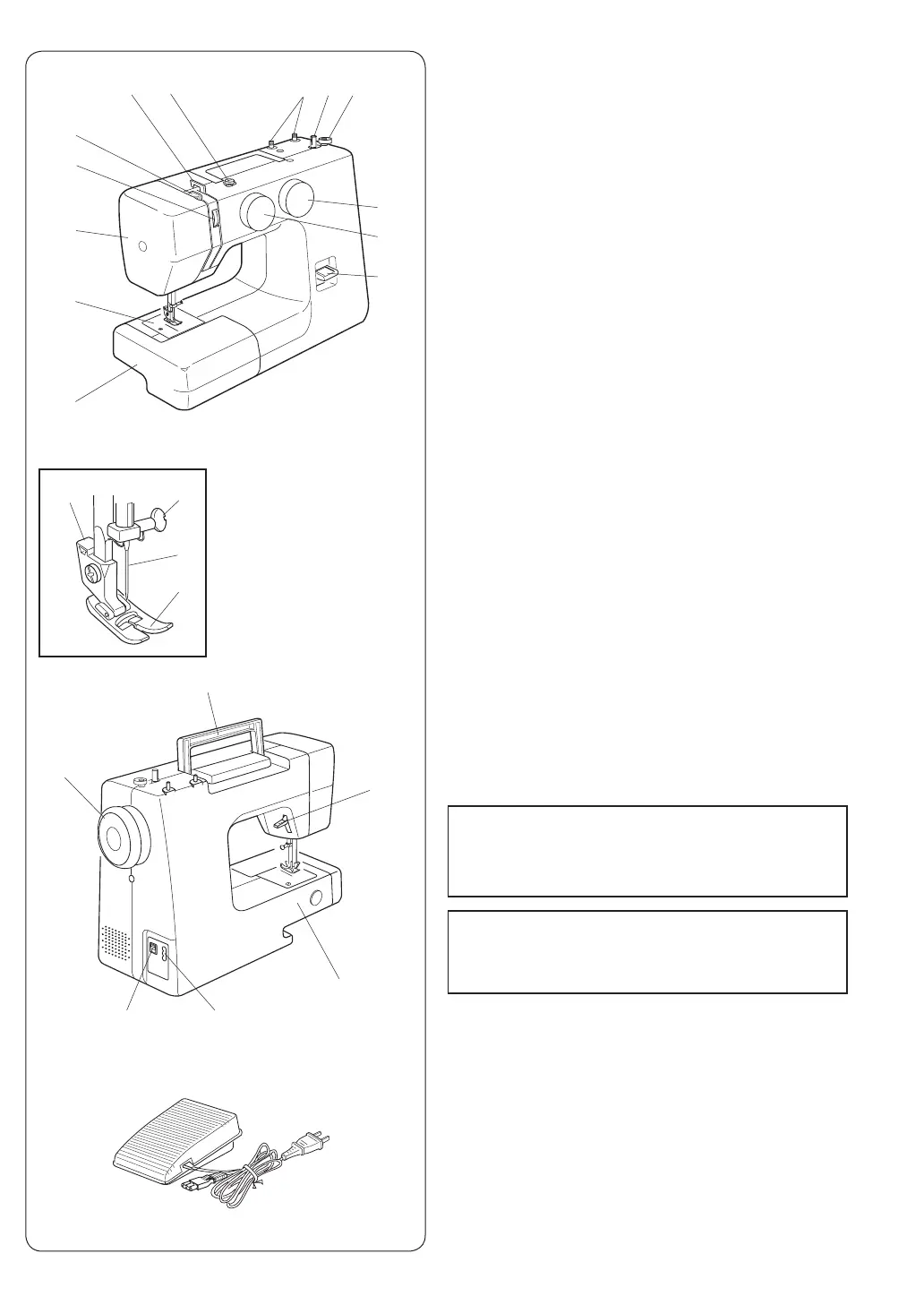

SECTION I. ESSENTIAL PARTS
Name of Parts
q
Reverse stitch button
w
Pattern selector dial
e
Stitch length dial
r
Bobbin winder stopper
t
Bobbin winder spindle
y
Spool pins
u
Bobbin winder thread guide
i
Thread guide
o
Thread take-up lever
!0
Thread tension dial
!1
Face cover
!2
Needle plate
!3
Extension table
!4
Presser foot holder
!5
Needle clamp
!6
Needle
!7
Presser foot
!8
Carrying handle
!9
Handwheel
@0
Power switch
@1
Machine socket
@2
Free arm
@3
Presser foot lifter
@4
Foot control
!2
!3
e
NOTE:
To carry the sewing machine, hold the carrying
handle with your hand, and support the sewing
machine with the other hand.
NOTE:
Sewing machine design and specifications are
subject to change without prior notice.
