Magnetic Stripe Reader (MSR) Functionality (Optional)
The MSR shall operate in keyboard mode.
Capable of reading 3 tracks.
Security level and Encryption function: OFF
USB On The Go (OTG)

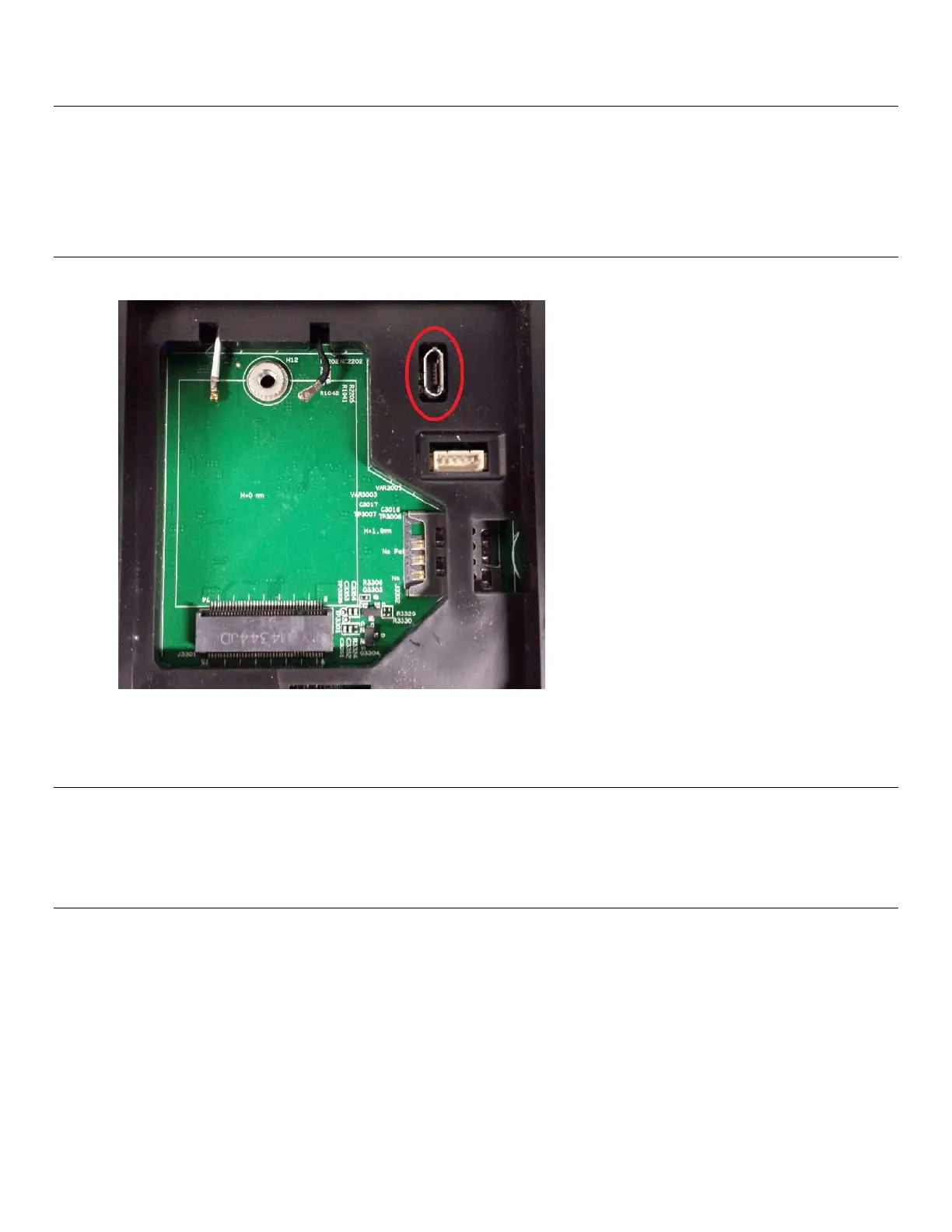

USB OTG is supported via the micro-USB connector located in the following position.
Note: Improper use of this connector can result in a broken connector.
HDMI Output
The HDMI(1920x1080P) output supports Elo monitor
ET7001L/ET4201L/ET3201L/ET4243L/ET3243L.
General Purpose Input/Output (GPIO) Support
The i-Series supports a GPIO which can be used under the following conditions:
Max Voltage: 5V
Max Current: 200mA
There are two input connections and one output connection.
Pin 1 5 Volt output connection
Pin 2 Input connection 1
