User Manual: i-Series Interactive Signage
SW602242 Rev C, Page 16 of 35
Pin 3 Input connection 2
Pin 4 and Pin 5 are tied to ground
Elo has a cable (PN # E086398) which extends this GPIO connection so that it is easy for
users to connect their own peripherals. This cable can be found on the Elo website.

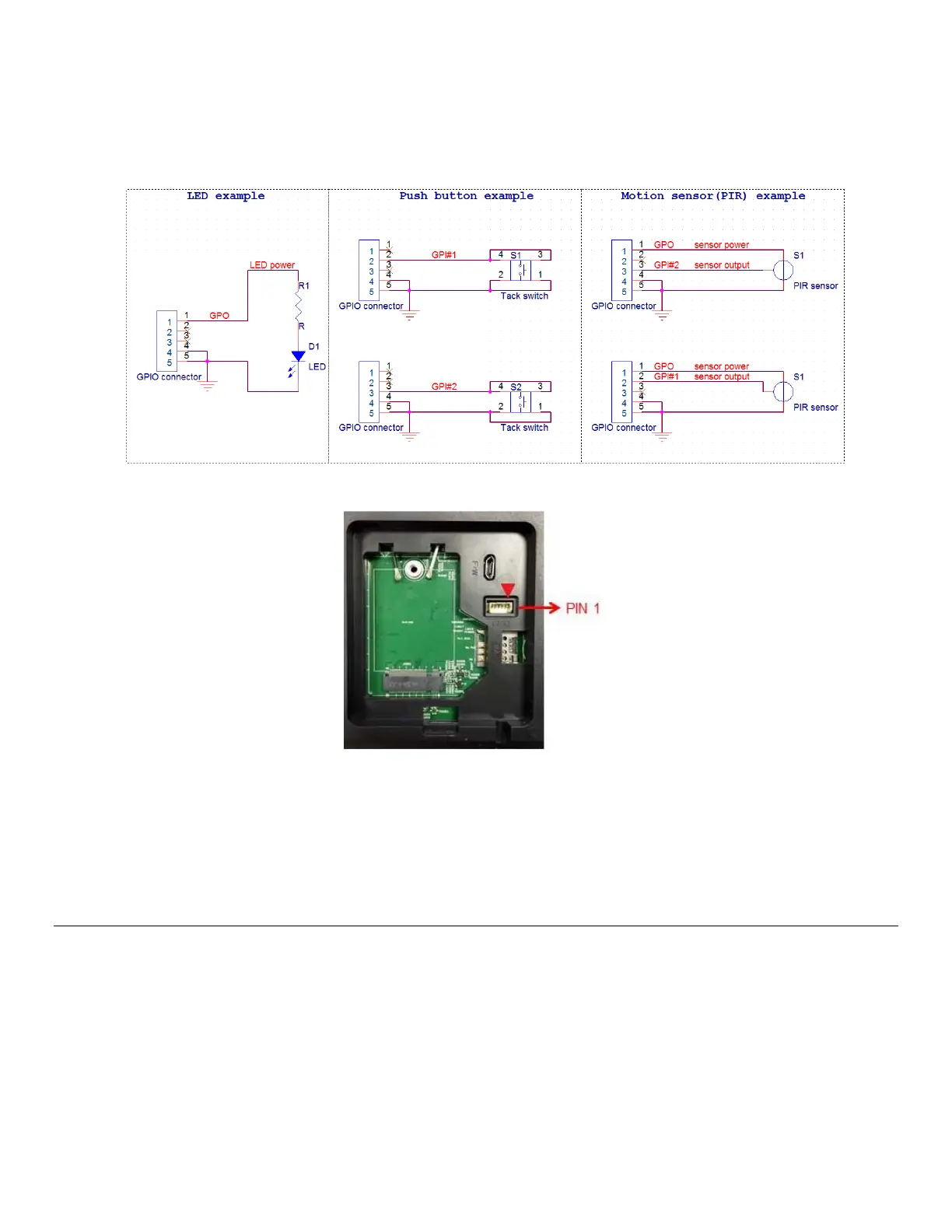

Example Circuit
GPIO PIN1
i-Series expansion module (Optional)
The i-Series expansion module supports the following additions:
1. USB2.0 x2
2. Powered USB x1 (1.5A) / 24V power
3. Powered USB x1 (2.3A) /12V power
4. RS232 x1(RJ45 to DB9 cable kit).
