2-17

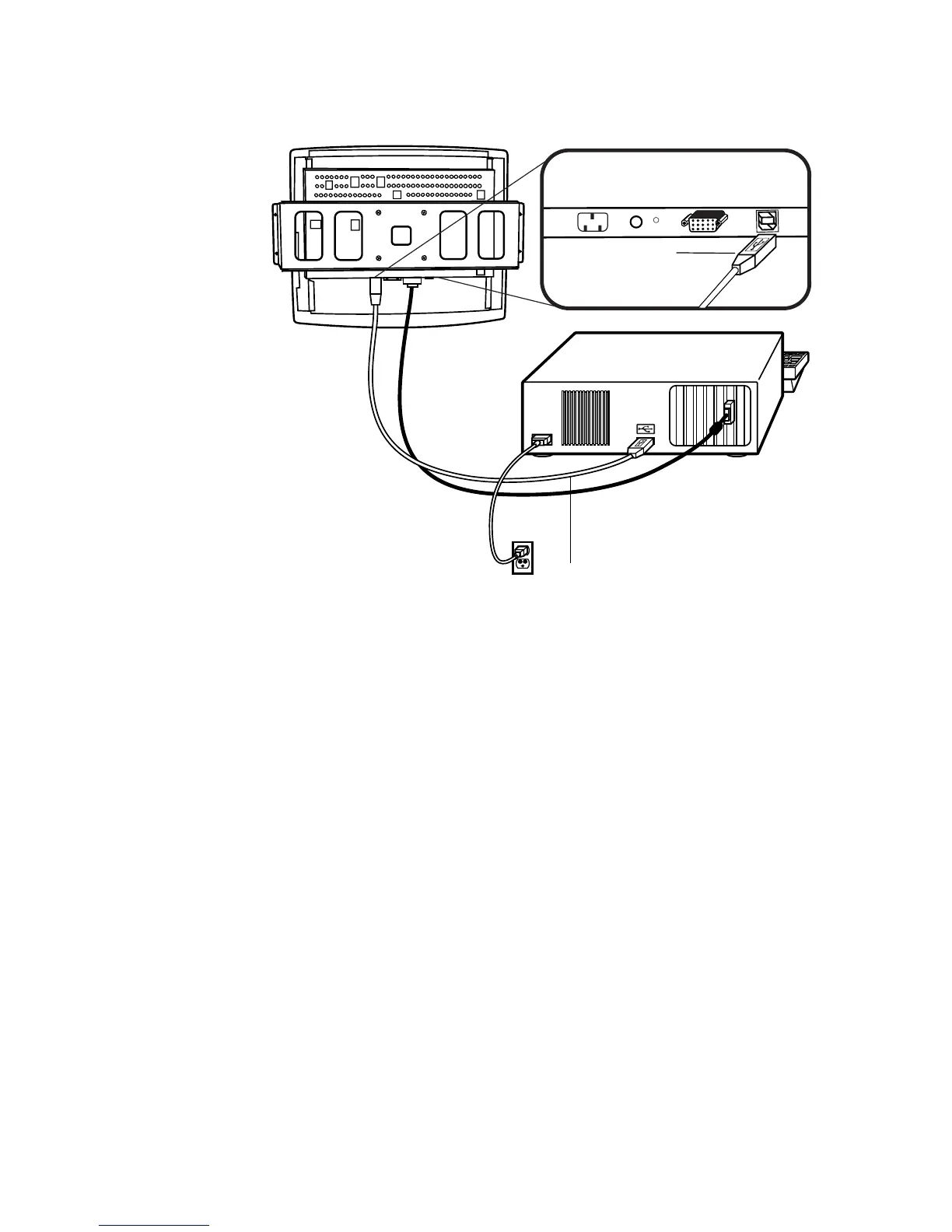

Connecting the USB Touchscreen Cable
• Connect the USB touchscreen cable to the USB touchscreen connector on the
touchmonitor.
• Connect the other end of the USB cable to your PC.
• The touchscreen cable connectors should fit snugly into the connectors on
your touchmonitor and PC.
Connections on underside
USB
touchscreen
cable
USB
touchscreen
connector
