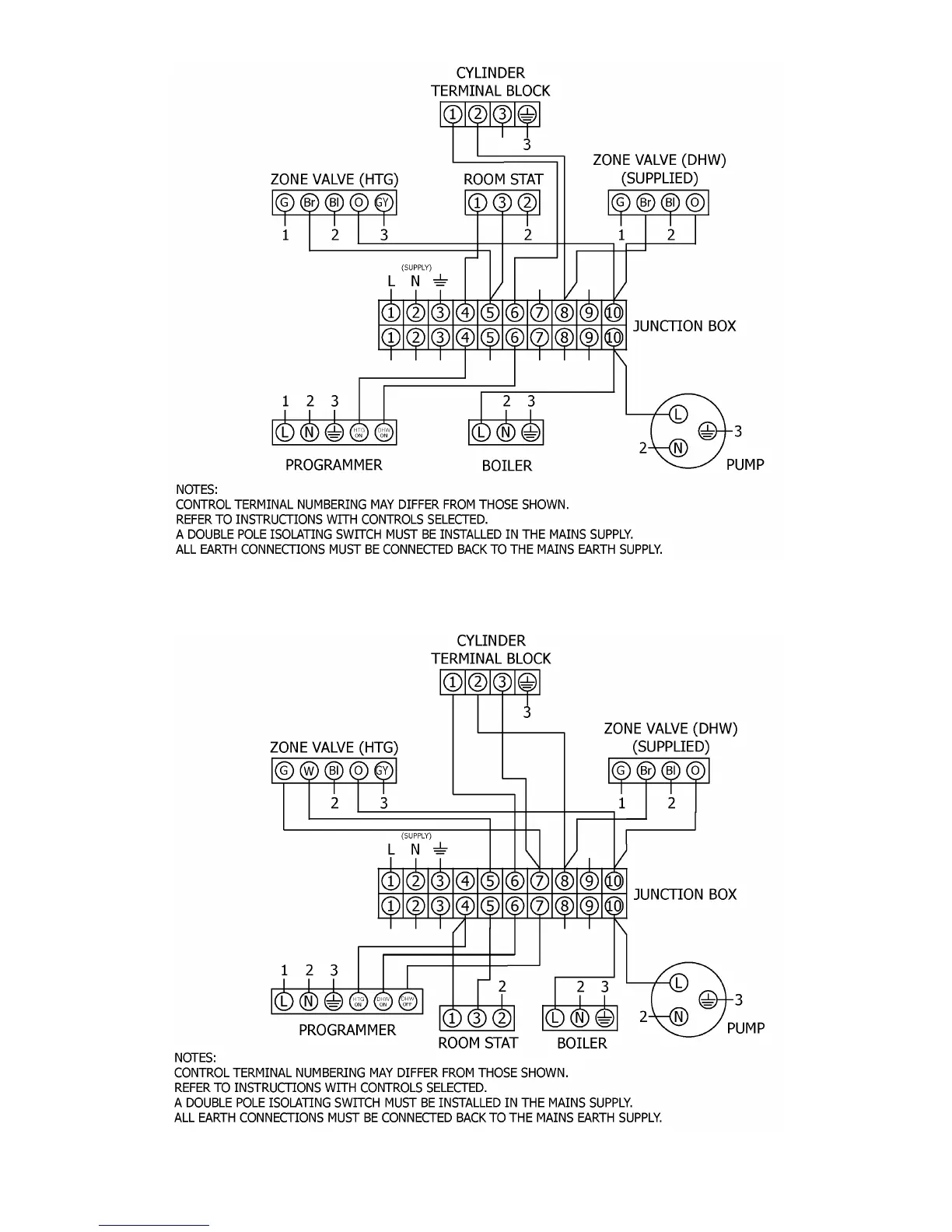

Fig.9:Schematicwiringdiagram-Basic2x2portvalvesystem
Fig.10:Schematicwiringdiagram-3portmidpositionvalvesystem.N.B.Mustbeusedinconjunctionwith2port
zonevalvesupplied
