Item
Band
AM30%400Hz
FM100%(40KHz Dev.)400Hz
TUNER MODULE
󰼿
󰼿
ModulationModulation frequency
- 3 -
MEASUREMENTS AND ADJUSTMENTS
ALIGNMENT INSTRUCTIONS
EQUIPMENT NEEDED
AM Signal Generator
FM Signal Generator
Oscilloscope
VTVM(AC,DC)
Test loop antenna(AM Adjustment)
Dummy antenna(FM Adjustment)
IMPORTANT
1.Check power-source voltage.
2.Set the function switch to band aligned.
3.Keep the signal input as low as possible to adjust accurately.
4.Modulation and modulation frequency.

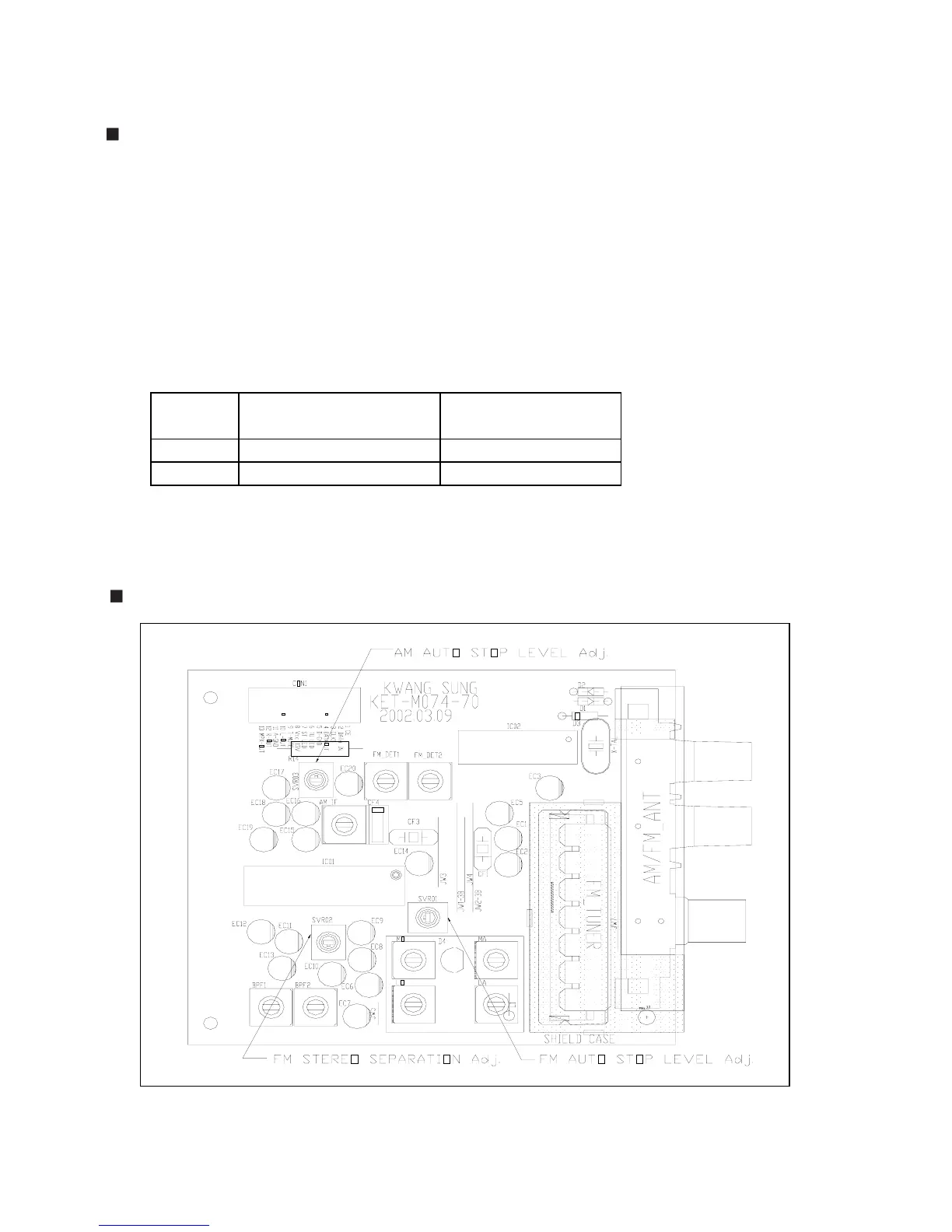

ADJUSTMENT POINT
KST-M9014MS1(0)-70
