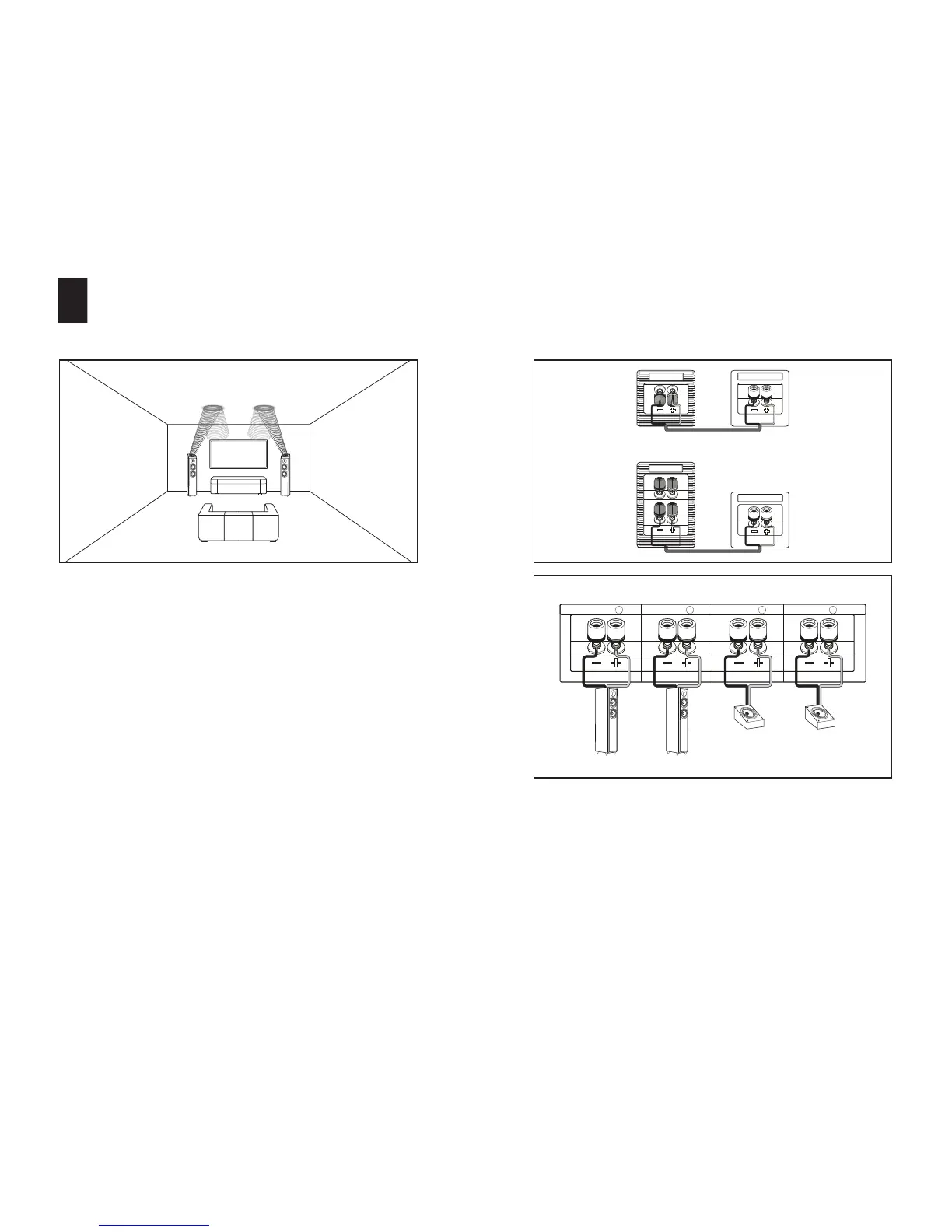

FRONT SETUP OF MONITOR ATM AND IX CONNECTIONS FOR FRONT MONITOR ATM AND IX
Firstly, position your Monitor IX speakers in your room. Space the speakers
25-30cm away from the walls, and turn them gradually towards your listening
area. Then place the Monitor ATM on the oorstanding speakers.
MONITOR IX
MONITOR ATM
HEIGHT AMPLIFIER
FRONT AMPLIFIER
FRONT R FRONT L HEIGHT R HEIGHT L
Connect the inputs of your Monitor ATM to the FRONT HEIGHT
(or PRESENCE) terminals of your amplier. Then, connect the MAIN inputs of
your Monitor IX to the FRONT (or MAIN) terminals of your amplier.
Connect the pole “+” of the speaker (Red) to the pole “+” of the amplier, then
the pole “-” of the speaker (Black) to the pole “-” of the amplier. Please take
care to respect the left and right channels.
