EM TEST UCS 500 Series
Operating Manual V 3.05 17 / 57

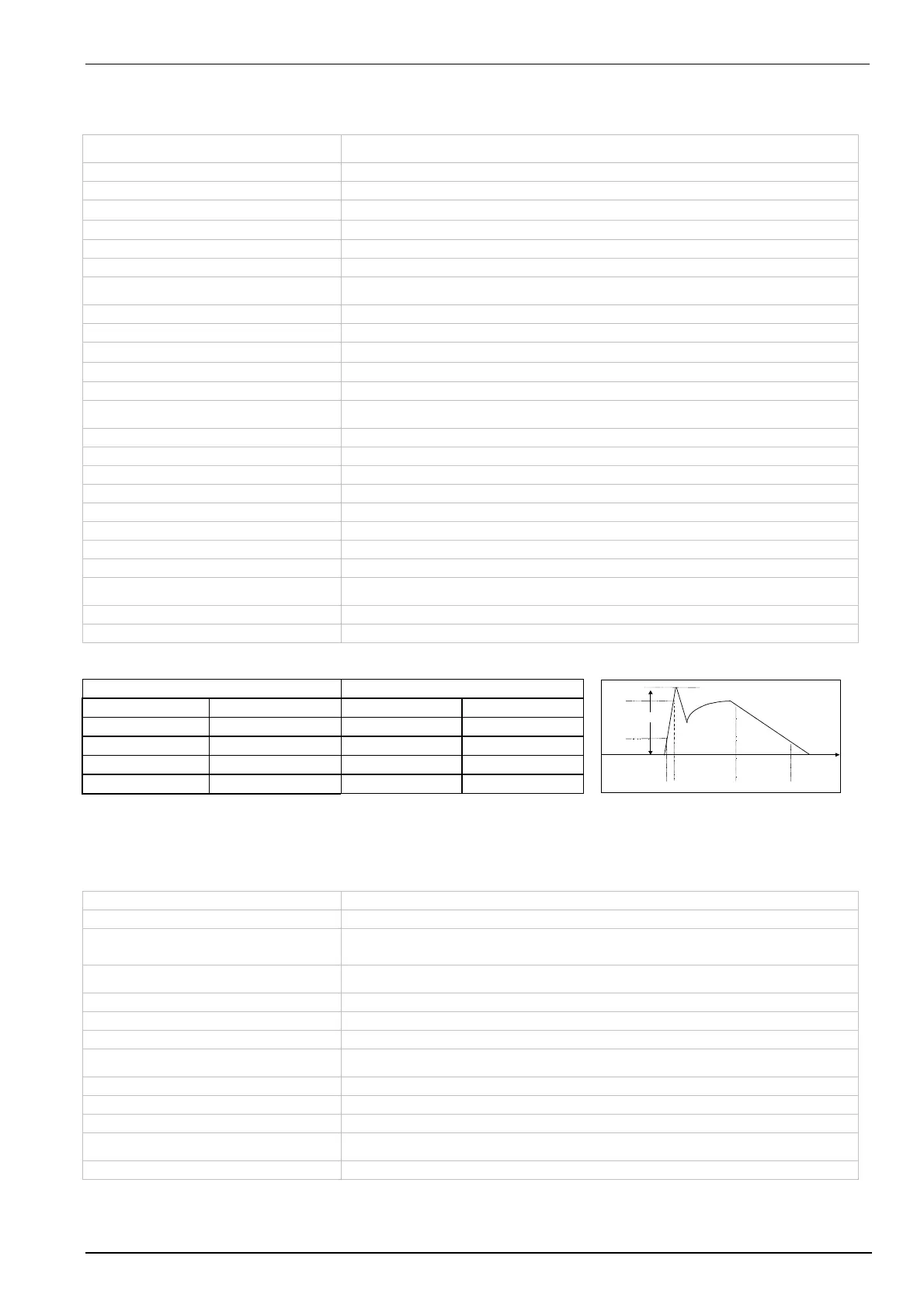

6.4. ESD as per EN 61000-4-2, EN 61000-6-1/2, IEC 61000-4-2, IEC 801-2
Air discharge mode
Discharge unit type P18
Test voltage 1 – 16.5kV
Discharge capacitor
150pF ±10%
Discharge resistor
330Ω ±10%
Polarity positive/negative
Holding time > 5s
Contact discharge mode
Discharge unit type P18
Test voltage 1 - 8kV
Discharge capacitor
150pF ±10%
Discharge resistor
330Ω ±10%
Polarity positive/negative
Trigger
Single Single discharge
Continue Multiple discharges, controlled by the operator
Auto Automatic discharge controlled by the mainframe
Repetition rate max 10Hz, free selectable
Discharge mode Air- or contact discharge selectable
Preselector counter Preselection of the desired numbers of discharges
Beeper ON/Off acoustical signal at each discharge
Contact discharge and single air discharges
Test routines
Quick Start Immediate start, all parameters adjustable during a running test
Standard Test Routine as per IEC 61000-4-2
Rise time of the discharge current 0.7ns - 1.0ns
Test voltage First peak value Current at 30ns Current at 60ns
2 kV 7.5 A 4.0 A 2.0 A
4 kV 15.0 A 8.0 A 4.0 A
6 kV 22.5 A 12.0 A 6.0 A
8 kV 30.0 A 16.0 A 8.0 A
Ipk
10%
90%
tr
t
I 30ns I 60ns
6.5. General Specifications
Mains supply 230V/115V, 50/60Hz
Power consumption 110W
Fuse 230V : 2 AT slow blow
115V : 4 AT slow blow
Safety
Safety circuit External interlock capability
Warning lamp voltage free contact max. 250V 5A
Design per IEC 1010, EN 61010
Interfaces
Serial RS 232 1200 - 19200 Baud
Parallel IEEE Address 1-31
Analog output 0-10V DC, to control an external power supply
Dimensions
19" / 3 HU
Weight app. 25 kg
=> Not relevant data for the standards can be changed by the manufacturer <=
