EM TEST UCS 500 Series
Operating Manual V 3.05 18 / 57
6.6. UCS 500 upgrade version
Upgraded UCS 500 have the same specifications as UCS 500 M4 exception the following items.

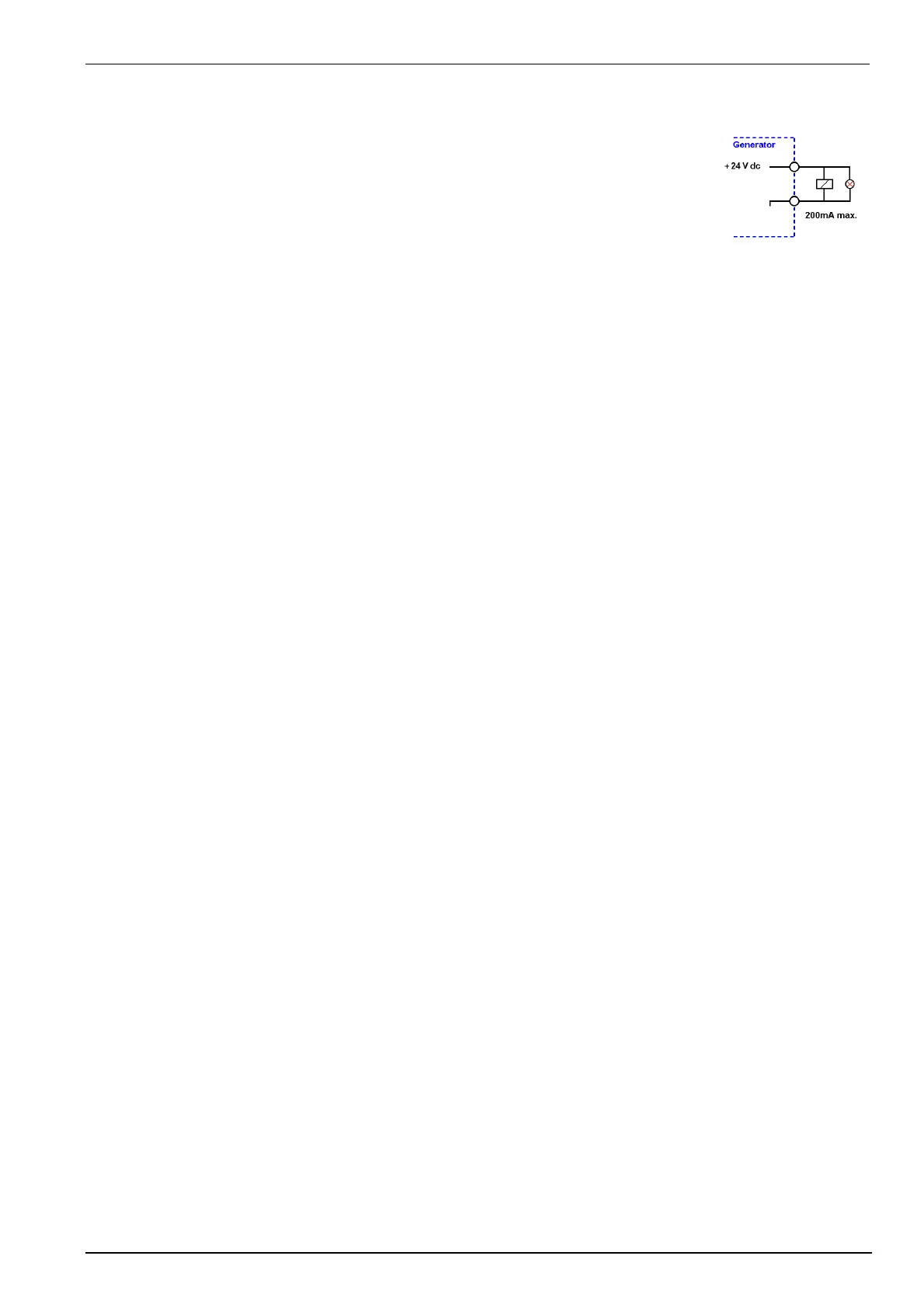

Warning lamp
The warning lamp connection is not potential free like the other UCS models. The power
supply is delivered by the internal 24V supply.
EM Test recommends to use a relays for control the external powered warning lamps.
Voltage : 24V dc
Max. load : 200mA
Synchonisation
The phase synchronisation is refered to the default channel.
ESD Option
Construction-conditioned the ESD option is not retrofitable.
Inrush current
The upgrade version has no inrush current function.
