EM TEST UCS 500Mx - Power Fail: Quick Start; Quick Start for Power Fail Tests

EM TEST UCS 500 Series

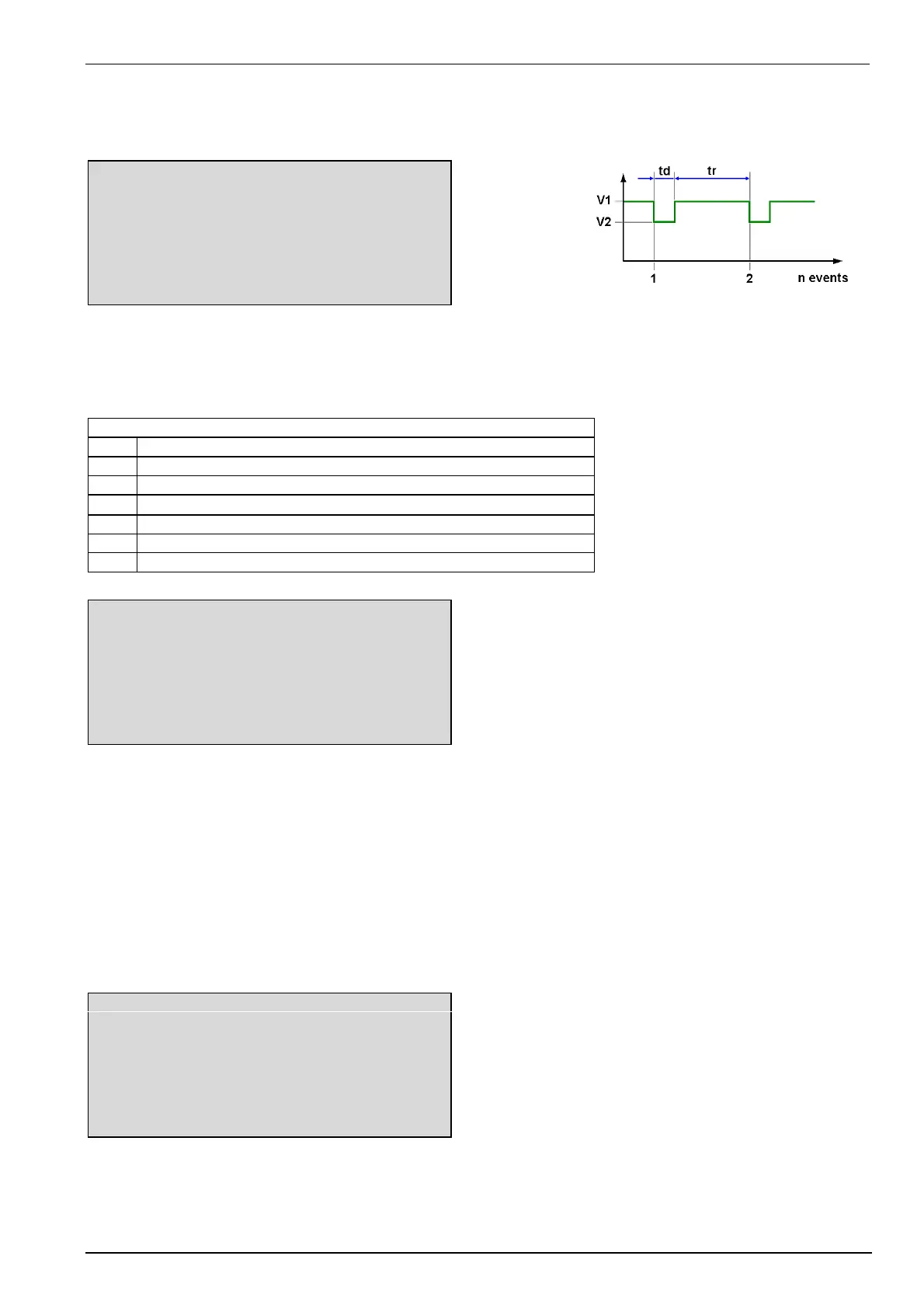

Operating Manual V 3.05 37 / 57
11.1.1. Quick Start
Easy and very fast operation of all standard functions of the equipment. The latest simulator settings are stored
automatically and will be recalled when Quick Start is next selected.
Power Fail Quickstart
A = 0dgr td = 10.00ms
rep = 0.50s CH = PF1
V2 = 250V tri = Auto
n = endl.
START CHANGE
F1 F2 F3 F4 F5 F6 F7
Press START and the test routines begin to work.
Press CHANGE and the actual parameters can be changed.
All function keys except F2 (manual trigger) can Stop the test routine.
Explanations
A
Phase angle
td
Duration of a single event
Rep
Repetition rate (time between two events)
CH
Channel select (PF1, PF2 or ∆PF)
U2
Variable test voltage (controlled by 0-10 V analog voltage)
n
Number of events
tri
Trigger mode
Page 3 (Start)
Power Fail Quickstart
A = 0dgr td = 10.00ms
rep = 0.50s CH = PF1
U2 = 250V n = endl.
tri = Auto
V = 230 V Counter
STOP I = 0.5 A 002317
F1 F2 F3 F4 F5 F6 F7
After "START" the display indicates the voltage and current at the TEST SUPPLY output. The measured voltage
is (V peak / 2 ) if there is a ac-signal on the sync input, otherwise Vpeak. The voltage dips will be repeated with
the preselected repetition rate and the counter will be increased.
When the operator is using faster repetition rates the indicated voltage level is not stable. A correct value can not
be displayed.
All function keys, except F2 Manual Trigger, can stop the running test. After Stop the last setting is displayed for
about 2 seconds. Then the functions START, CHANGE or CONT are indicated. F3 will continue the test.
During the QUICK START procedure the value for the angle is blinking. The blinking value always and at any
time can be changed by turning the knob (inc/dec). With the cursor the actual blinking function can be changed.
Page 4 (Change)
Power Fail Quickstart
A : 0dgr - 360dgr / async.
A td rep CH U2 tri n
0 10.00 050 PF1 250 Auto endl.
F1 F2 F3 F4 F5 F6 F7
The parameter to change can be selected by pressing a function key. The corresponding range will then be
displayed.
