EM TEST UCS 500 Series
Operating Manual V 3.05 39 / 57

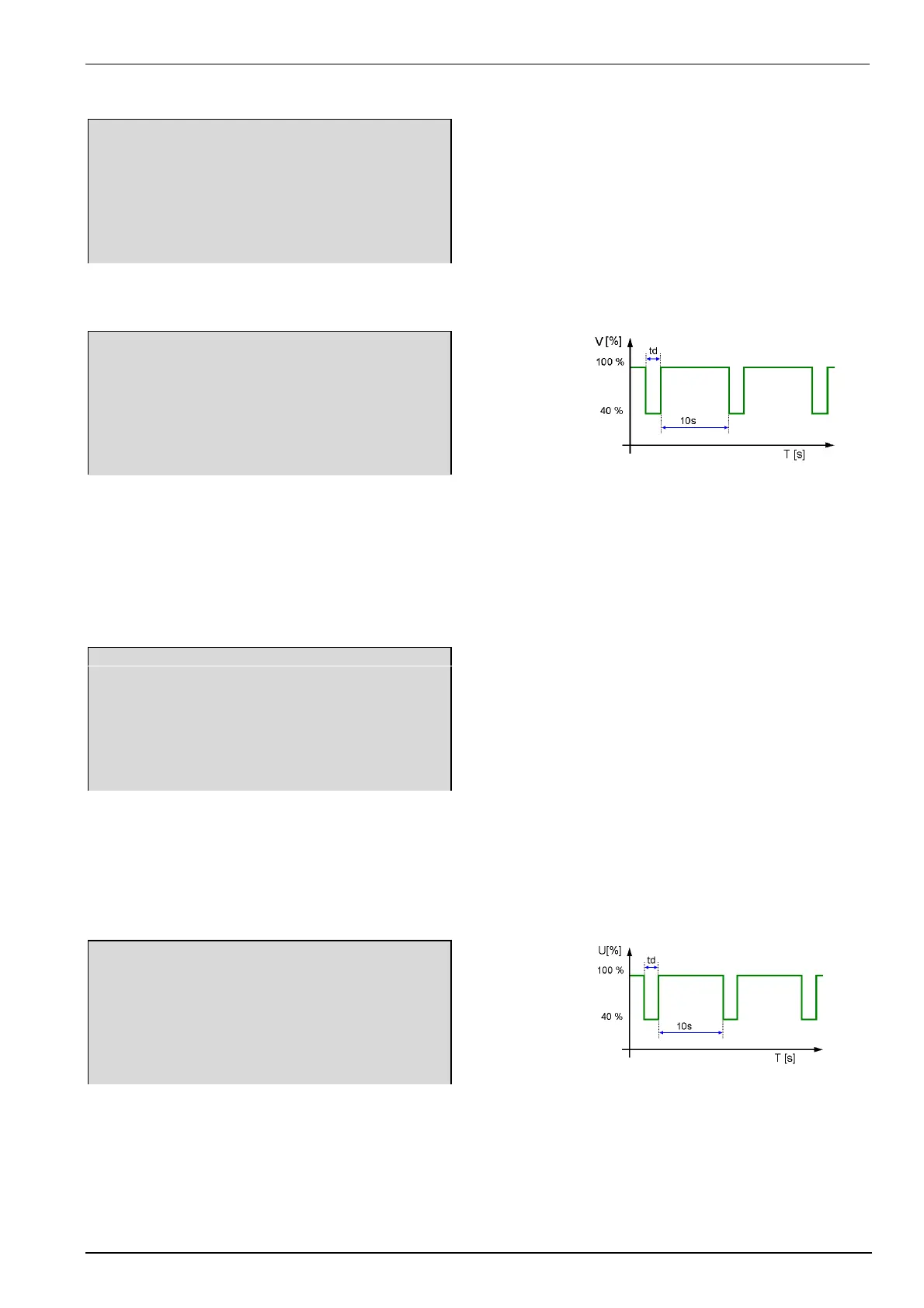

11.1.2.2. F1: IEC 61000-4-29 ( DC power supply mains )
Page 3
Power Fail IEC 61000-4-29
F1: Level 1 40% 10.0 ms
F2: Level 2 40% 30.0 ms
F3: Level 3 40% 100 ms
F4: Level 4 40% 300 ms
F5: Level 5 40% 1000 ms
F1 F2 F3 F4 F5 F6 F7
F1 ... F5: DIPS Level 1 to Level 5
Page 4 ( Show parameter)
Power Fail IEC 61000-4-11 Level 3
V2% = 40% Ch = PF1
td = 100ms tr = 10s
n = 3.
Counter
START / STOP 000002
F1 F2 F3 F4 F5 F6 F7
As long as the external dc supply is used, controlled by an analogue 0-10V control voltage, the test is conducted
automatically. If this option is not available the manual test routine shall be used.
11.1.2.3. F3 / F4: EN 61000-6-1 / -2 ( Generic )
F3...F4: Generic Test Routines
Page 3
Power Fail EN 61000-6-2 Generic
V2 td A n
70% 10.0 ms 0 / 180 3
40% 100 ms 0 / 180 3
40% 1000 ms 0 / 180 3
0% 5000 ms 0 / 180 3
START CHANGE
F1 F2 F3 F4 F5 F6 F7
This test proceed automatically with a blinking status of the actual sequence in the display. As long as the
external variac MV2616 is used, controlled by an analogue 0-10V control voltage, the test is conducted
automatically. If this option is not available the manual test routine shall be used.
Change parameters
Page 4 (Show parameter)
Power Fail EN 61000-6-2 Generic
tr : 0.01 s - 99s
tr
10
F1 F2 F3 F4 F5 F6 F7
