EM TEST UCS 500 Series
Operating Manual V 3.05 40 / 57
11.1.2.4. F7: Manual test routine
In this menue the user can easy change the parameter online during the test.

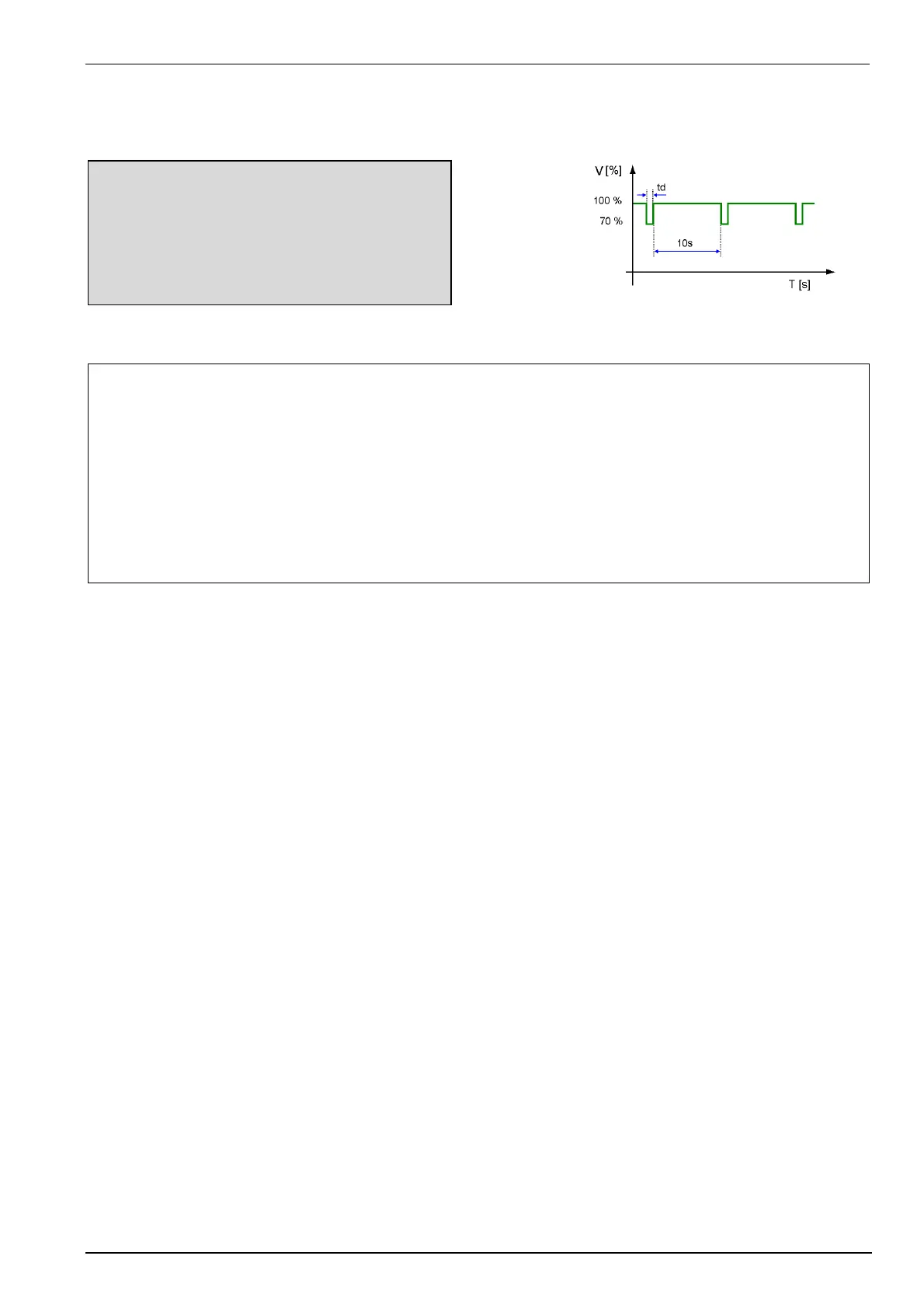

Page 4 (Show parameter)
Power Fail standard routine IEC 61000-4-11
<- -> O O
Level 4 70% 500ms 0 grd
START oV2/td A
F1 F2 F3 F4 F5 F6 F7
Example:
- Selecting the 70% level requires a 70% Vn power supply voltage at the input of PF2 at the rear panel of the
UCS. Use for that the variac MV2616 (automatic), the matching transformer V4780 or your own power mains
source available in your laboratory.
- By pushing the function keys will immediately activate the function
– F1 : Start
– F3 : oV2/td Exchange the knob function V2Level [%] / Dip duration
– F6 : W Angle 0°, 180°, asynchronous
- By turning the inc knob the duration of a single event can be adjusted.
