12. Electrostatic Discharge as per IEC 61000-4-2
ESD module for electrostatic discharge
12.1. Operation
The Surge menu offers different test routines for burst testing.
ESD IEC 61000-4-2
F1 : Quick Start
F2 : Standard test routines
F1 F2 F3 F4 F5 F6 F7
F1 Quick Start
Easy and fast online-operation of the equipment.
Standard test routines
F2 Standard test routines
The operator can select between various preprogrammed test routines as required in different standards.
- Mode Air discharge AD
Contact discharge CD
- Trigger Single : Single discharge after pushing TEST ON at the P18
CONT : Continuos discharge after pushing TEST ON at the P18
AUTO : Continuos discharge after pushing the function key F1.
Attention: The TEST ON button at the P18 needs not to be pushed by using AUTO trigger. The
high voltage is present after pushing the F1 Start key. This mode is for automatic testing with a
handling system, where nobody is present for pushing the TEST ON button.

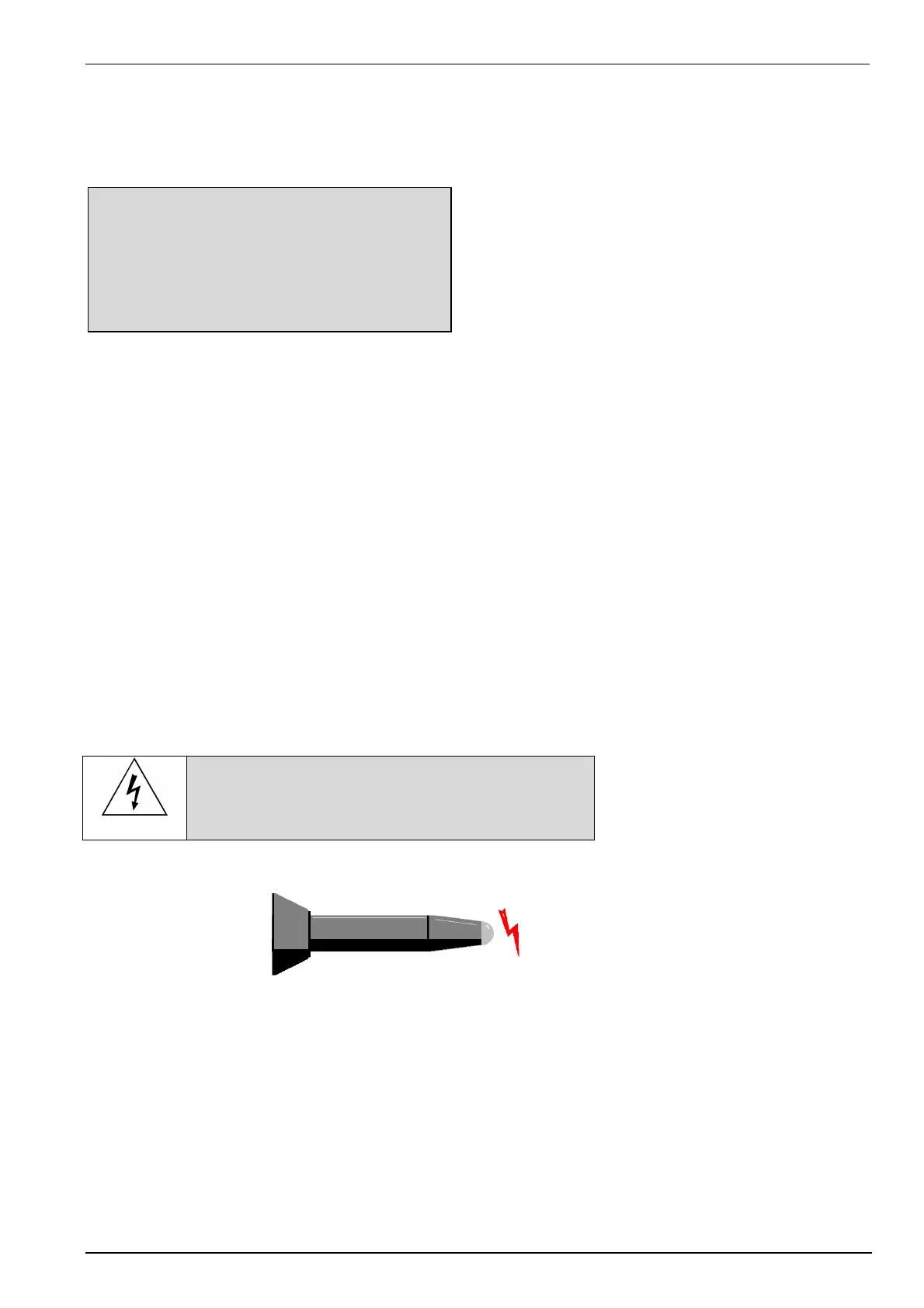

Warning
High voltage at the discharge Tip !
