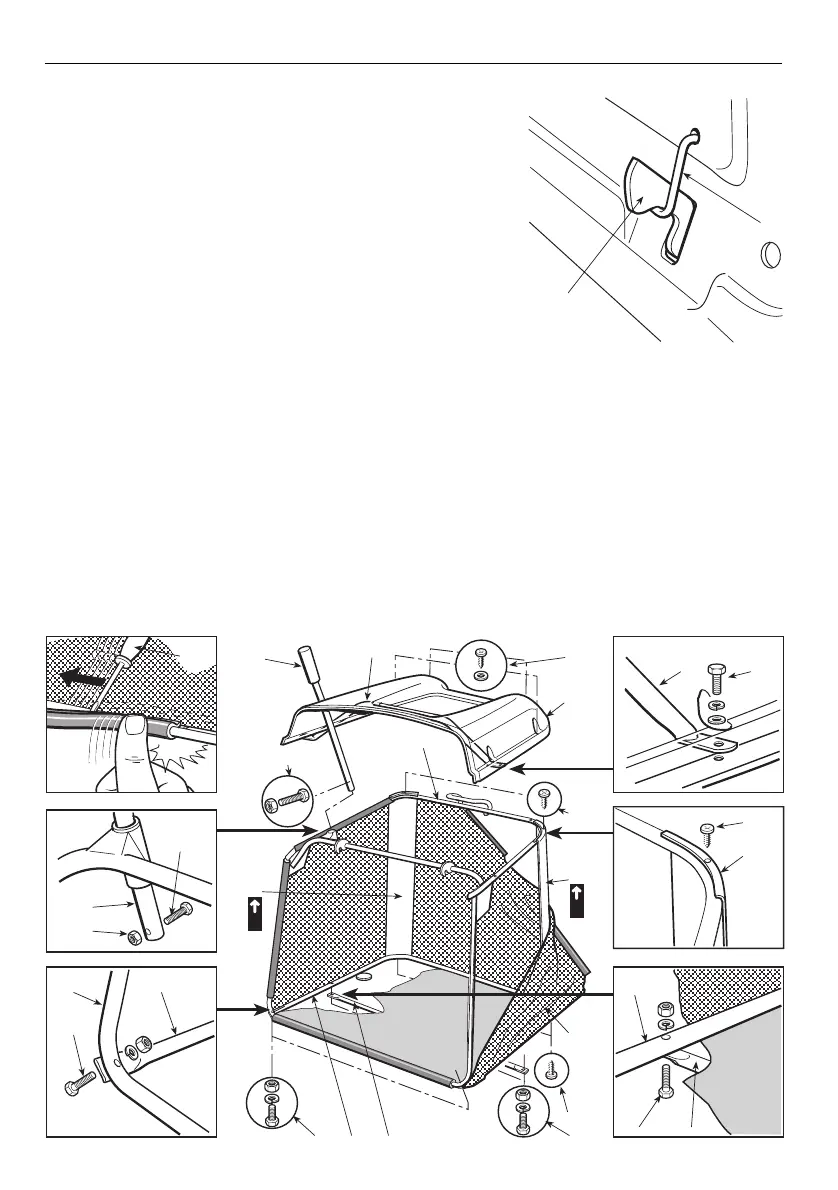

3.6 REMOVAL OF THE STOP FROM THE
HOOKING PAWL OF THE GRASS-CATCHER
For transport purposes, the pawl (1) hooking the
grass-catcher is held onto the rear plate by a stop
(2).
This stop must be removed before fitting the grass-
catcher brackets, and is not to be subsequently
used.
3.7 GRASS-CATCHER ASSEMBLY
The grass-catcher is assembled in four stages:
A) First of all assemble the frame, joining the upper part (1) to the lower part (2)
using the supplied screws and nuts (3) as shown. Position the angle plates (4)
EN 12 UNPACKING AND ASSEMBLY
2
1
R
12
6
5
6
14
16 -17
3 2 13
L
6
4 - 5
1 2
3
1
7
9
10
C
L
A
K
17
16
15
8
15
4
2
14 13
9 11
