Note:
1.Car cigarette lighter adaptor is not recommended to recharge the battery.
2.Car cigarette light adaptor can only be used when the car power supply is 9-12V.
3.The mains plug is used as the disconnect device, the disconnect device should remain
readily operable.

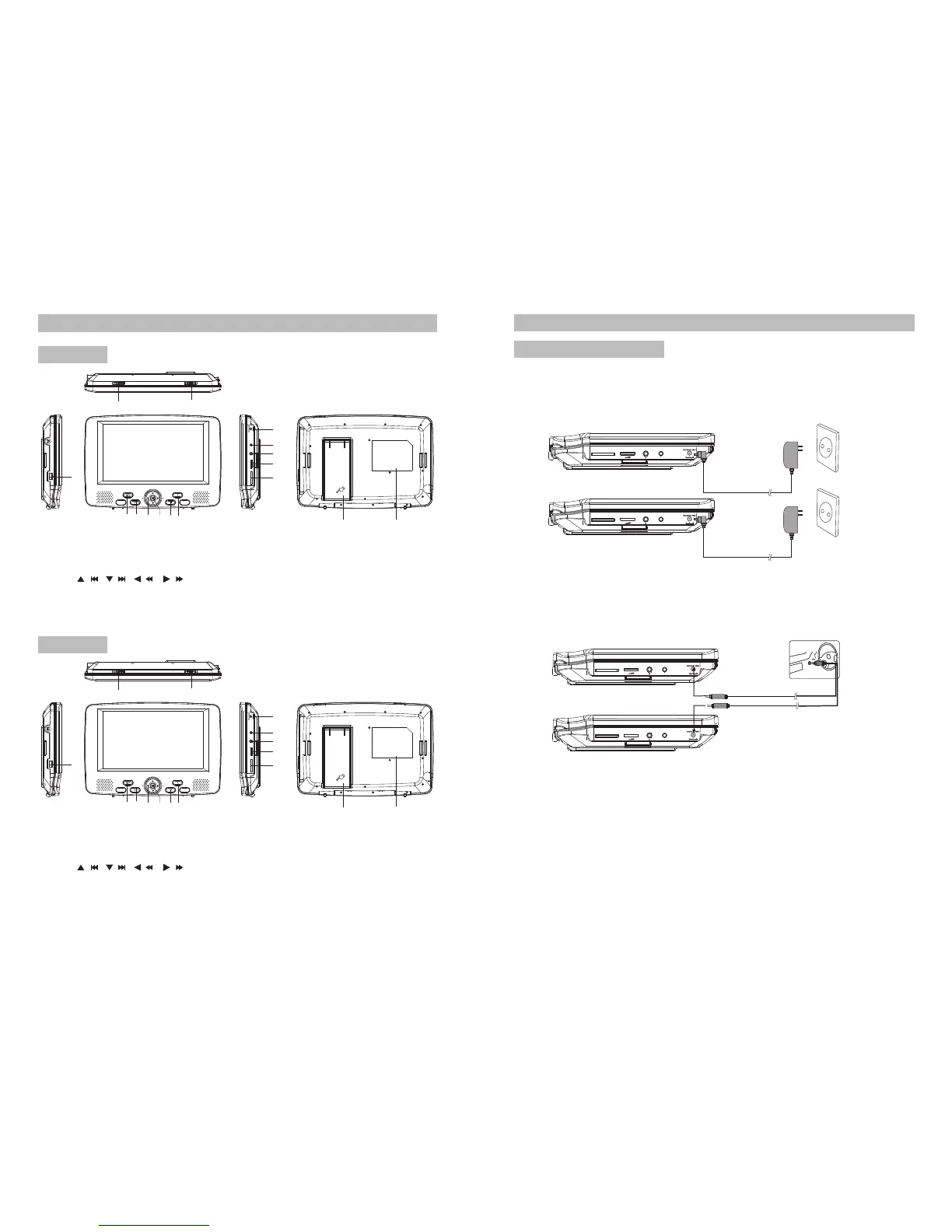

Powering and installation
Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the
unit, then plug the other end into the AC power receptacle. Please refer to the following
illustration.
If using car cigarette lighter adaptor to connect to the power:
Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug
the other end into the car cigarette lighter socket.See illustration below.
System Connection
Car cigar ette lighter
AV IN/OUT
SD
Main Unit Controls
Overview of Unit A/B Controls
1. Open knob
2. Power ON/OFF switch
3. SETUP button
4. MODE button
5.
6. OK button
7. PLAY/PAUSE button
8. STOP button
1. Open knob
2. Power ON/OFF switch
3. SETUP button
4. MODE button
5.
6. OK button
7. PLAY/PAUSE button
8. STOP button
9. DC IN 9-12V
10. AV OUT
11. Earphone jack
12. Volume knob
13. SD card slot
14. USB Port
15. Bracket
16. Rating label position
9. DC IN 9-12V
10. AV IN/OUT
11. Earphone jack
12. Volume knob
13. SD card slot
14. USB Port
15. Bracket
16. Rating label position
16
16
( )/
( )/
( )/
( )/
( )/
( )/
( )
( )
CLOSE
CLOSE
1
1
2
2
15
15
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
15
15
AV OUTAV IN/OUT
ON OFF
ON OFF
SDSD
SD
Unit A
Unit B
