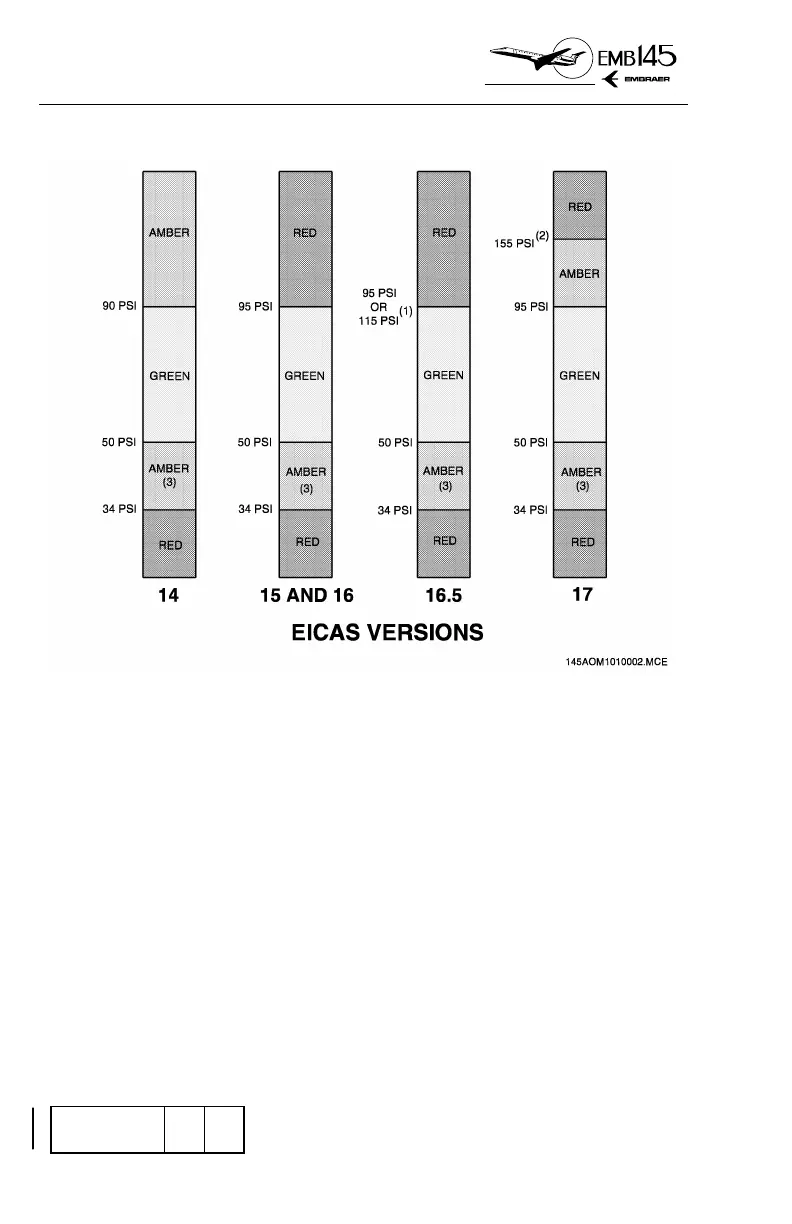

OIL PRESSURE INDICATION
(1) For any takeoff thrust mode selected and TLA higher than 65º
or with thrust levers set to firewall (go-around), the upper limit of
the green band is 115 psi. In all other thrust ratings it is 95 psi.
(2) For EICAS version 17 with FADEC B 5.1.1 the amber band
upper limit is 155 psi.
(3) For N2 < 88% the amber band between 34 psi and 50 psi does
not exist, and the green band lower limit is 34 psi.
(4) For EICAS 14, a placard is installed in the cockpit allowing the
operation in the amber band, between 91 and 115 psi, during
the takeoff and go-around phases, time limited to 5 minutes.
