Unpack the system
1. Open the “Open Me First” box.
2. Remove the accessories and rack-mount kit from the shipping packages.
3. Remove the controller and bezel from the shipping packages.
Install the rack brackets
Data Domain systems are installed into racks using the rack bracket hardware.
Bracket hardware
The rack-mounting kit is compatible with racks that have front-to-rear post spacing
between 18 inches and 36 inches. The kit will fit the following types of mounting holes:
l
7.1 mm round holes
l
.375 inch / 9.2 mm square holes
l
M5, M6, 12-24, and 10-32 threaded holes
The kit includes the following items:
l
Two bracket assemblies, one marked for the left (L) side and one marked for the right
(R) side of the rack.

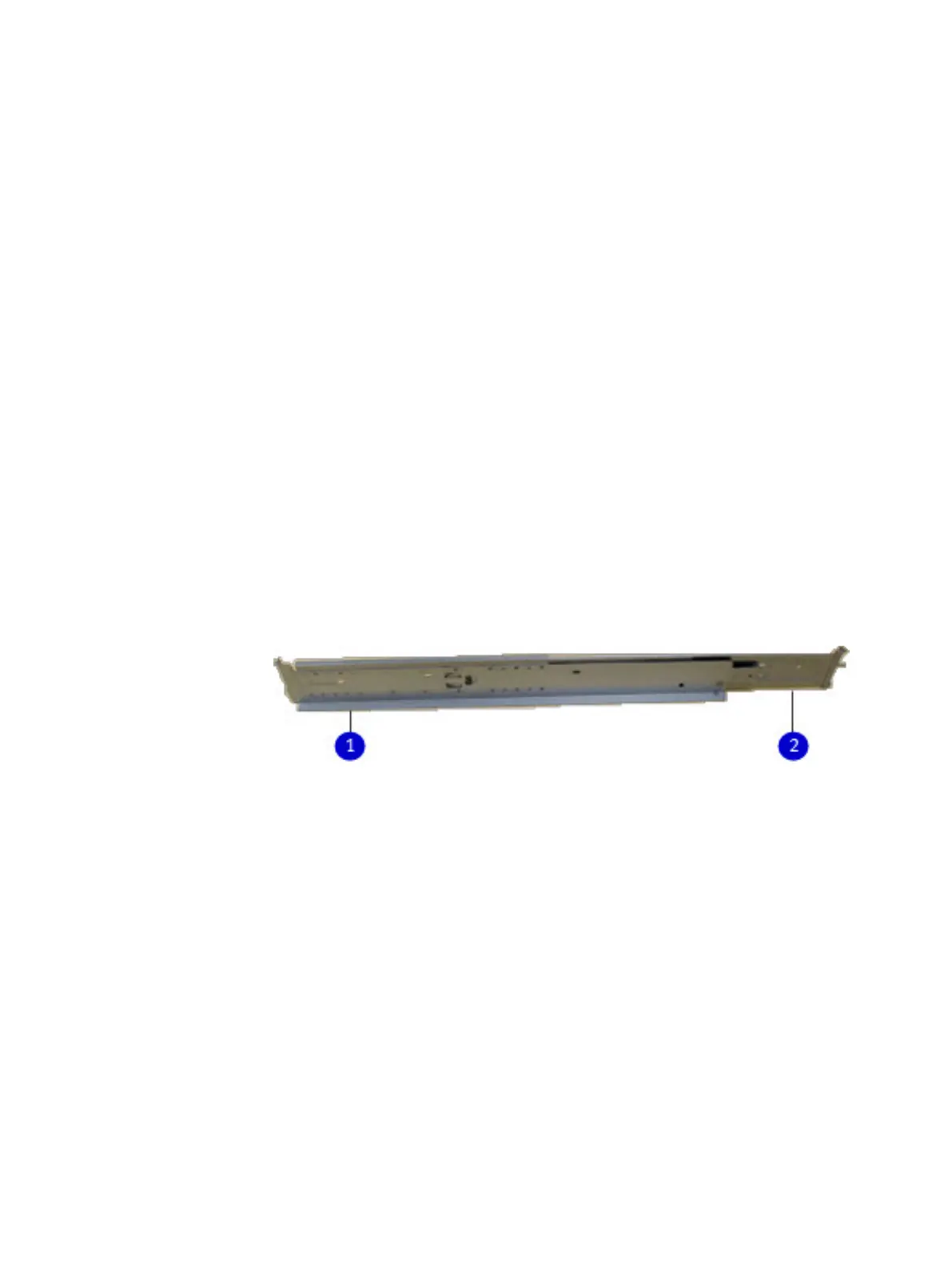

Figure 10 Bracket assembly
1. Front.
2. Back.
Installation and Setup Guide
12 Installation and Setup Guide
