Emerson CHD200GICK - Appearance and Dimension; Appearance

CHD200G series Fingerprint Reader
6
No. Color Function Remark
1 Red +12VC
Power supply
2 Black GND
3 Brown RS485A
Upload or download data
4 Grey RS485B
5 Green Wiegand WD0
Connect with controller
Wiegand, transfer
fingerprint ID
6 White Wiegand WD1
7 Yellow Alarm output Tamper alarm
8 Orange Backup

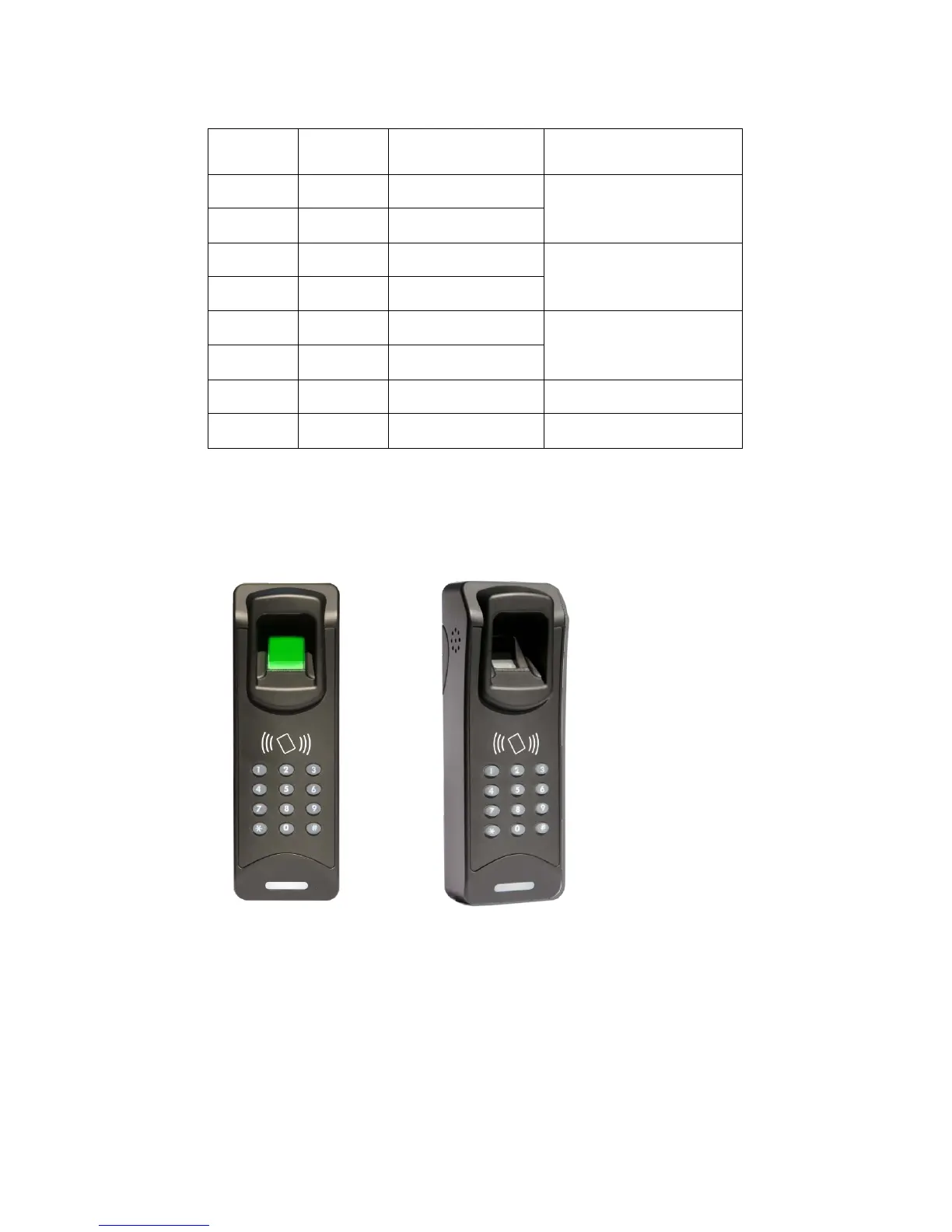

5. Appearance and Dimension
5.1Appearance
