Emerson FB2200 Flow Computer Quick Start Guide
D301788X012
March 2019
14

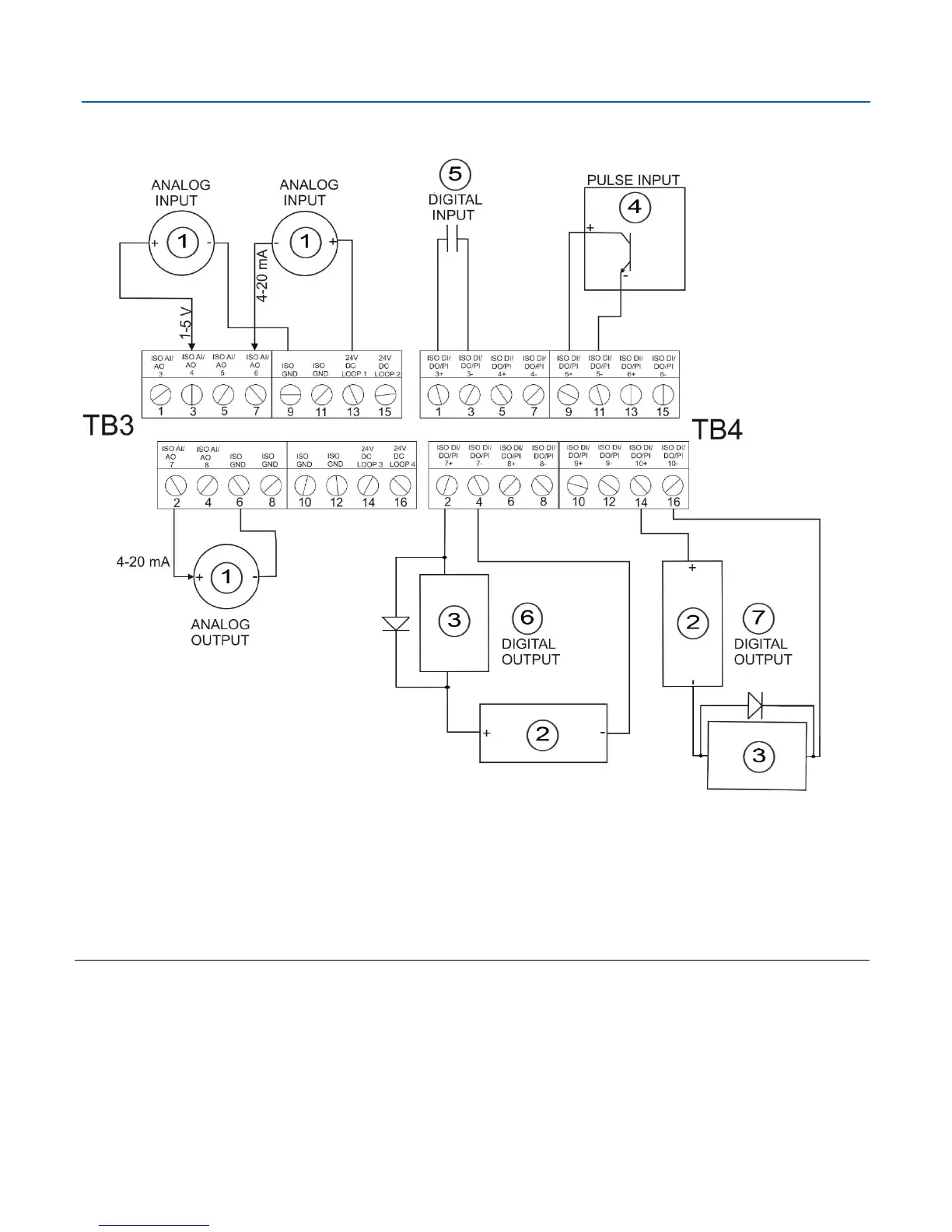

Optional Expansion I/O Board Wiring
1
Field Device
2
Power Supply 30Vdc Max
3
500 mA load max
4
Open Drain Type or Open Collector Device (Externally Powered)
5
Dry contact
6
Low Side Switch
7
High Side Switch
ISO AI/AO 7, 8 and ISO DI/DO/PI 7, 8, 9, 10 on 6-channel expansion I/O board only allowed if
optional 8-channel expansion I/O board (ISO DI/DO/PI 3, 4, 5, 6, ISO AI/AO 3,4,5,6) already
present.
