Site Considerations for Equipment Installation, Grounding, and Wiring Manual
D301452X012
October 2019
Lightning Arresters and Surge Protectors 21
H.
Only connect the antenna cable to the radio after the mast has been properly grounded
and the lead-in cable has been properly connected to lightning arresters which in turn have
each been properly connected to a known good earth ground.

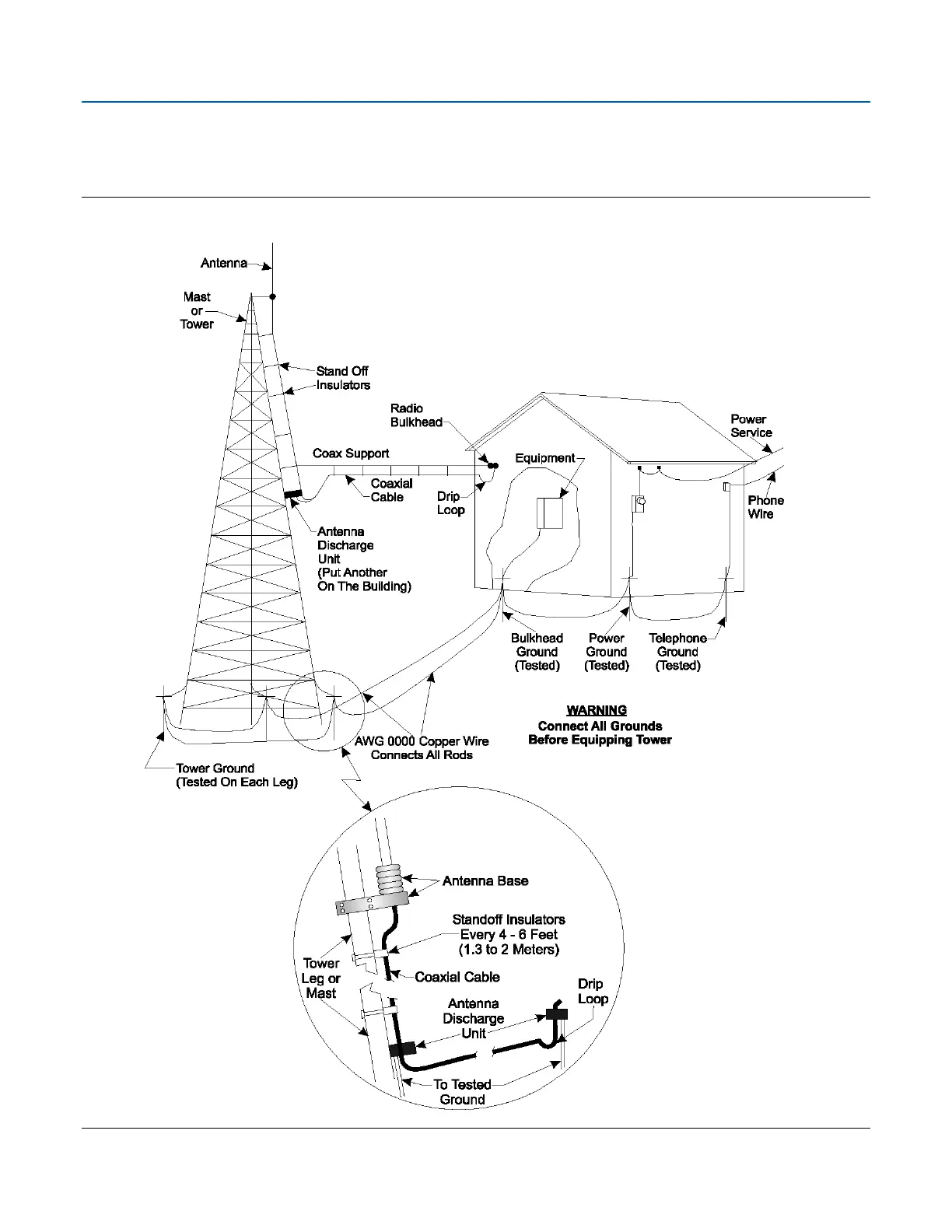

Figure 4-2: Radio Antenna Field Installation Site Grounding
