Emerson DXP-FF User Manual

www.topworx.com
33
TM

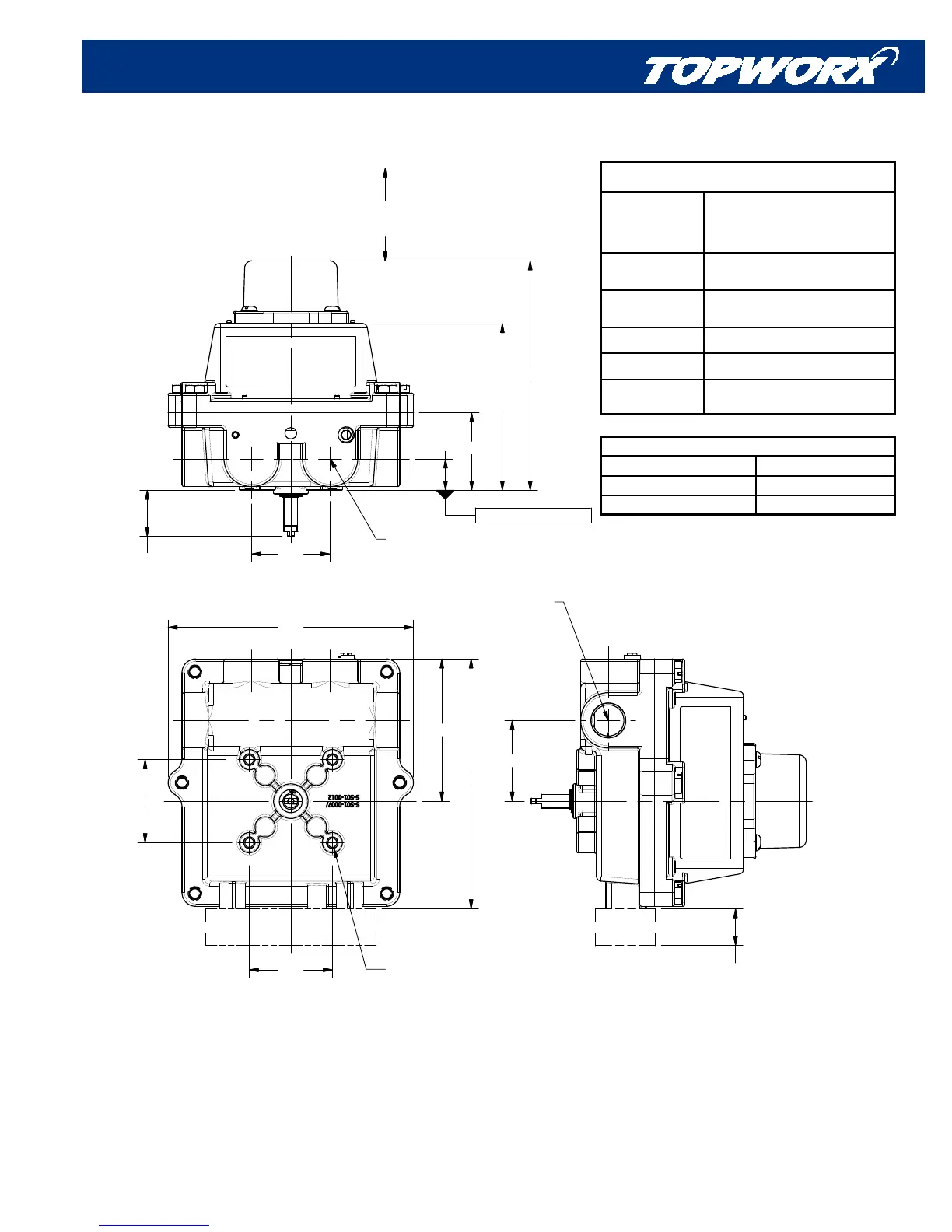

Valvetop DXS
MOUNTING SURFACE
.85
2.10
4.52
6.21
MINIMUM 2.5" REQUIRED CLEARANCE
IN ORDER TO DISINGAGE THE SHAFT FROM THE ID BUSHING
AND REMOVE LID WHERE OPTIMUM CONDITIONS APPLY
SHAFT TYPE OPTIONAL
SEE SHAFT DETAIL
SECTION
2.13
6.65
6.76
3.85
2.25
2.25
5/16-18 UNC - 2B
.44 DEEP
VALVE TYPE OPTIONAL
SEE INTEGRATED PNEUMATIC
CONTROL VALVES SECTION
2.19
OPTIONAL CONDUIT ENTRIES
USED ONLY WHEN 4 ENTRIES
ARE SPECIFIED
OPTIONAL CONDUIT ENTRIES
MATERIALS OF CONSTRUCTION
Enclosure Cast 316 Stainless Steel
Fasteners
304 Stainless Steel standard
316 Stainless Steel optional
Shaft
304 Stainless Steel standard
316 Stainless Steel optional
Shaft Bushing N/A
Indicator Dome Polycarbonate, UV F1 rated
Seals
O-ring seals available in: Buna,
Silicone, EPDM & Viton
Maximum Fastener Torque Specifications
Enclosure Housing Bolts 8 ft-lbs [10.8 N·m]
Indicator Dome Screws 20 in-oz [141 mN·m]
Bottom Mounting Holes 10 ft-lbs [13.6 N·m]
Illustration #6
