AUDIO SIGNAL

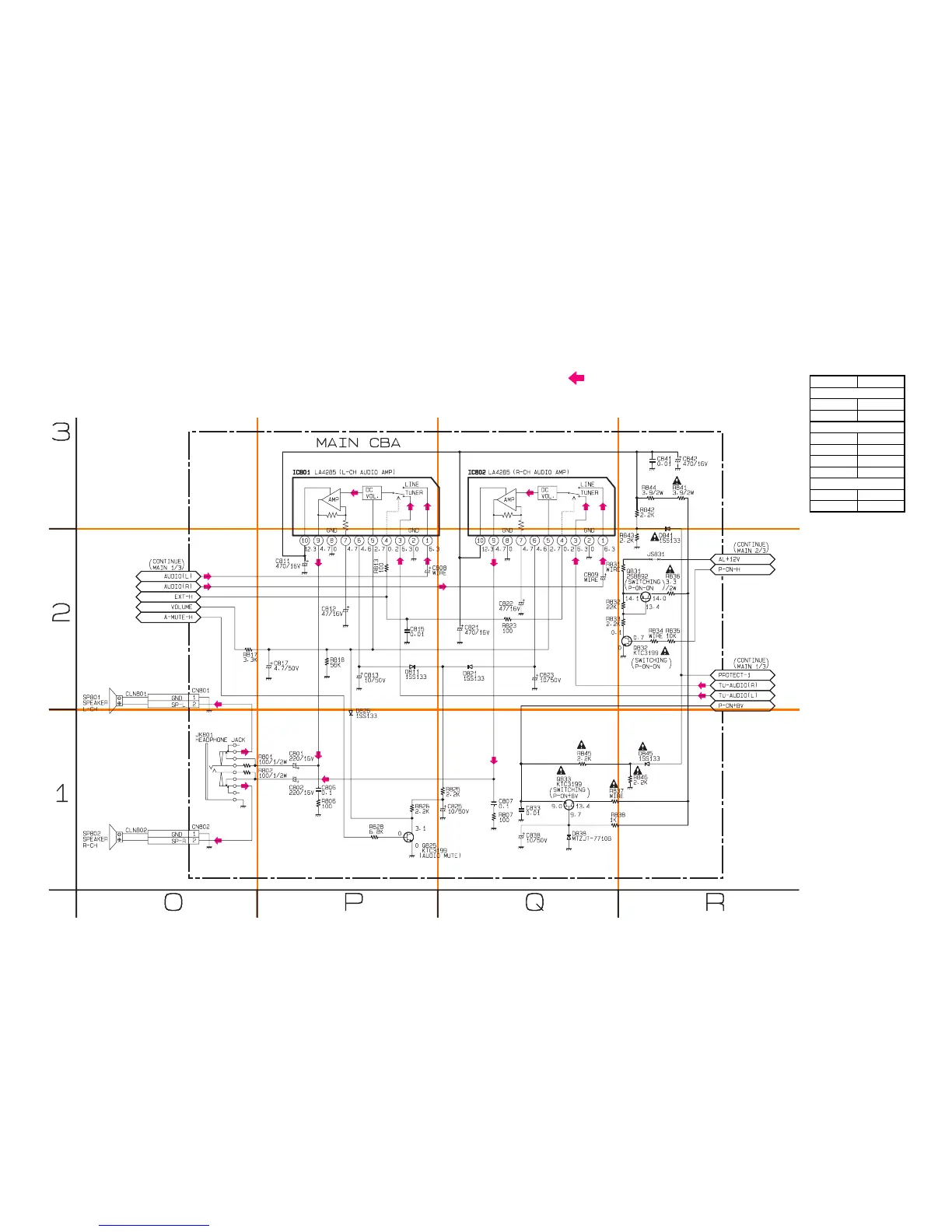

Main 3/3 Schematic Diagram
L6118SCM3
MAIN 3/3
Ref No. Position
IC801
P-3
IC802
Q-3
Q825 P-1
Q831
R-2
Q832
R-2
Q833
Q-1
CN801
O-2
CN802 O-1
CONNECTOR
ICS
TRANSISTORS
7-9
7-10
