Emerson FB3000 - Digital Input (DI); Digital Output (DO)

FB3000 Personality Module Field Installation Guide
D301872X012
June 2021
12
Digital Input (DI)

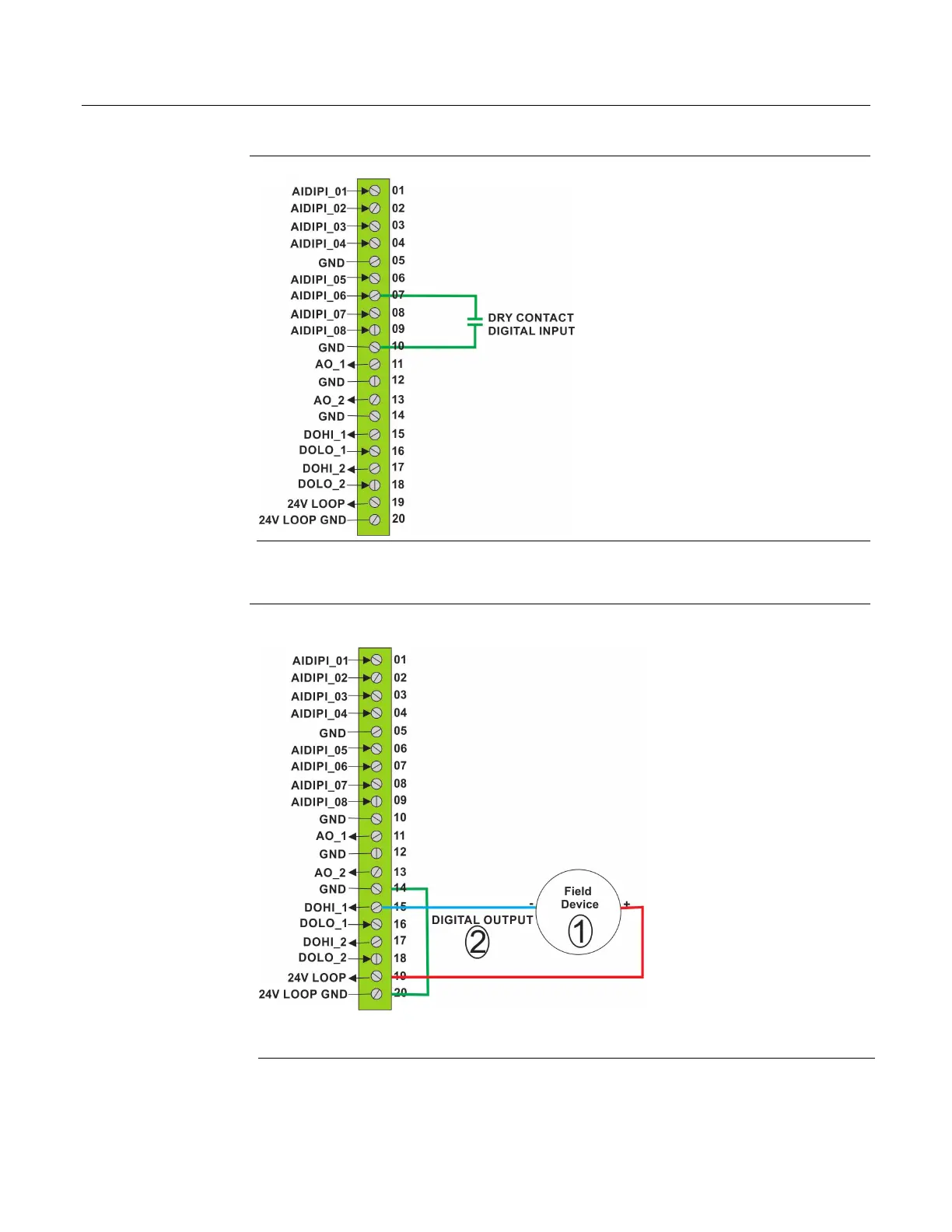

DI Wiring (internal pull-up enabled)
Digital Output (DO)
Digital Output (DO) Wiring –High Side Internal Switch with 24V Loop Supply
1
50 mA load max field device
2
High Side Switch - INTERNAL
