FB3000 Personality Module Field Installation Guide
D301872X012
June 2021
4
Wiring the Personality Module
If you were unable to reuse the existing terminal block wiring, follow the wiring instructions for
your particular module. If you need more detail than is presented here, refer to the FB3000 RTU
Instruction Manual (D301851X012).
Wiring Communication Ports on the CPU (3CPU16)
Serial Ports

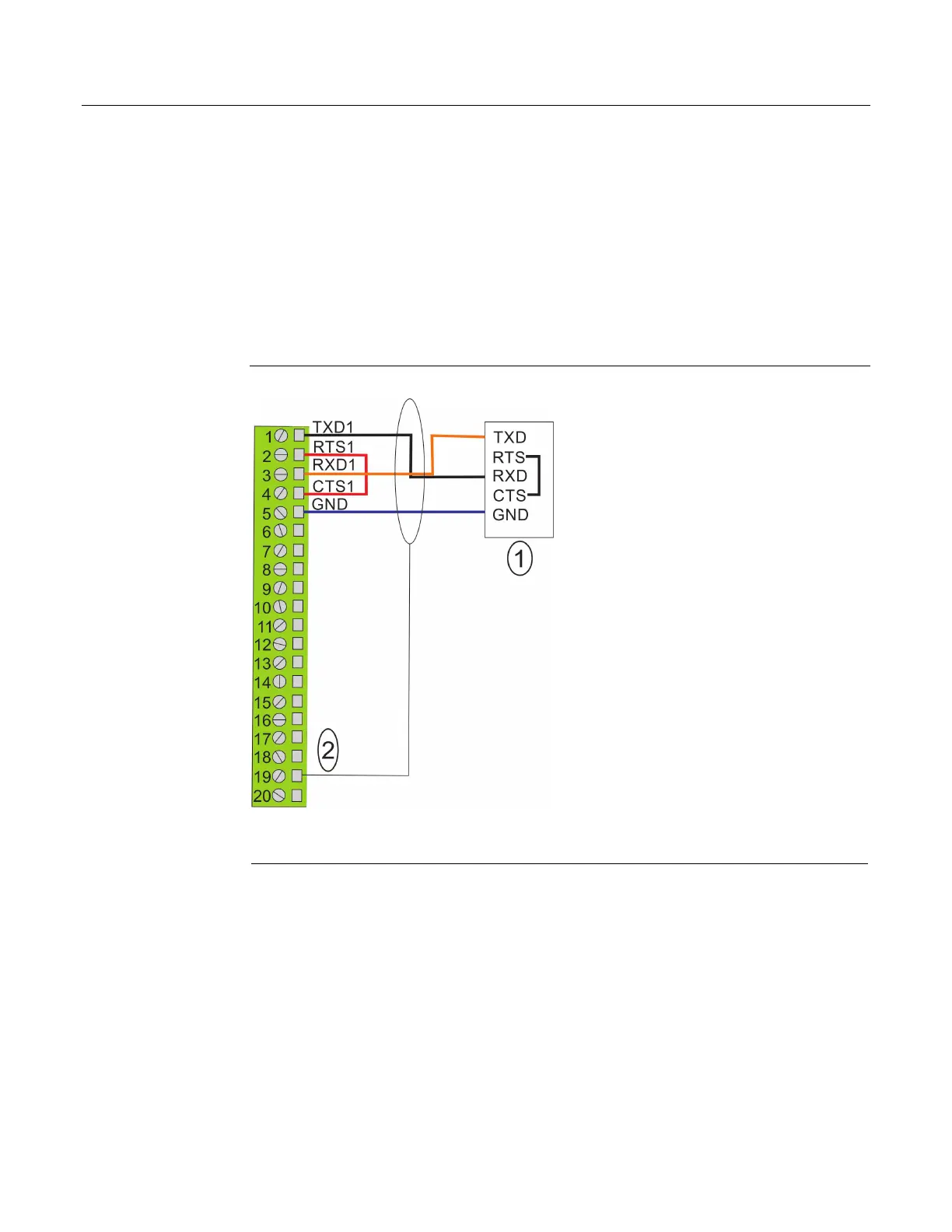

COM1 Configured as RS-232 [
Cable shield connection to chassis ground (use either pin 19 or 20)
