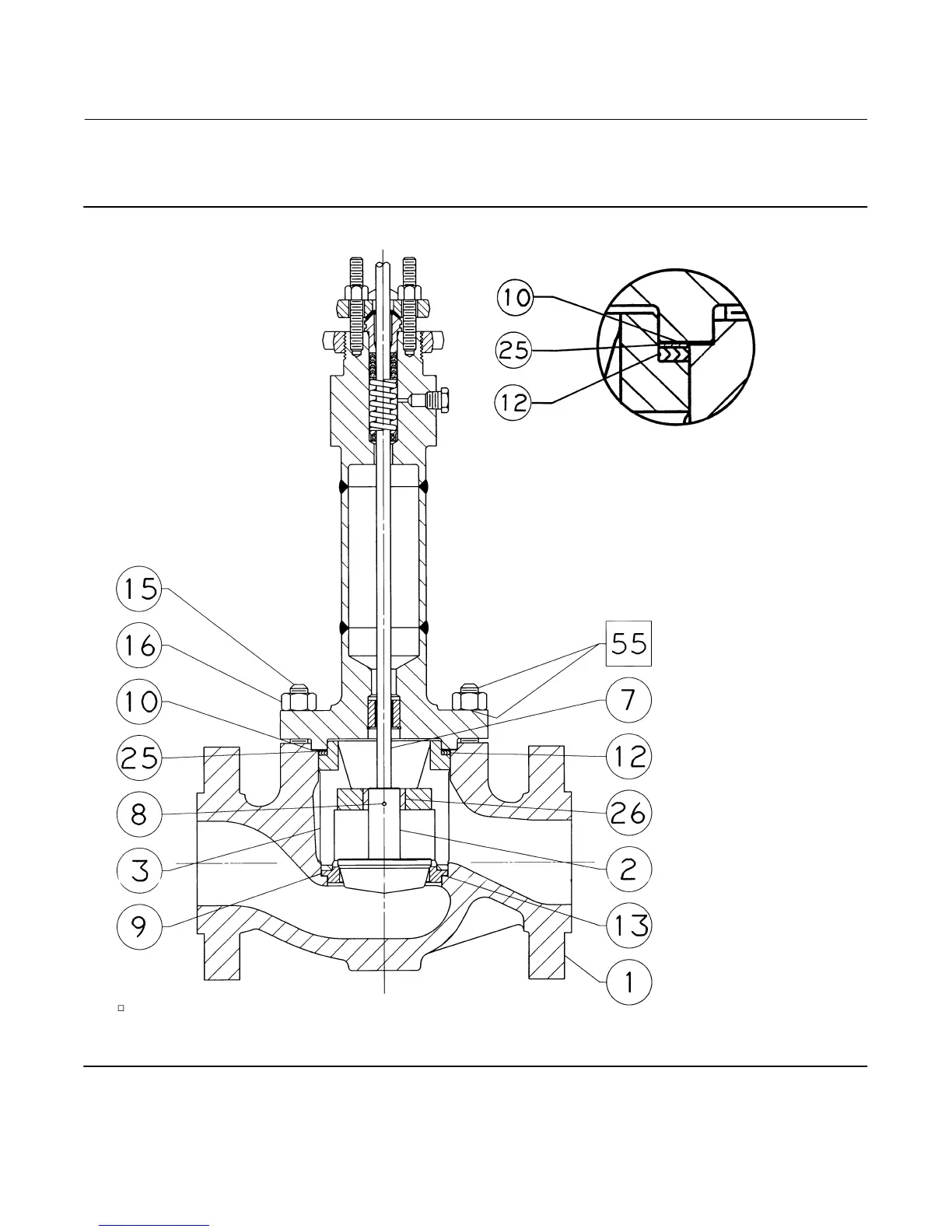

Figure 8. Fisher EZ‐C Valve Assembly
44B8573‐B
16A1943‐A
GASKET DETAIL
APPLY LUBRICANT
NOTE:
EZ-C KEY NUMBERS NOT SHOWN ARE: 18, 19, 33, AND 34.
