Emerson Fisher GX

Instruction Manual
D103175X012
GX Valve and Actuator
April 2011
31

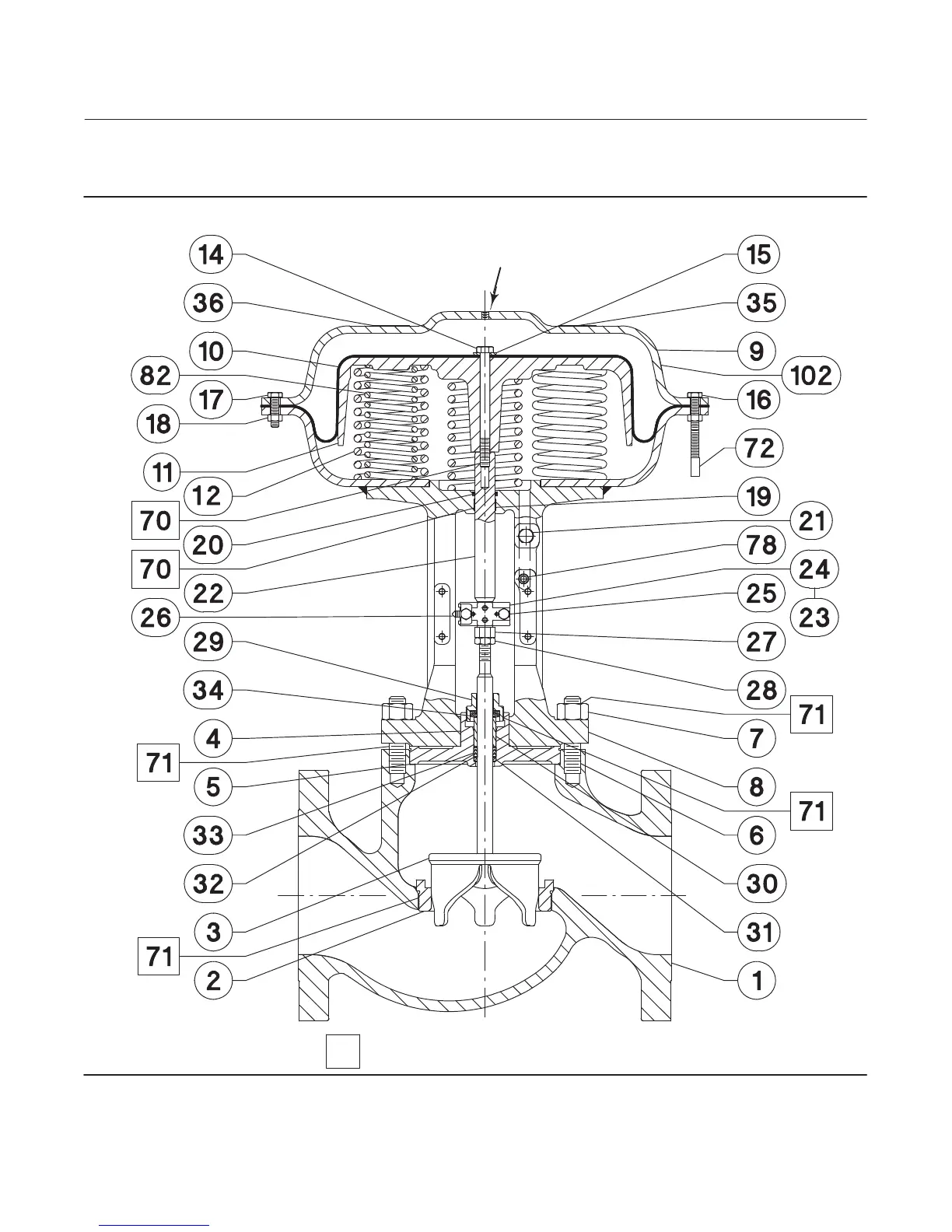

Figure 21. Fisher GX Control Valve and Actuator System Assembly, Air‐to‐Close (Spring‐to‐Open) (DN150 (NPS 6)
with Unbalanced Contoured Plug)
GE23239‐C
AIR SUPPLY
CONNECTION
APPLY LUBRICANT
