Emerson Fisher GX User Manual

Instruction Manual
D103175X012
GX Valve and Actuator
April 2011
35

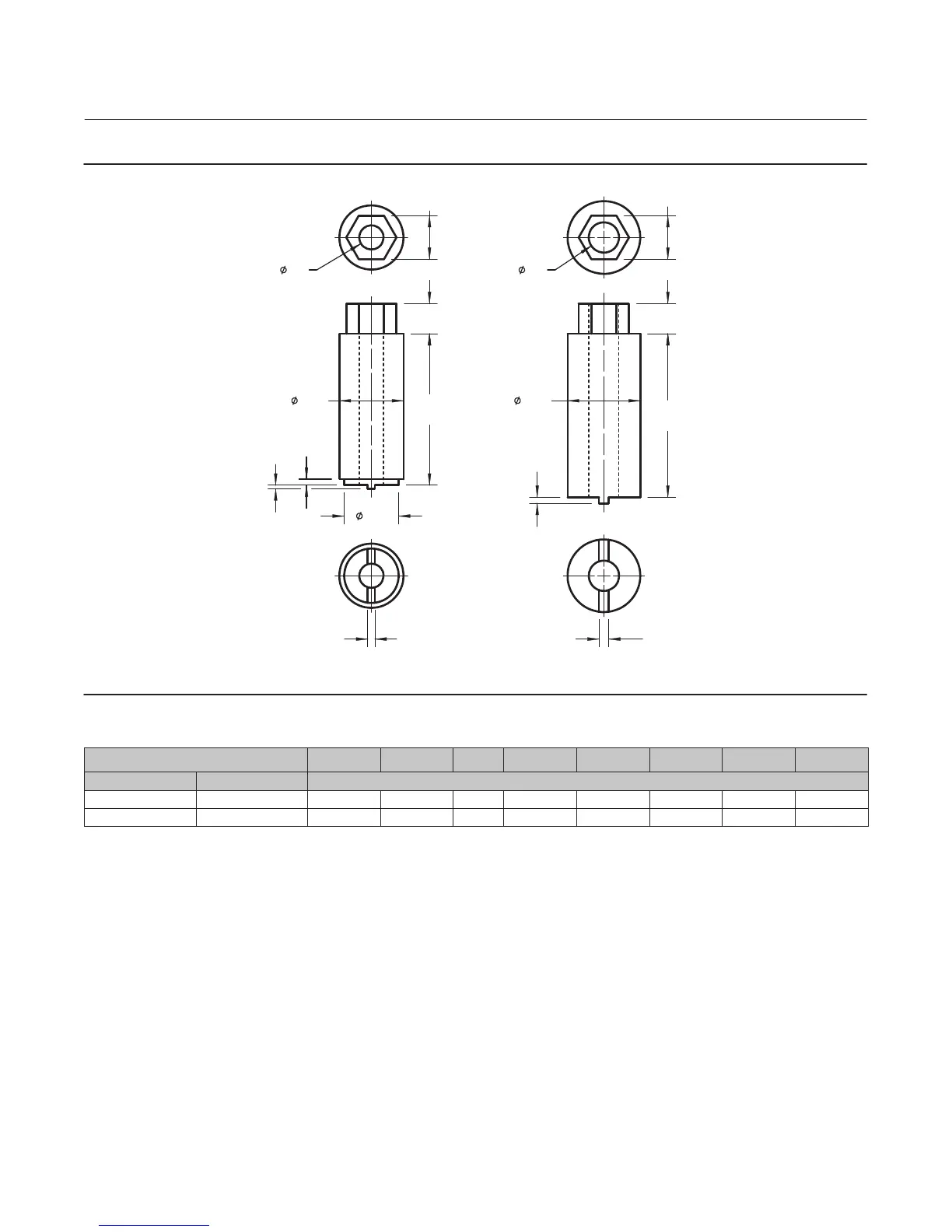

Figure 26. Bellows Nut Removal and Installation Tool
GF00536_3
DN15, 20, 25, 40, and 50
(NPS 1/2, 3/4, 1, 1‐1/2, and 2)
DN80 and 100
(NPS 3 and 4)
C HEX
D
B
A
E
H
G
F
D
F
E
B
A
6 mm
8 mm
C HEX
Table 12. Bellows Nut Removal and Installation Tool Dimensions
Valve Size A B C D E
FO GO
H
DN NPS mm
15, 20, 25, 40, 50 1/2, 3/4, 1, 1‐1/2, 2 125 25 36 20 5 53 45 3
80, 100 3, 4 135 25 1.42 25 5 60 ‐ ‐ ‐ ‐ ‐ ‐
