Instruction Manual
D103553X012
Large ET and ED Valves
July 2017
23

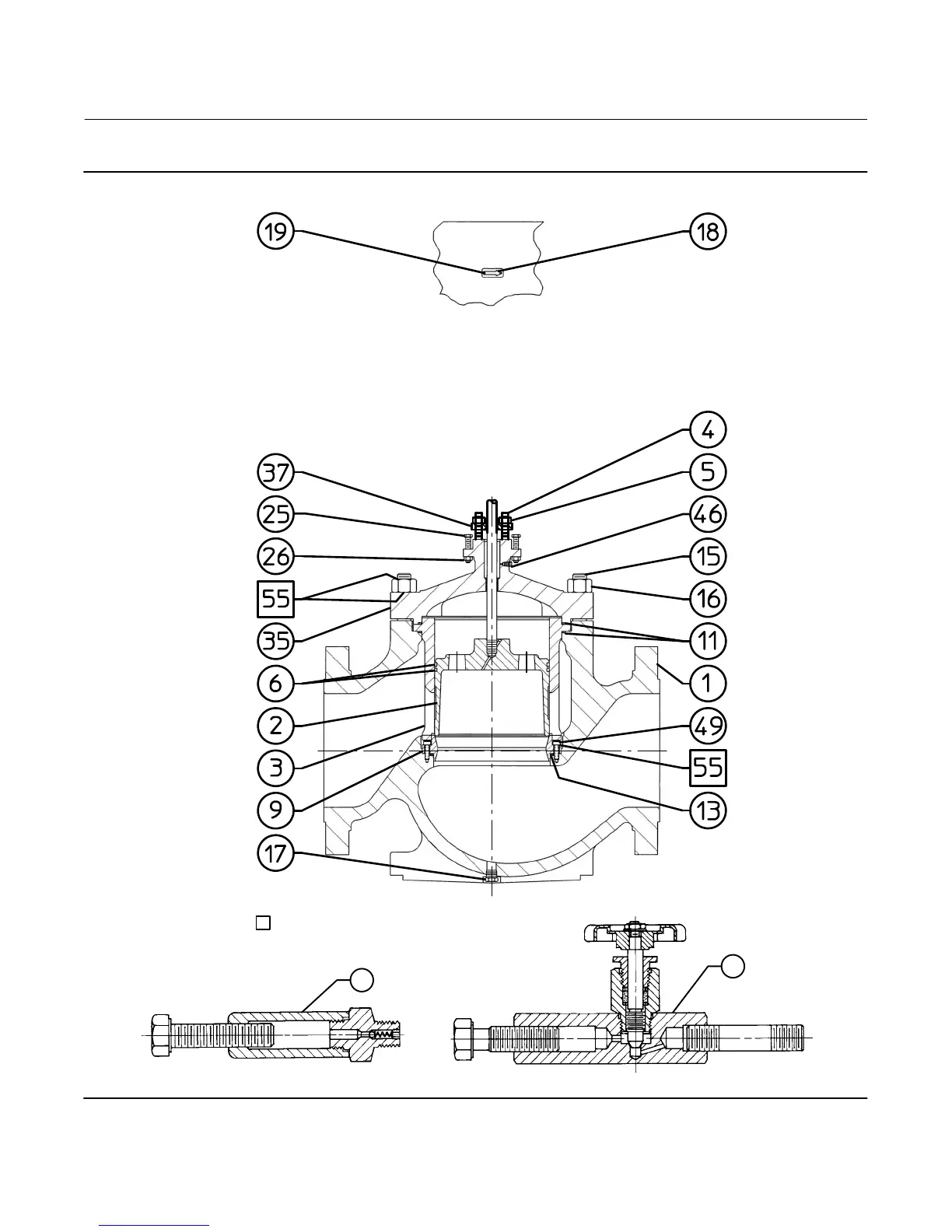

Figure 5. Typical Fisher ED/EWD Valve
FLOW DIRECTION
APPLY LUBRICANT
31
31
OPTIONAL LUBRICATOR OPTIONAL LUBRICATOR/ISOLATING VALVE
44B1142-B
10A9421‐A
AJ5428‐D
A0832‐2
