Terminals
13
9
8
11
12
15
16
10
14

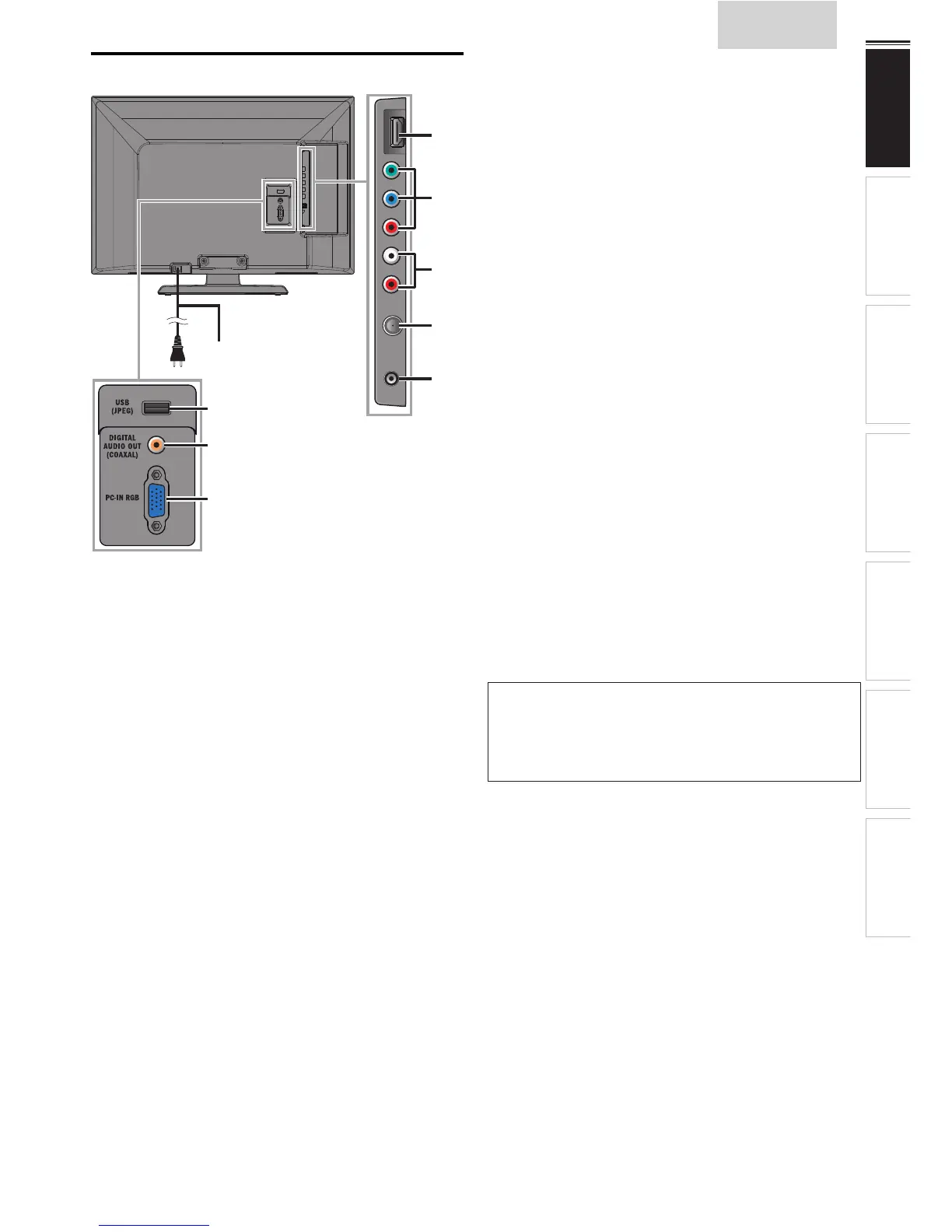

Side Panel
8 HDMI / HDMI-DVI Input jack
➠
p. 10, 25
9 Component / Composite (CVBS) Video Input jacks
for VIDEO
➠
p. 25, 26
Composite Video Input jack (CVBS) is shared jack with
Component Video Input (Y) jack.
10 Analog Audio (L/R) Input jacks
➠
p. 10, 25, 26
Connect Analog Audio signals from
Component Video / Analog Audio (L/R) jacks signal or
HDMI-DVI / Analog Audio (L/R) jacks signal or
Composite Video / Analog Audio (L/R) jacks signal or
PC Connection / Analog Audio (L/R) jacks signal with
stereo mini plug conversion cable jack on PC.
Analog Audio (L/R) Input jacks are right below the
Component Video Input jacks. When the Audio is
monaural, then only connect to the Audio L Input jack.
11 Antenna Input jack
➠
p. 10
12 Headphone Audio Output jack
Headphone connection for personal listening.
Rear Panel
13 AC power cord
➠
p. 10
14 USB terminal
➠
p. 27
Use this terminal only to play back the JPEG picture
fi le stored on a USB storage device, or when software
update is needed.
15 Digital Audio Output jack
➠
p. 26
16 PC (VGA) Input jack
➠
p. 26
Note for USB terminal
• User should not connect any devices to the USB terminal such as
digital camera, keyboard, mouse, etc. (because these will not work).
• The software update is, in most cases, handled by an authorized
service person or in some circumstances the user may be asked
to do the software update themselves.
