62 Chapter 5 Use Of Monitoring Module M800D

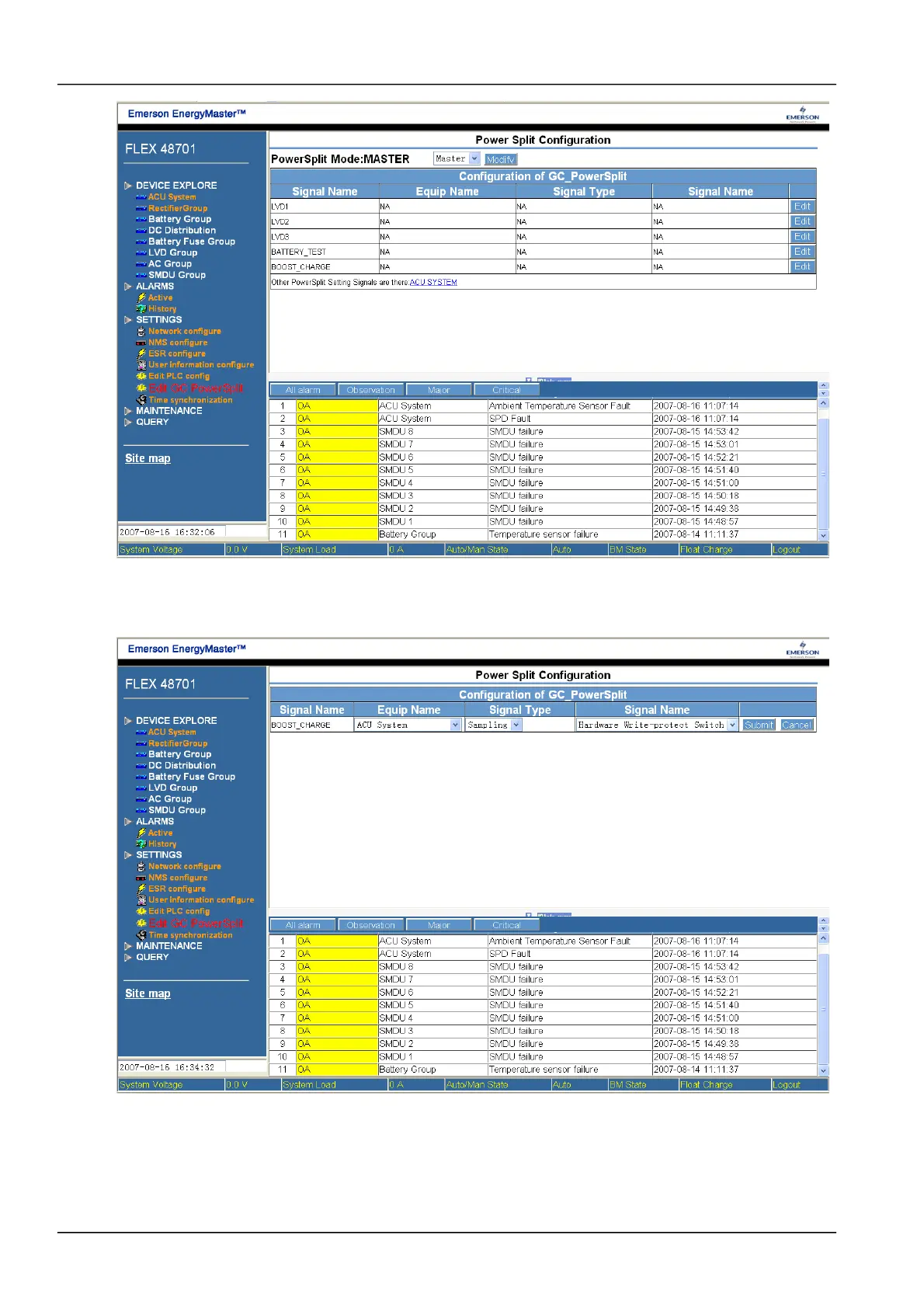

Figure 2.2 Edit GC PowerSplit
In the above screen, click “Edit” button to configure the signals, for example, click the “Edit” button of
“BOOST_CHARGE”:
Figure 2.3 Edit the boost charge parameter
Click the sub-menu of “Time synchronization” to calibrate the clock as shown in the screen below:
NetSure 501 A50, NetSure 501 AA0, NetSure 701 A51 19-Inch Subrack Power Supply System User Manual
