Quick Panel Operator User Manual Section 2

GFK-2847AA Jan 2023

Hardware 13

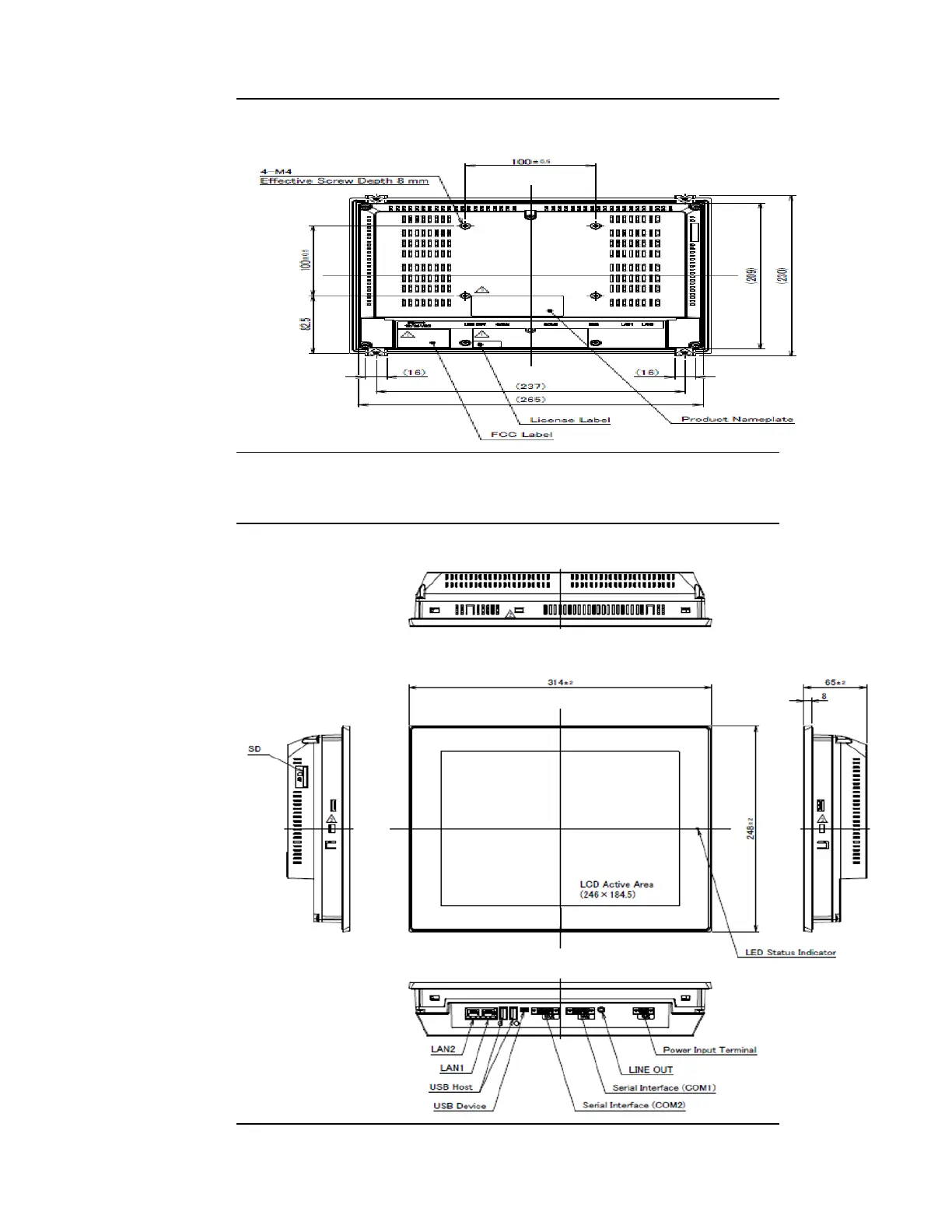

Figure 7: Rear View IC755CxS10CDx

Note: Refer to the Section1.1.1, Physical Specifications and Mounting Options, Subsection

IC755CxS12CDx Specifications for drawing dimensions.

Figure 8: 4-Sided View IC755CxS12CDx
