Quick Panel Operator User Manual Section 2
GFK-2847AA Jan 2023
Hardware 11

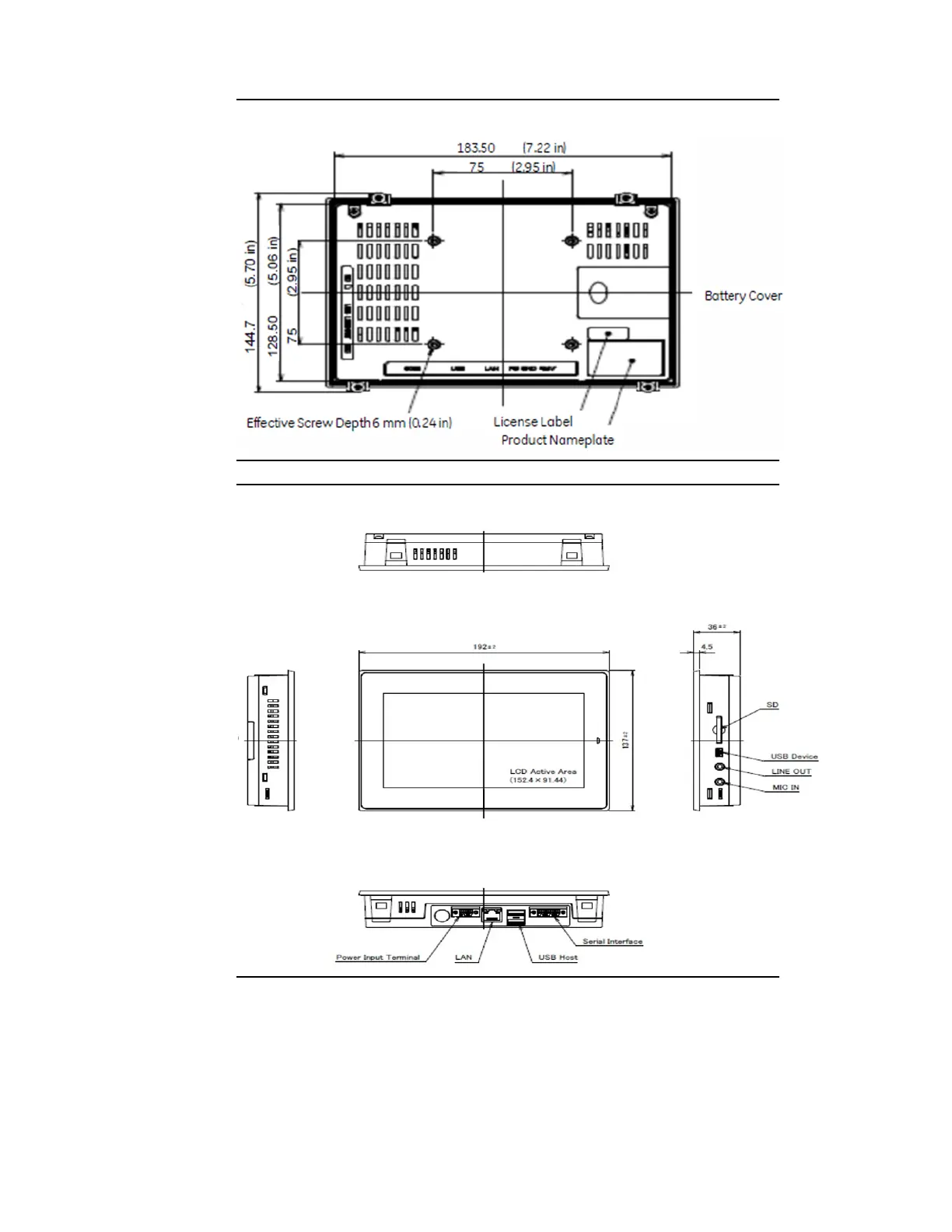

Figure 3: Rear View & Dimensions IC755CxS06RDx
Figure 4: 4-Sided View IC755CxW07CDx
