4-3. Y DL Time Adjustment
Purpose: To get minimum leakage of the color signal
carrier.
Symptom of Misadjustment: If Y DL Time Adjust-
ment is incorrect, stripes will appear on the screen.
1. Enter the Service mode. (See page 1-4-1.)
2. Press "0" button on the remote control unit twice to
show "D-T" on the display.
3. Select "2" by pressing CH o / p buttons on the
remote control to enter Y DL Time Adjustment
mode.
4. If needed, perform the following.
5. V. Size Adjustment
Purpose: To obtain correct vertical height of screen
image.
Symptom of Misadjustment: If V. Size is incorrect,
vertical height of image on the screen may not be
properly displayed.
1. Enter the Service mode. (See page 1-4-1.)
Press "9" button on the remote control unit and
select V-S Mode. (Press "9" button then display will
change to V-P and V-S).
2. Input monoscope pattern.
3. Press CH o / p buttons on the remote control unit
so that the monoscope pattern is 90±5% of display
size and the circle is round.
6. V. Shift Adjustment
Purpose: To obtain correct vertical position of screen
image.
Symptom of Misadjustment: If V. position is incor-
rect, vertical position of image on the screen may not
be properly displayed.
1. Enter the Service mode. (See page 1-4-1.)
Press "9" button on the remote control unit and
select V-P Mode. (Press "9" button then display will
change to V-P and V-S).
2. Input monoscope pattern.
3. Press CH o / p buttons on the remote control unit
so that the top and bottom of the monoscope pat-
tern are equal to each other.

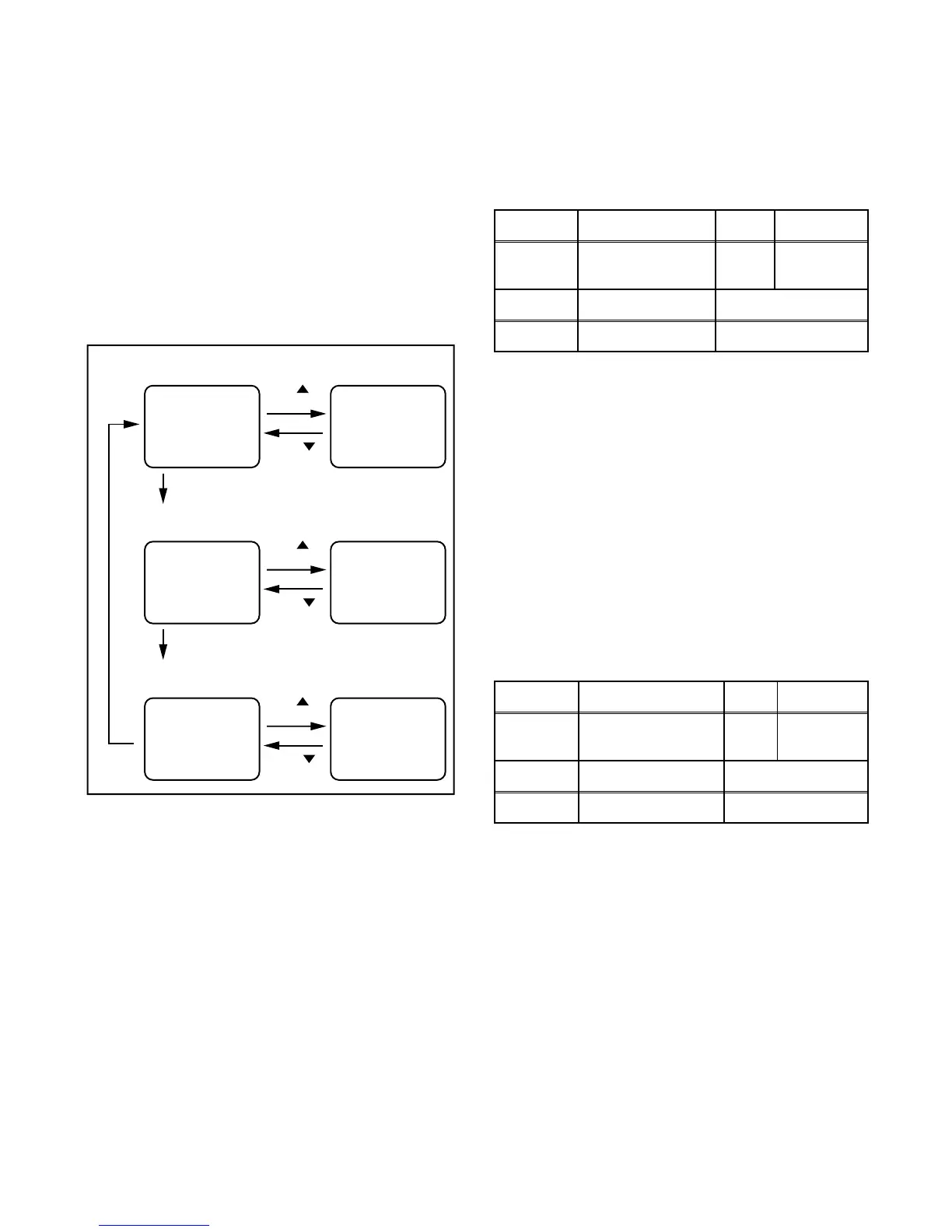

Y DL Time Adj TV Adjustment
CH
button
D-T TV 0 D-T TV 1
button
CH
Y DL Time Adj EXT/PB Adjustment
CH
button
D-T EXT 0 D-T EXT 1
button
CH
"0" button
"0"
button
C-TRAP Adjustment (Factory mode)
CH
button
C-TRP 0 C-TRP 1
button
CH
"0" button
Test point Adj. Point Mode Input
---
CH o / p
buttons
--- Monoscope
Tape M. EQ. Spec.
--- Pattern Generator 90±5%
Test point Adj. Point Mode Input
---
CH o / p
buttons
--- Monoscope
Tape M. EQ. Spec.
--- Pattern Generator 90±5%
