2-4-7 U25NDA
[24]
(C-5)
(S-12)
[25]
[27]
[26]
[28]
(C-4)
(L-4)

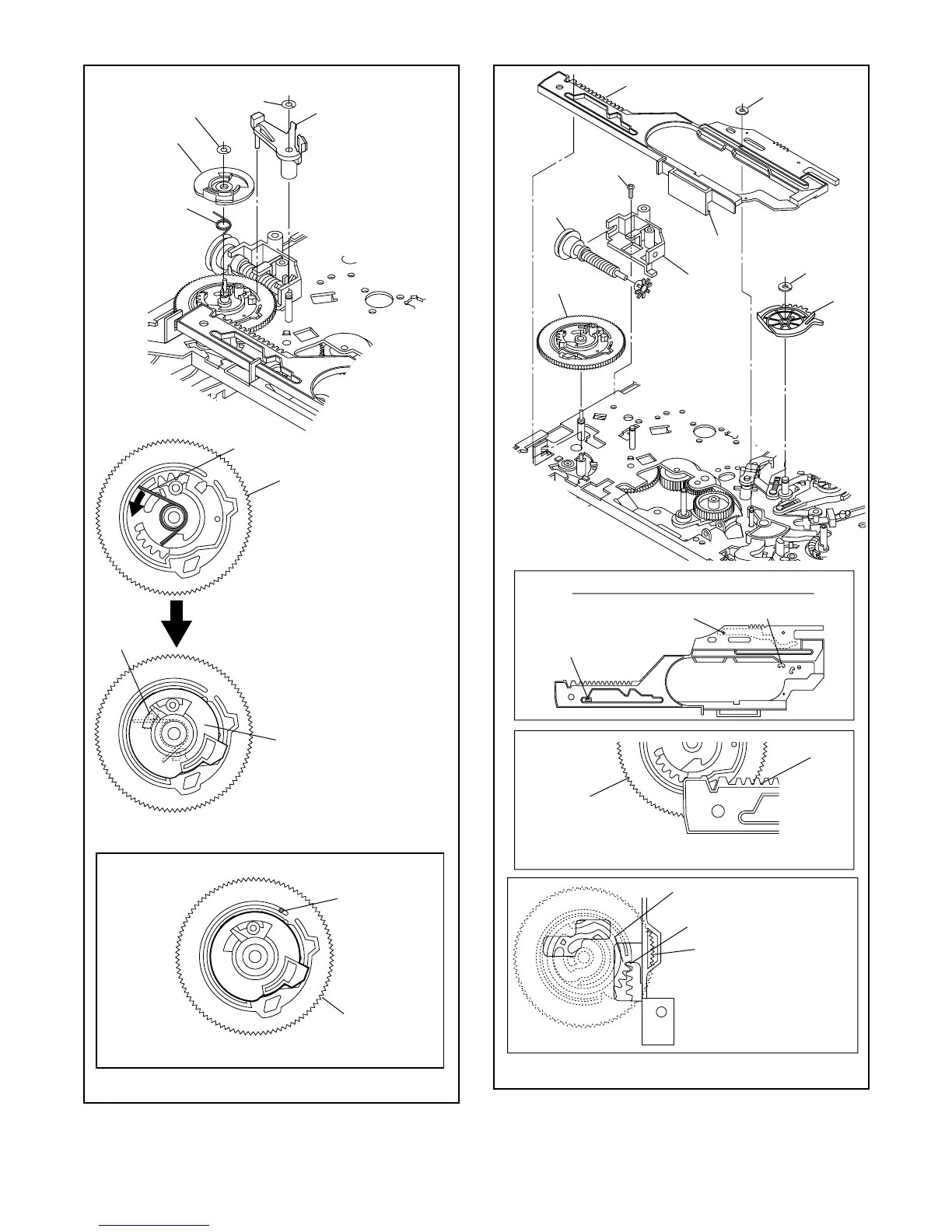

When reassembling [28],
meet the first groove on
[28] to the first tooth on
[44] as shown.
[28]
Top View
First tooth on [44]
First groove on [28]
Align [25] and [28] as shown.
Bottom View
[28]
[25]
Pin of [33]
Pin of [30]
Position of Mode Lever when installed
Pin of [34]
Fig. DM14
[23]
(P-4)
(C-3)
(P-4)
[28]
[28]
[23]
When installing [23], install
the spring (P-4) to [28] as
shown in the left figure, and
then install [23] while
pressing the spring (P-4) to
the direction of the arrow in
the left figure and confirming
that the position of the
spring (P-4) is placed as
shown in the left figure.
Pin on
bottom
of [23]
Pin on [22]
Position of pin on [22]
Top View
(C-2)
[22]
Fig. DM13
To Next Page
