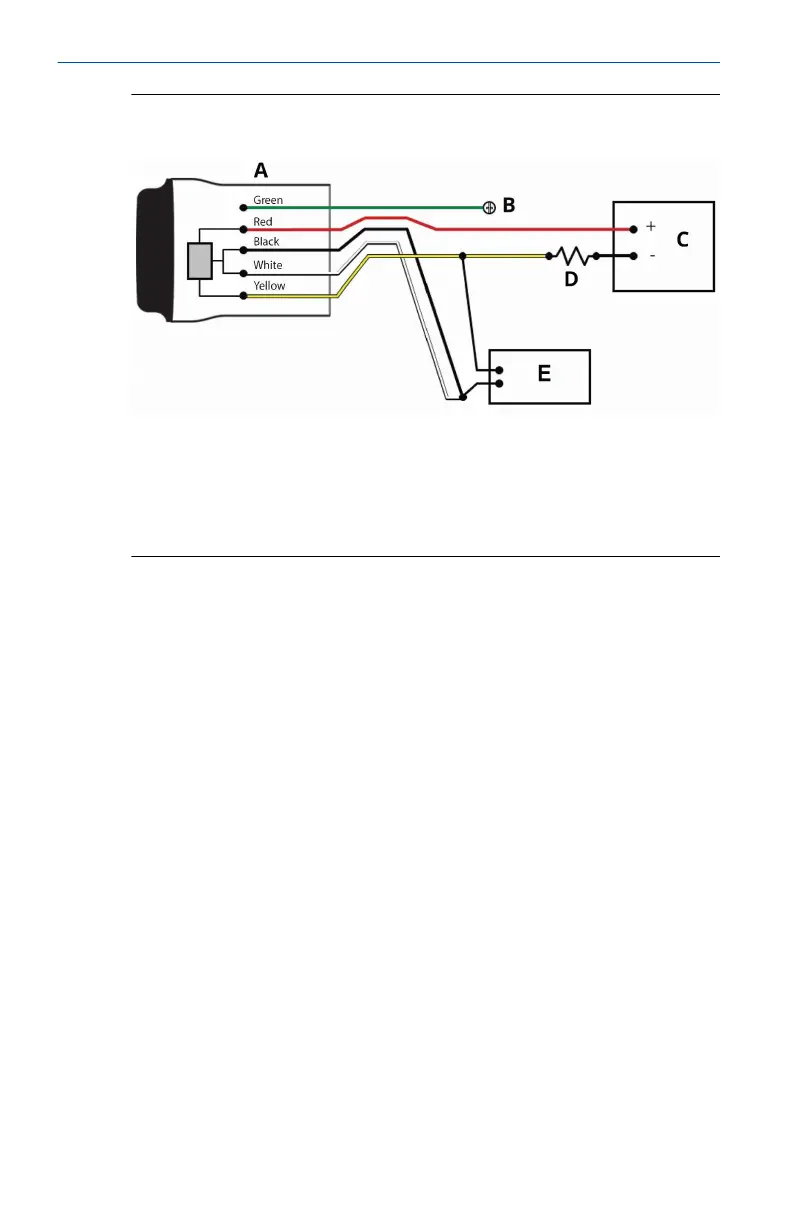

Figure 2-2: THUM Adapter only, powered by a 24 V power supply
with 1200 Ohm resistor to limit current to 20 mA
A. THUM Adapter
B. Ground
C. 24 V power supply
D. 1200 Ohm resistor
E. HART modem
