GETTING CONNECTED
E10

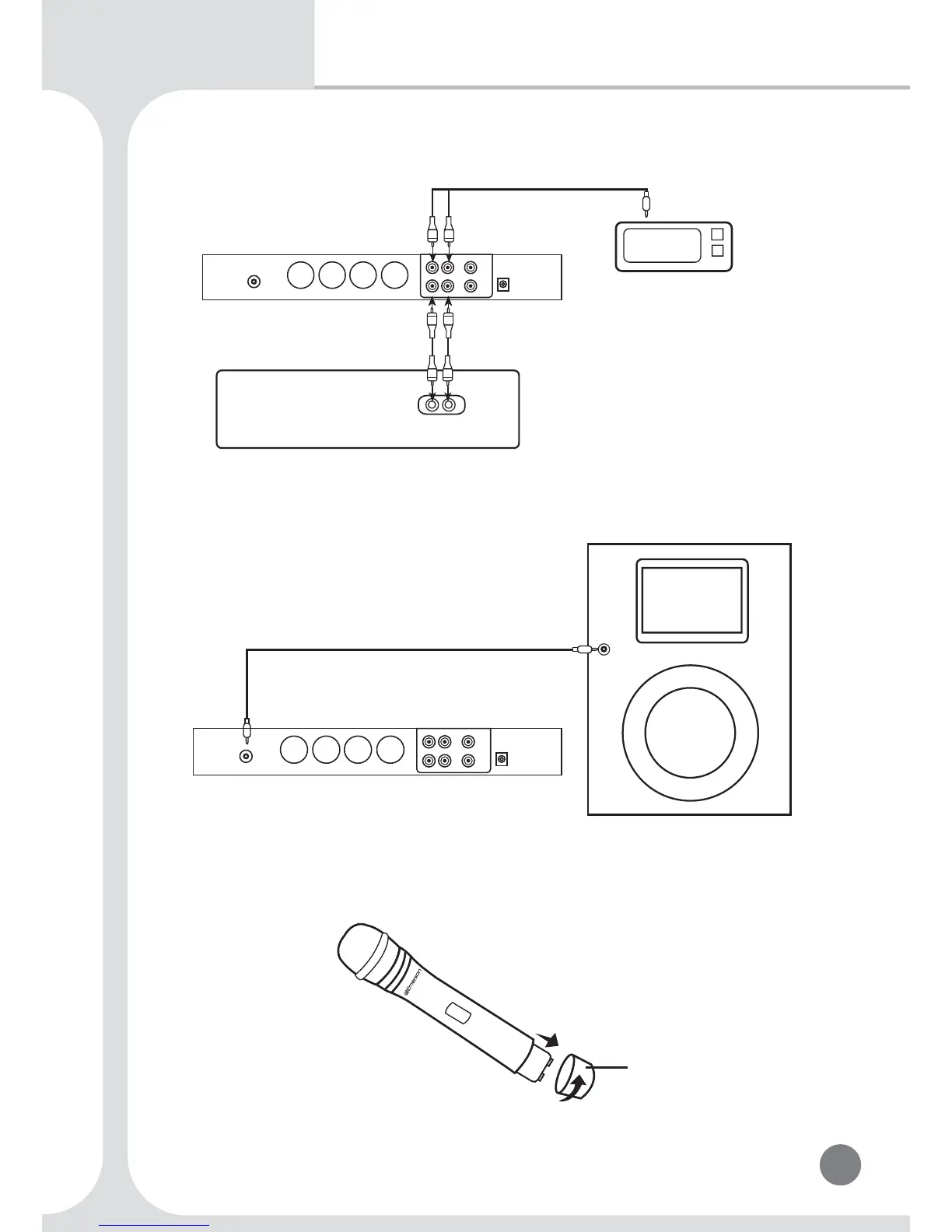

Connecting to MP3 and Stereo
Connecting to Karaoke CDG and CD player
Rear panel
R
L
RL
To Audio In
RECEIVER OR HOME STEREO
MP3 Player Cable
MP3 Player
MP3 Player 3.5 headphone Jack to WM340 IN. RCA cable out of WM340 to TV and Stereo IN.
1/4 inch Jack Plug out of back of WM340 to mic input on Karaoke Machine.
Rear panel
Karaoke CDG and CD Player
Mic Input
Microphone Battery Installation
Rotate a battery door on the bottom until open, and replace a 9v batteries.
9v Batteries
battery door
4-CHANNEL VHF PROFESSIONAL-Wireless Microphone System
WM340
MIC OUT BALANCE.D BALANCE.D BALANCE.D BALANCE.D
AUDIO R AUDIO L VIDEO
AUDIO R AUDIO L VIDEO
INPUT
FROM DVD
OUTPUT
TO TV /
STEREO
DC 12V
