E810-4V
Air Compressor
A. On/Off Switch
B. Air Tank Pressure
Gauge
C. Regulated Pressure
Gauge
D. Pressure Regulator
E. Motor Reset
F. Check Valve
G. Safety Valve
H. Air Tank Drain Valve
I. Air Outlet with Quick
Coupler
J. Pressure Switch
K. Pump Oil Dipstick
L. Site Glass
M. Pump Oil Drain Plug
N. Air Intake Filter
J
D
B
C
A
Speciļ¬cations
MODEL E810-4V
WEIGHT 56.5 lbs. (25.6 kg)
HEIGHT 16.75" (501.7 mm)
WIDTH 18.5" (469.9 mm)
LENGTH 18.0" (457.2 mm)
AIR TANK CAPACITY (GALLONS) 4.0 (15.1 liters)
APPROX CUT-IN PRESSURE
95 PSI (655 kPa)
APPROX. CUT-OUT PRESSURE
125 PSI (861.8 kPa)
SCFM @ 100 PSI (689.5 kPa) 3.8
MOTOR 1.1 HP (continuous)
Volts/Amps/Hertz 120V/14 A/60 Hz.
RPM 3400
Minumum Branch Circuit
Requirement
15 Amp
PUMP OIL CAPACITY 12 oz. (354.9 ml)
DUTY CYCLE 5 minutes ON,
5 minutes OFF
E
K
M
F
N
G

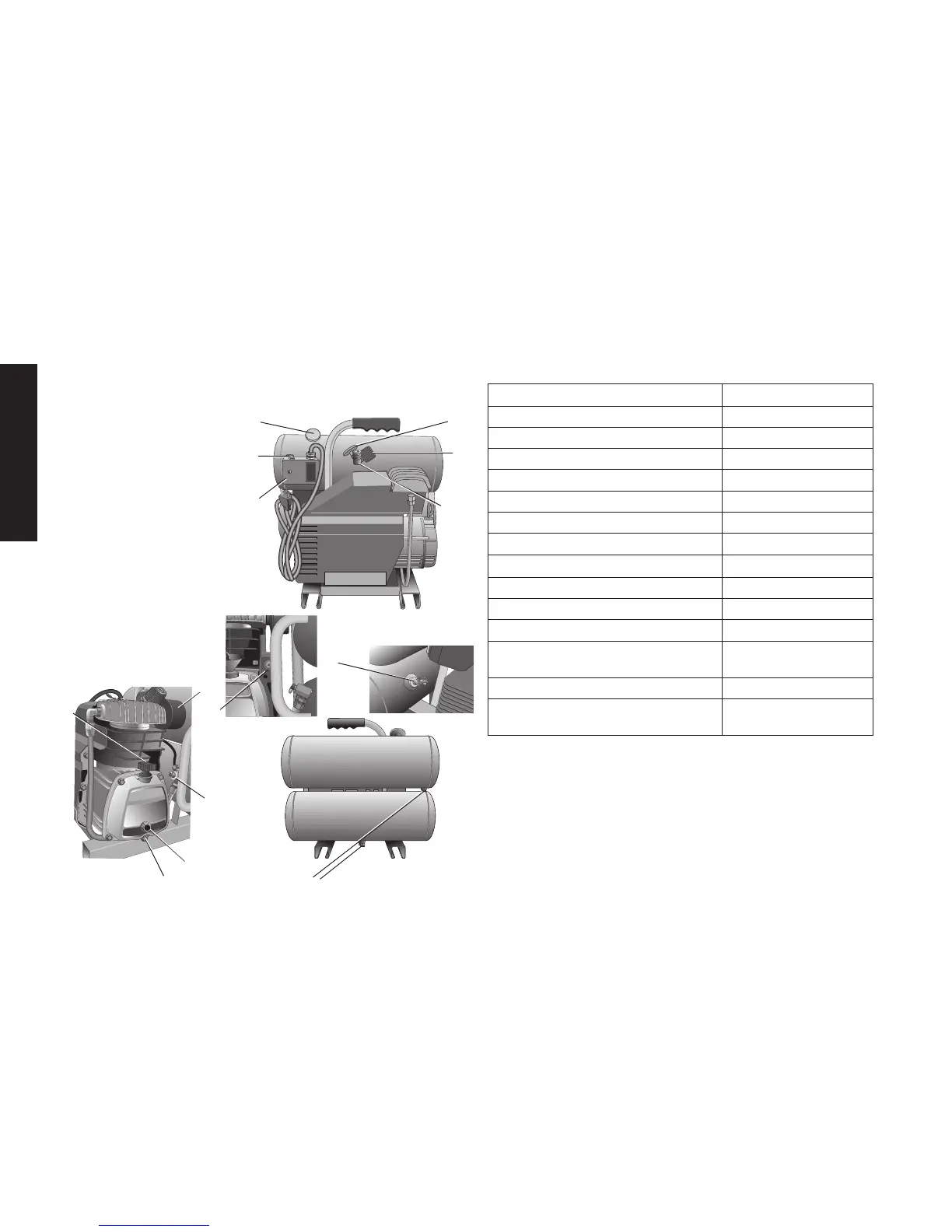

FIG. 1
H
I
L
