WLCA/WLHA High Wall Evaporator

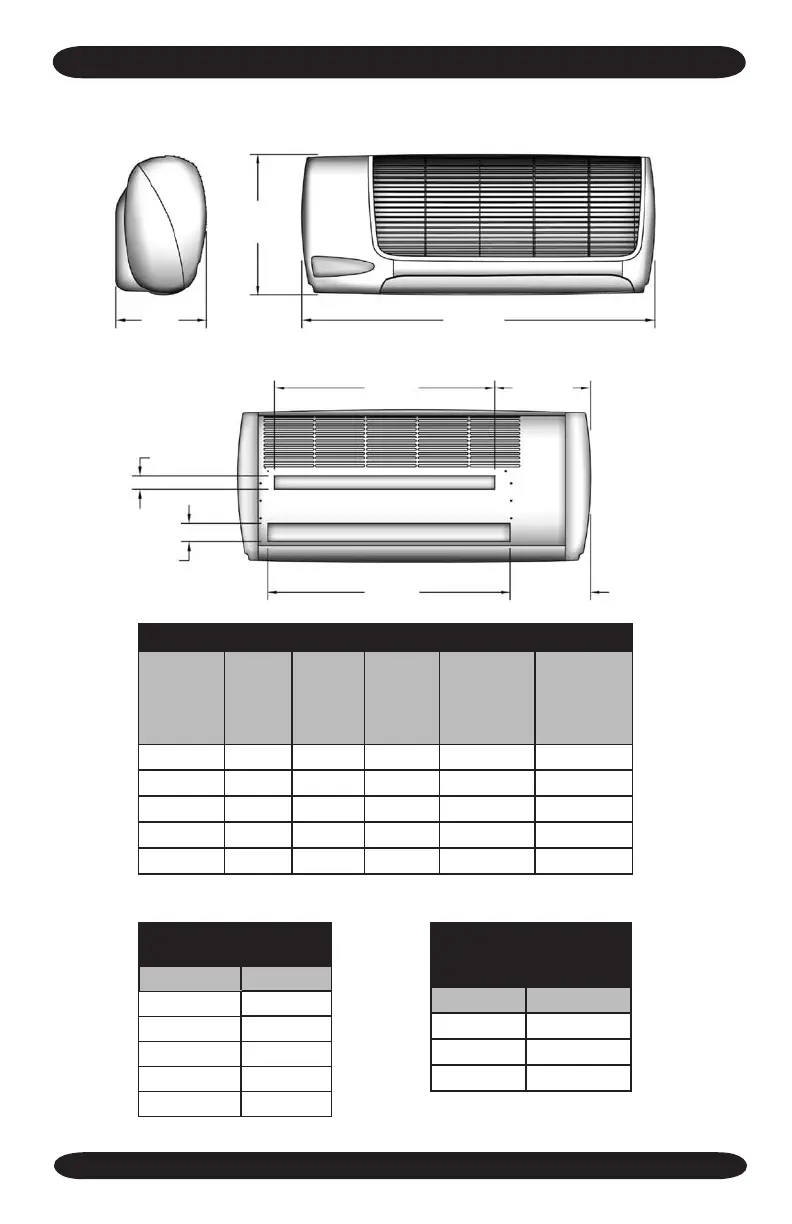

WLCA/WLHA HIGH WALL EVAPORATOR SPECIFICATIONS AND DIMENSIONS
NOTE: Due to EMI’s ongoing development programs,
design and specications may change without notice.
A
B
C
D
E
5 ¼”
1 ½”
2”
4 ⅜”
WLCA/WLHA OBSERVED
SOUND VALUES *
(230V High Speed Fan)
Model dBA
09/12 45
18/24 56
30/36 60
WLCA/WLHA PHYSICAL DIMENSIONS
Model
“A”
Depth
“B”
Height
“C”
Length
“D”
Mounting
Bracket
Clearance
“E”
Tubing
Access
Clearance
WLHA09 9 ⅞” 15 ¼” 38 ½” 24” 26 ½”
WLHA12 9 ⅞” 15 ¼” 38 ½” 24” 26 ½”
WLHA24 9 ⅞” 15 ¼” 48 ½” 34” 36 ½”
WLCA30 9 ⅞” 15 ¼” 58 ½” 44” 46 ½”
WLCA36 9 ⅞” 15 ¼” 58 ½” 44” 46 ½”
WLCA/WLHA
SHIPPING WEIGHT
Model Lbs.
WLHA09
58.00
WLHA12
60.25
WLHA24
66.20
WLCA30
90.10
WLCA36
91.10
