Assembly of the wheels

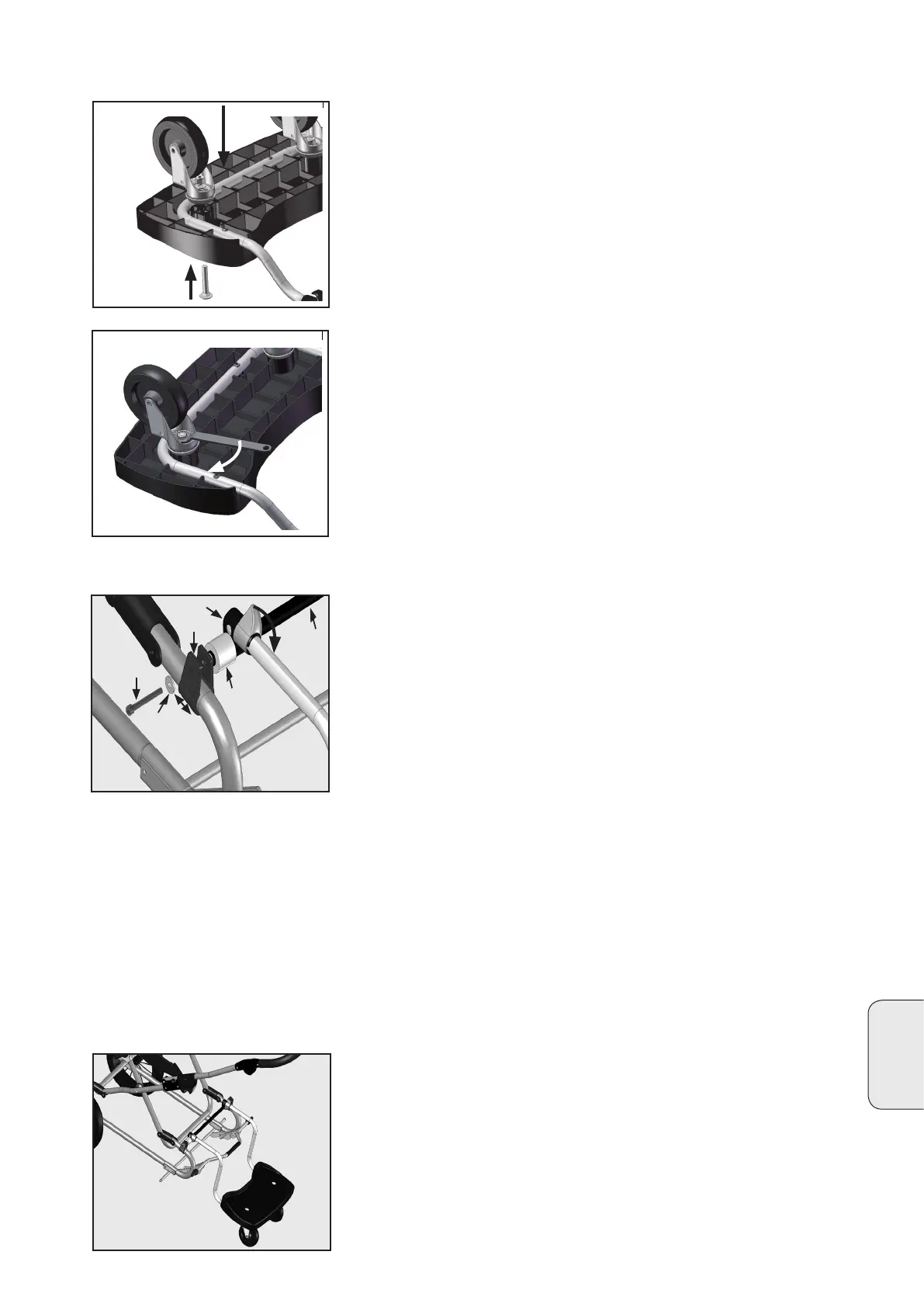

• Mount the wheel assembly on the board with the washer between the
wheel assembly and the nut.
• Use the ring spanner to tighten the nut until the upper end of the nut is
level with the end of the bolt..
WARNING!
• Make sure that this is done with both wheels.
• Check that the wheel and the nut are securely attached.
• Brake the pram.
• From below click the Adaptors connections (1) onto the u-shaped tube
on both sides of the pram.
The Adaptor connections shall be pointing up as shown in the picture.
Make sure that the square shaped hole on the Adaptor connections is
pointing outwards on the pram.
• Place the Adaptor (2) between the Adaptor connections. Use the two
M5 bolts (3) and M5 washers (4) and tighten the Adaptor using the al-
len key.
IMPORTANT!
• Tighten the bolts until it´s impossible to slide the Adaptor connecntions
along the tube (5).
• Place the Toddler connections (6) over the Adaptor and fasten both
locks down (7).
• Make sure that the Spacers (8) are placed between the Adaptor con-
nections and the Toddler connections on both sides.
VARNING!
• These steps are verty important for securing the Toddler roller to the
pram.
• Always check that the Toddler roller is correctly attached before use.
• Never remove or attach the Toddler roller from the Adaptor when a
child is on the roller.
• När du monterar eller tar loss åkbrädan från vagnfästet får inga barn
benna sig på åkbrädan.
• Always check that the Toddler roller doesn´t affect the brake system on
the pram.
Remove the Toddler roller from the Adaptor
• Open the locks and remove the Toddler Roller from the Adaptor.
Properly attached Toddler roller to Classic/Smart chassis.
